Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

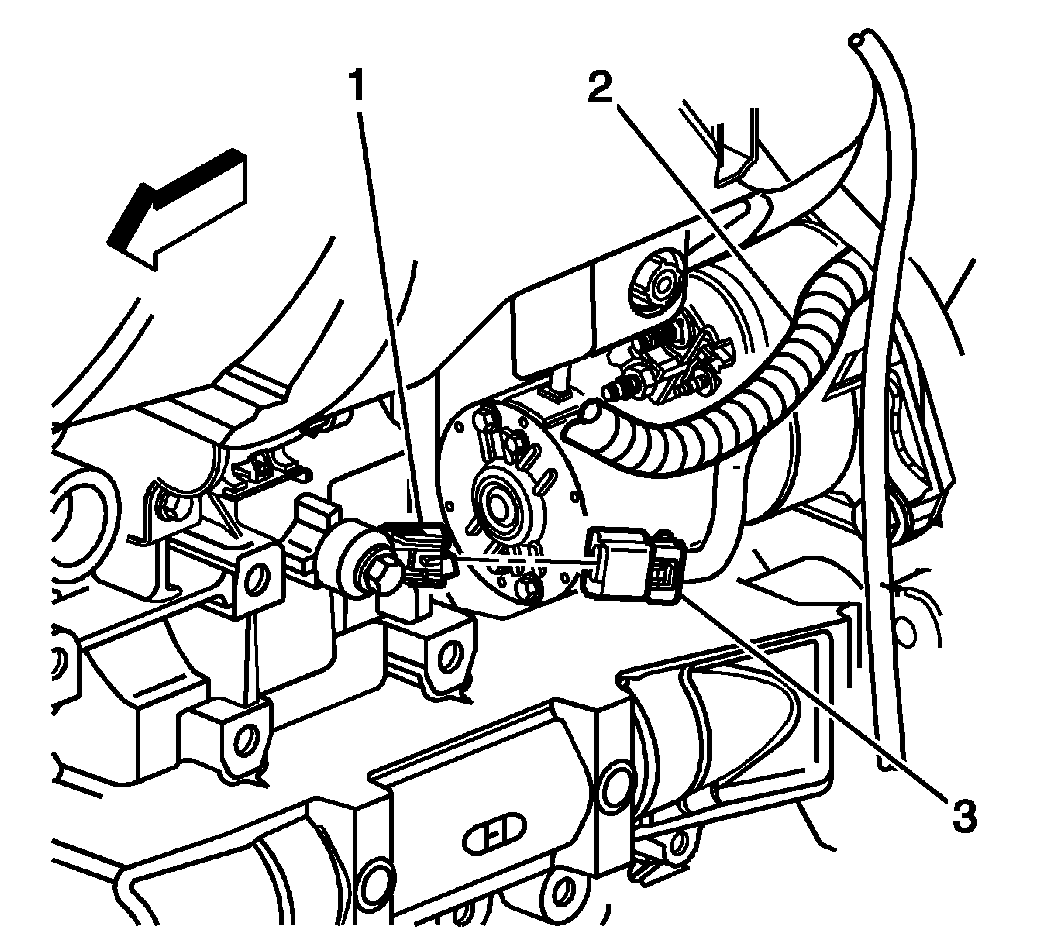

    Fig 1: View Of KS Engine Wiring Harness Connector
    GM1352023Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the KS (1) and the retaining bolt to the engine block, positioning the electrical terminals rearward.

    Tighten:  Tighten the KS bolt to 25 N.m (18 lb ft).

  2. Connect the engine wiring harness electrical connector (3) to the KS (1).
  3. Install the left wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  4. Lower the vehicle.
