Removal Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

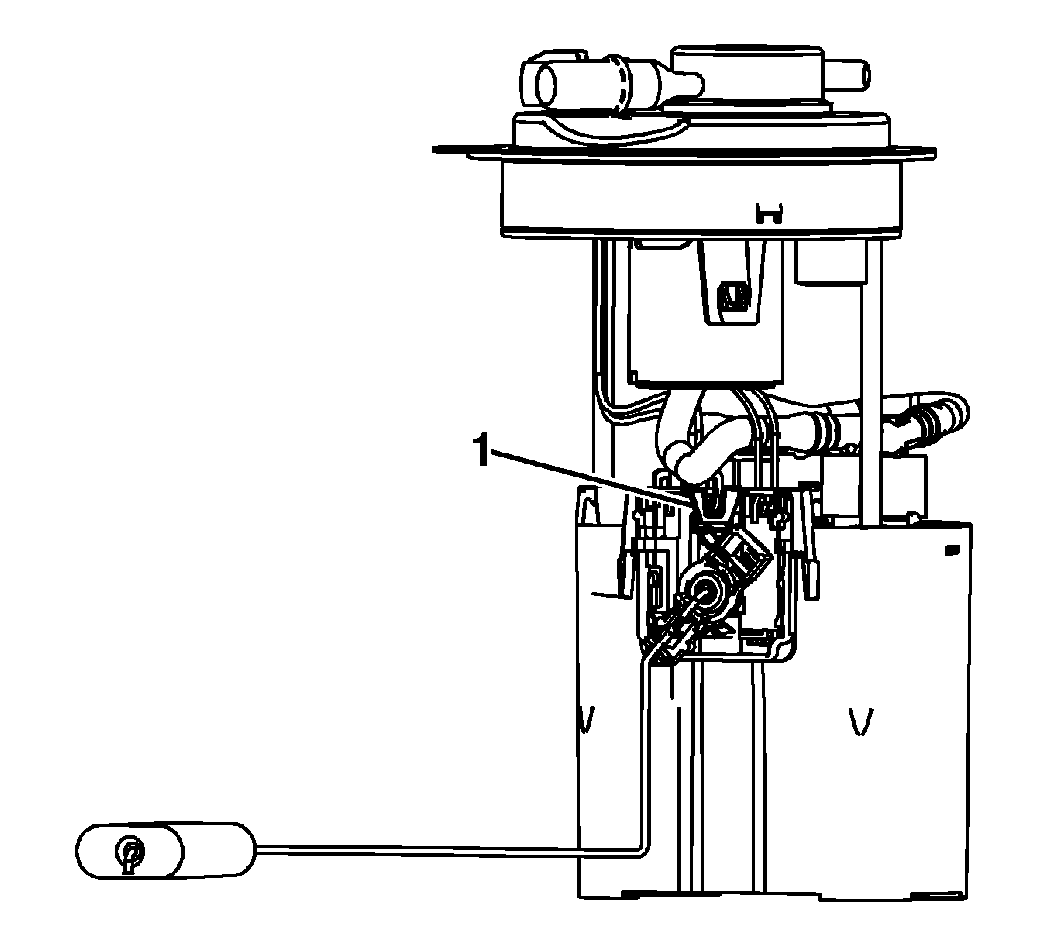

    Fig 1: View Of Fuel Tank Module
    GM1766564Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel tank module. Refer to Fuel Tank Module Replacement .
  2. Disconnect the fuel level sensor electrical connector from the module cover.
  3. Disengage the locking tab (1) on the module bucket.
  4. Slide the fuel level sensor downward off from the module bucket.
