Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

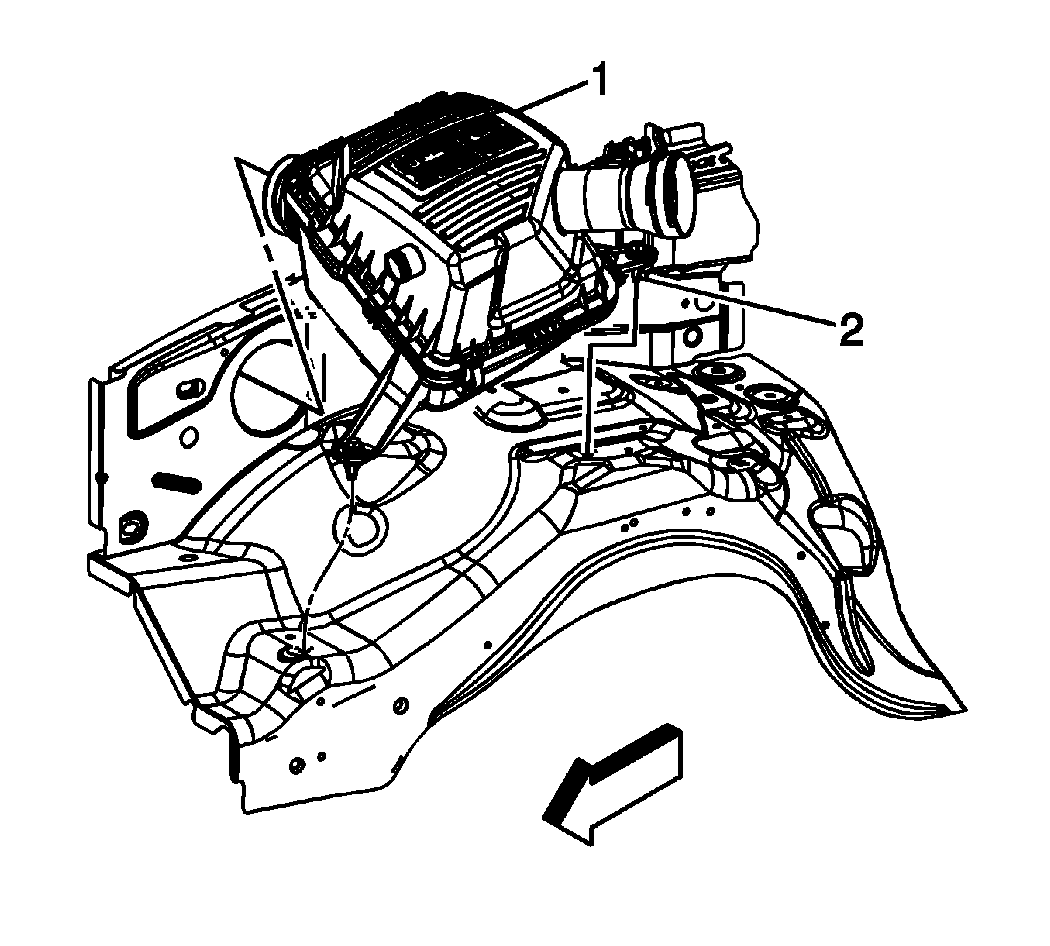

    Fig 1: Air Cleaner Assembly
    GM1969156Courtesy of GENERAL MOTORS CORP.
  1. Place the air cleaner assembly (1) into the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the air cleaner bolts (2).

    Tighten:  Tighten the bolts to 15 N.m (11 lb ft).

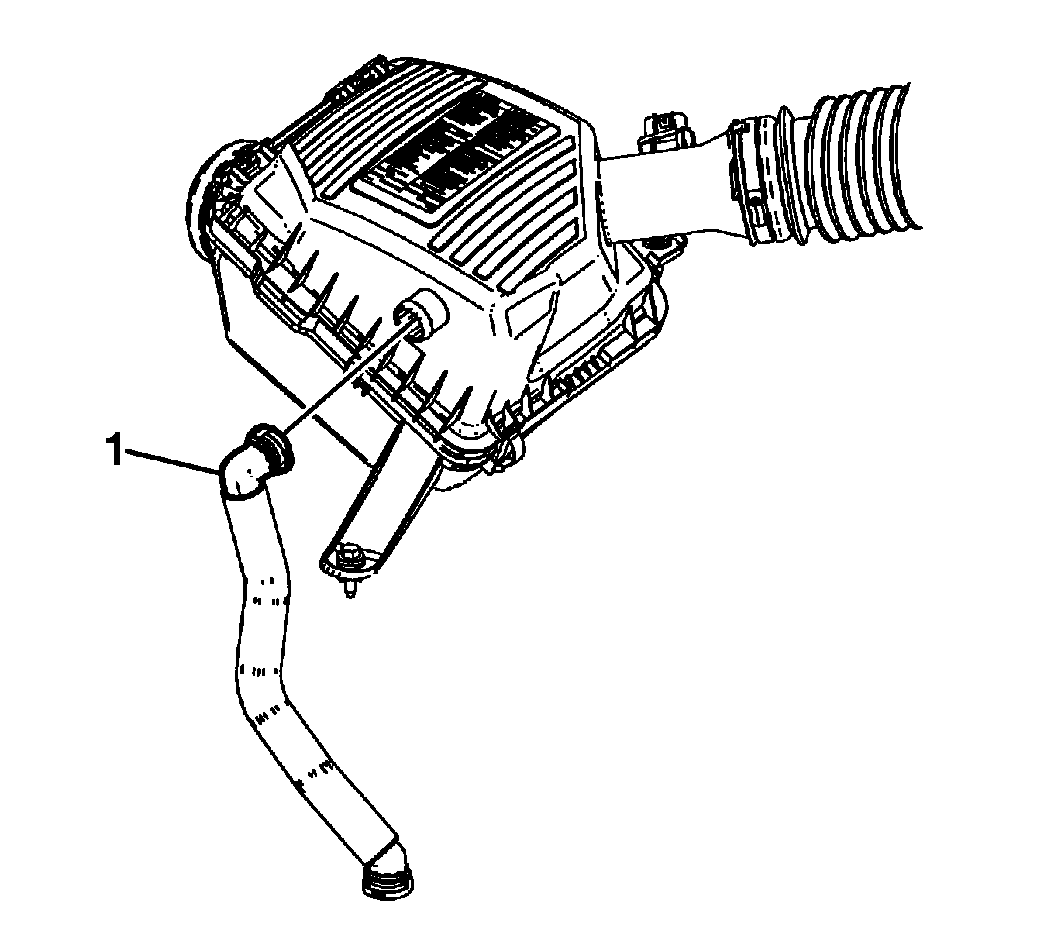

    3. Fig 2: Secondary Air Injection (AIR) Pump Inlet Hose
    GM1969060Courtesy of GENERAL MOTORS CORP.
  3. Connect the AIR pump inlet hose (1) quick connect fitting to the air cleaner assembly. Refer to Plastic Collar Quick Connect Fitting Service .

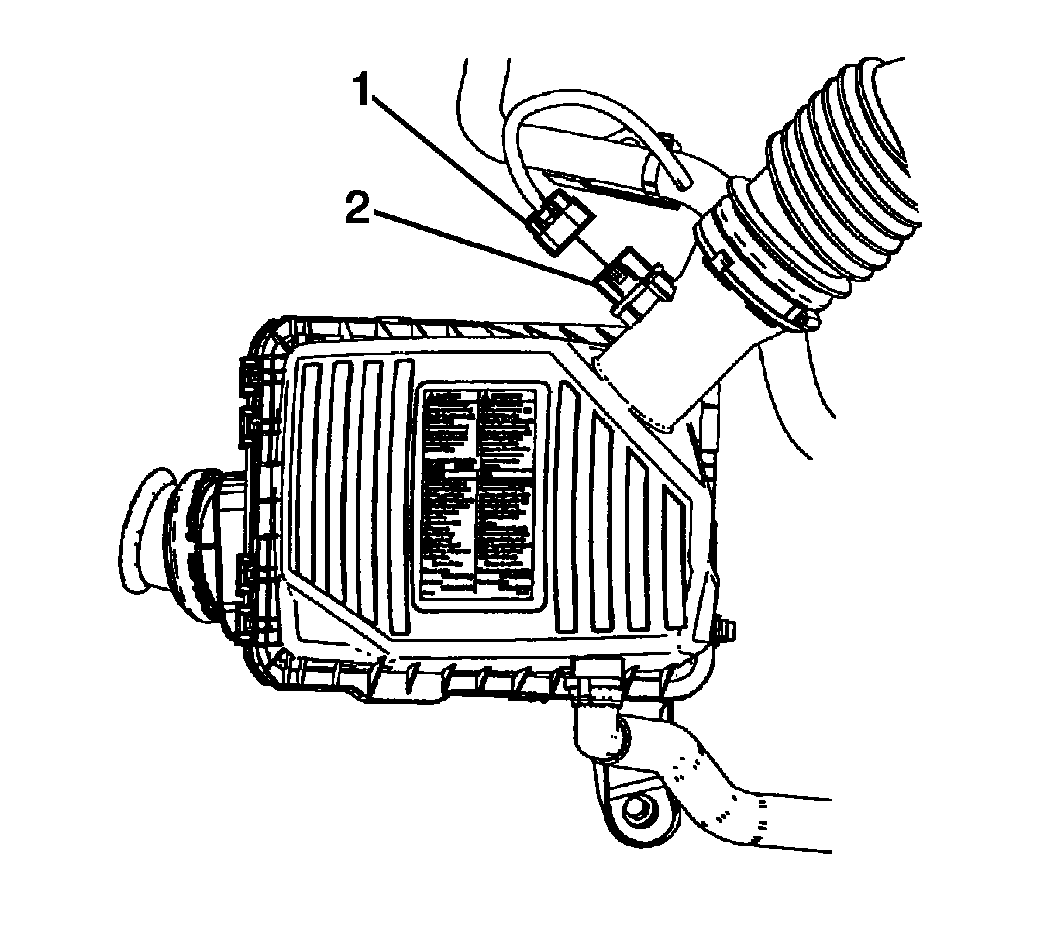

    4. Fig 3: Engine Wiring Harness Electrical Connector And Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor
    GM1969052Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor (2).
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
