Trailer Connector/Provision Schematics

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

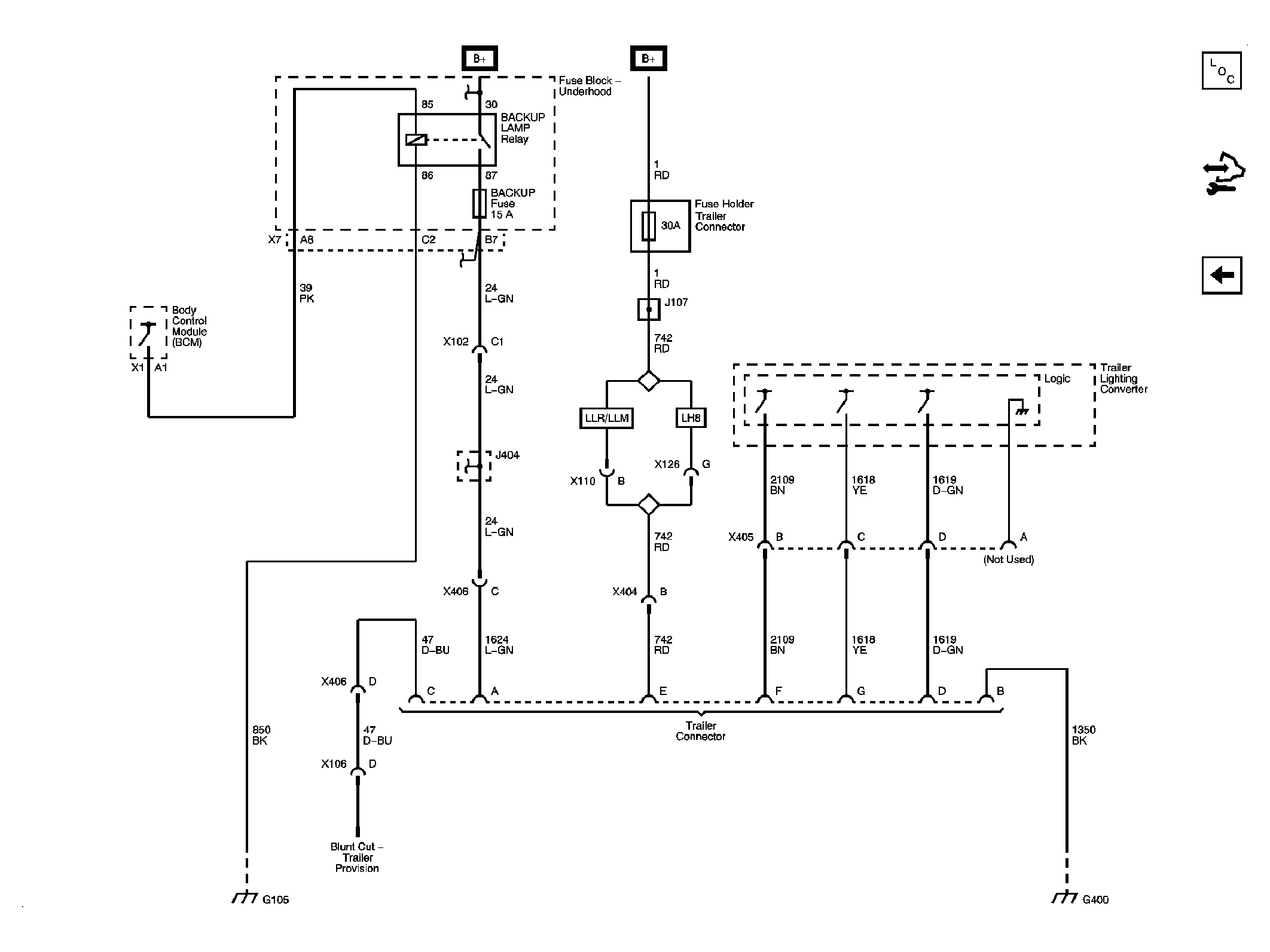

Fig 1: Trailer Wiring with UY7 - 2 of 2
GM2082976Courtesy of GENERAL MOTORS CORP.

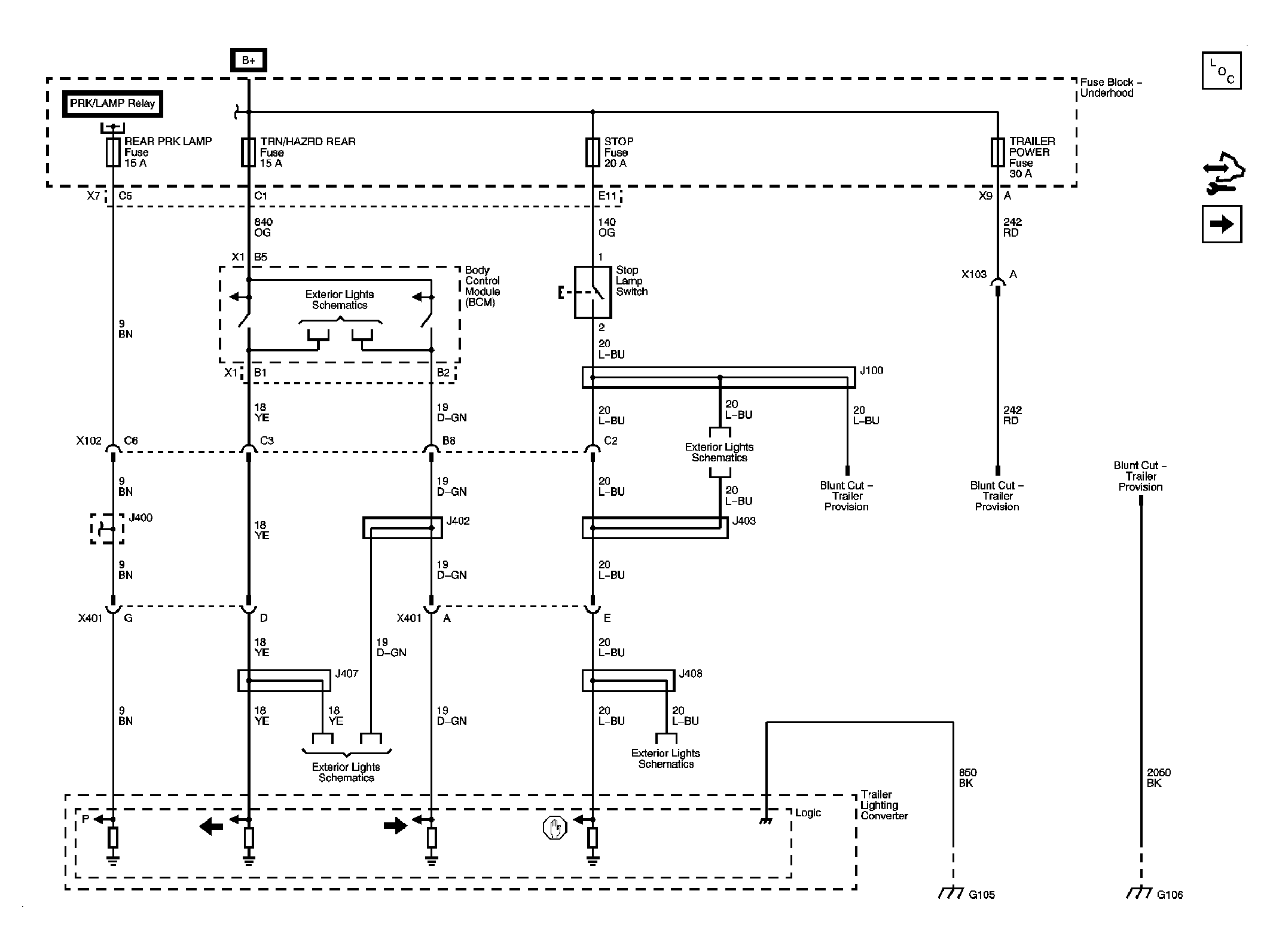

Fig 2: Trailer Wiring with UY7 - 1 of 2
GM2082974Courtesy of GENERAL MOTORS CORP.
