Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

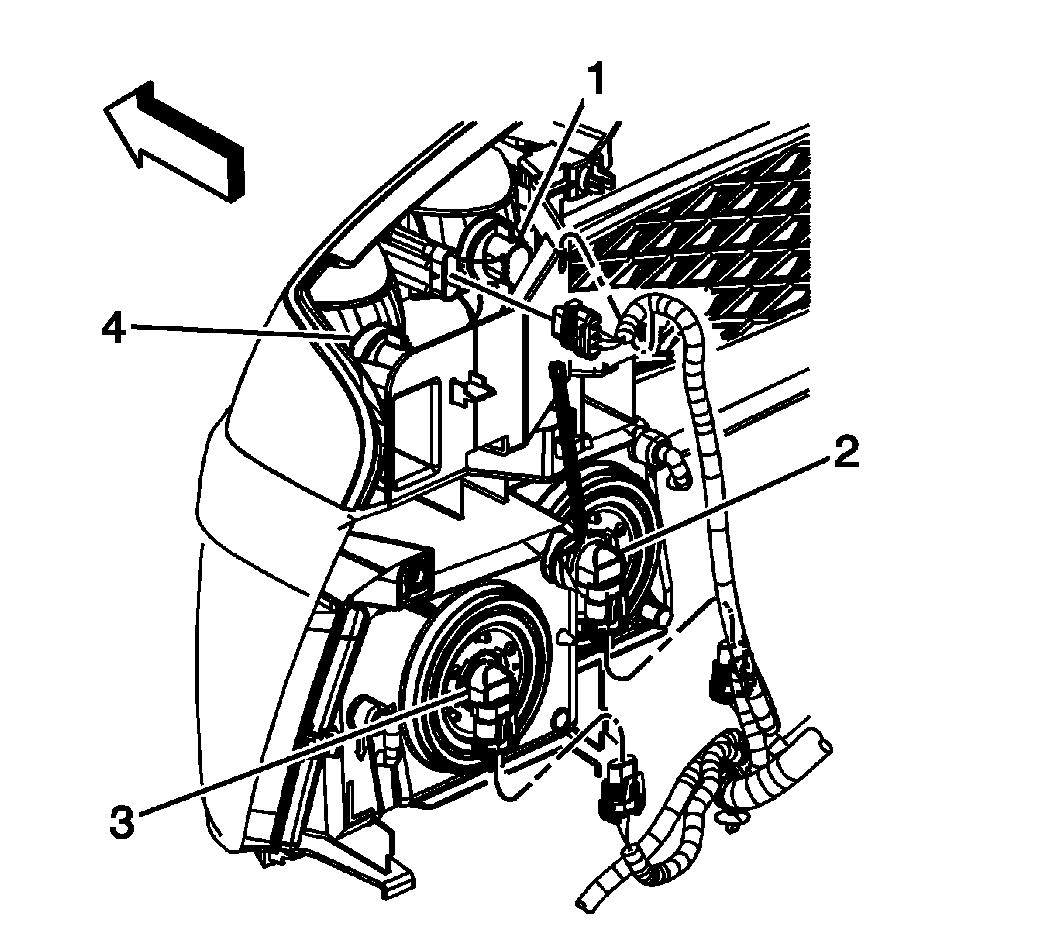

    Fig 1: View Of Park Lamp, High Beam Headlamp, Low Beam Headlamp, & Front Side Marker Bulb
    GM1386214Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the bulb.
  2. Push in and rotate the park lamp (1), high beam headlamp (2), low beam headlamp (3), or the DRL, Park and turn signal, and front side marker bulb 1/4 turn clockwise in order to install the bulb.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the bolts that retain the headlamp.

    Tighten:  Tighten the bolts to 10 N.m (89 in lb).

  4. Inspect the headlamps for proper operation.
  5. Install the front grille. Refer to Grille Replacement .
  6. Aim the headlamps. Refer to Headlamp Aiming .
