Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

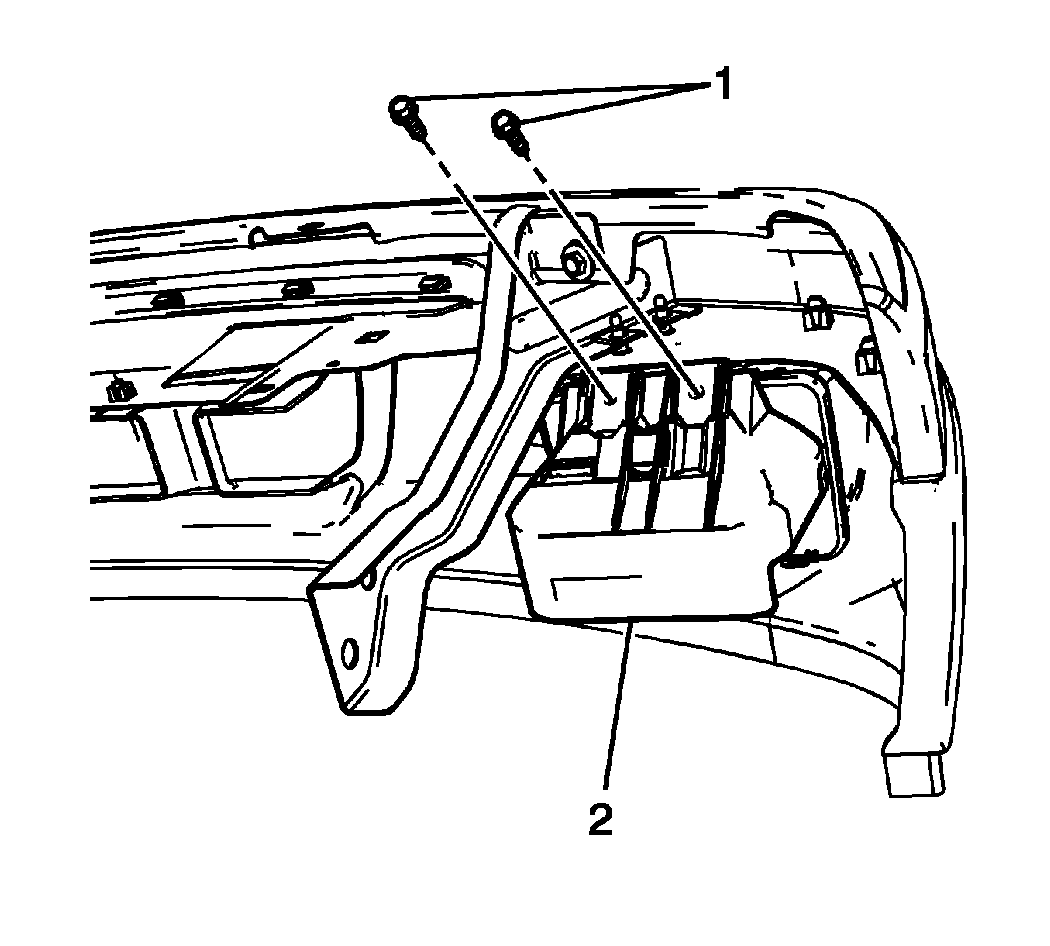

    Fig 1: View Of Fog Lamp & Bolts
    GM1386386Courtesy of GENERAL MOTORS CORP.
  1. Position the fog lamp (2) to the fascia.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the fog lamp to fascia bolts (1).

    Tighten:  Tighten the bolts to 2.5 N.m (22 lb in).

  3. Install the fog lamp bulb and socket.
