Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

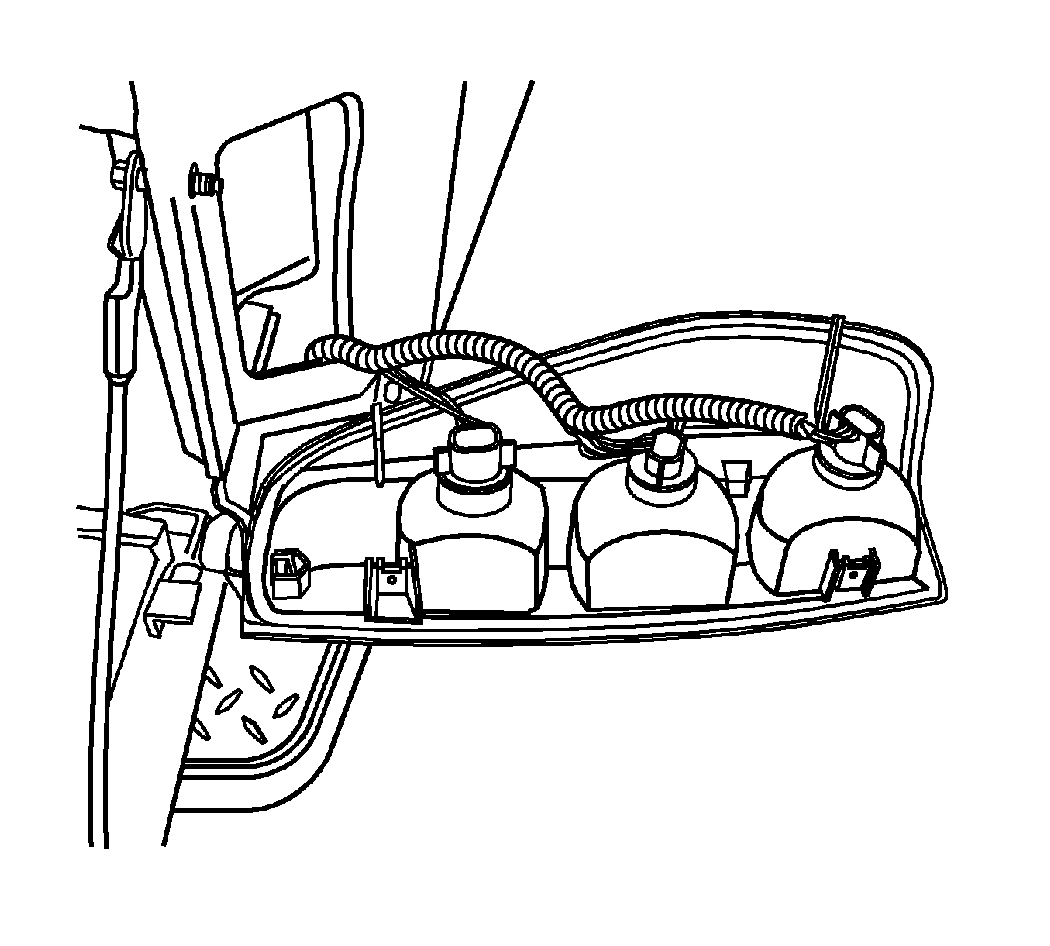

Fig 1: View Of Tail Lamp Assembly

Courtesy of GENERAL MOTORS CORP.

Install the bulbs to the backup lamp sockets.
Install the backup lamp rotating clockwise until the locking tab is fully seated.

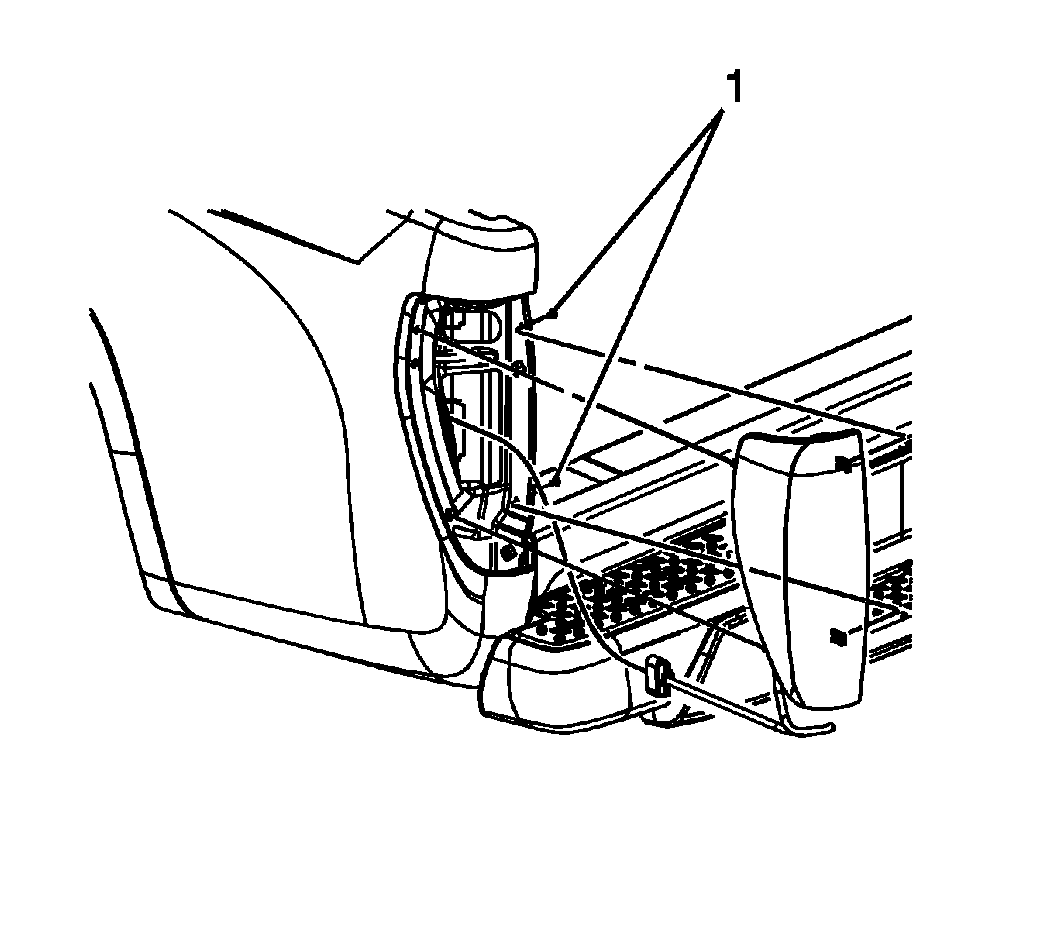

Fig 2: View Of Tail Lamp Screws

Courtesy of GENERAL MOTORS CORP.

Press the tail lamp to the rear body panel until fully seated.

CAUTION: Refer to Fastener Caution .

Install the tail lamp screws (1) to the tail lamp.
Tighten: Tighten the tail lamp screws (1) to 3 N.m (26 lb in).
Close the tailgate.
