Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the left front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the left front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement (Left) or Front Wheel Drive Shaft Replacement (Right) .
    4. Fig 1: View Of Wheel Drive Shaft O-Ring & Retaining Ring
    GM908032Courtesy of GENERAL MOTORS CORP.
  4. Remove and discard the intermediate wheel drive shaft retaining ring (2). The intermediate wheel drive shaft retaining ring is on the splined end of the shaft.
  5. Remove and discard the intermediate wheel drive shaft O-ring (1). The O-ring is on the splined end of the shaft.
    6. Fig 2: View Of Intermediate Shaft Bearing Assembly
    GM908025Courtesy of GENERAL MOTORS CORP.
  6. Remove the intermediate shaft bearing assembly mounting bolts.

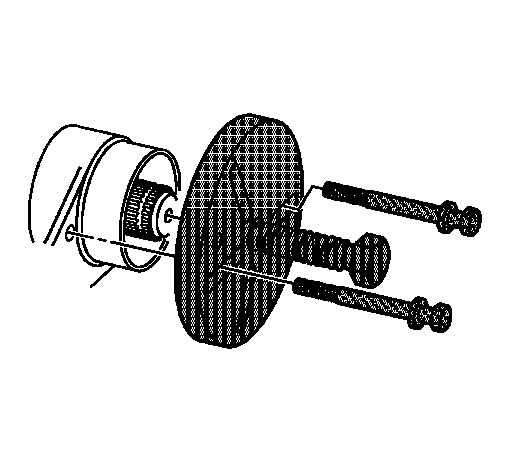

    7. Fig 3: View Of J 45019
    GM954545Courtesy of GENERAL MOTORS CORP.
  7. Install J 45019  into the threaded holes in the intermediate shaft bearing assembly.
  8. Remove the intermediate shaft bearing assembly from the intermediate wheel drive shaft.
  9. Remove J 45019  from the intermediate shaft bearing housing.
    10. Fig 4: View Of Intermediate Shaft Bearing Housing, Shaft Bearing & Snap Ring
    GM908027Courtesy of GENERAL MOTORS CORP.
  10. Remove the snap ring (1) from the intermediate shaft bearing housing (3).
  11. Using hammer and brass drift carefully separate the intermediate shaft bearing (2) from the intermediate shaft bearing housing (3).
  12. Thoroughly clean the intermediate shaft bearing housing using denatured alcohol or equivalent and allow to dry.
  13. Inspect the intermediate shaft bearing housing for damage, if damaged replace the intermediate shaft bearing housing.
