Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Install the radiator.
Connect the upper air baffle retaining pins to the radiator.
Install the radiator support brackets.

Fig 1: View Of Radiator Support Brackets

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the radiator support bracket bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).

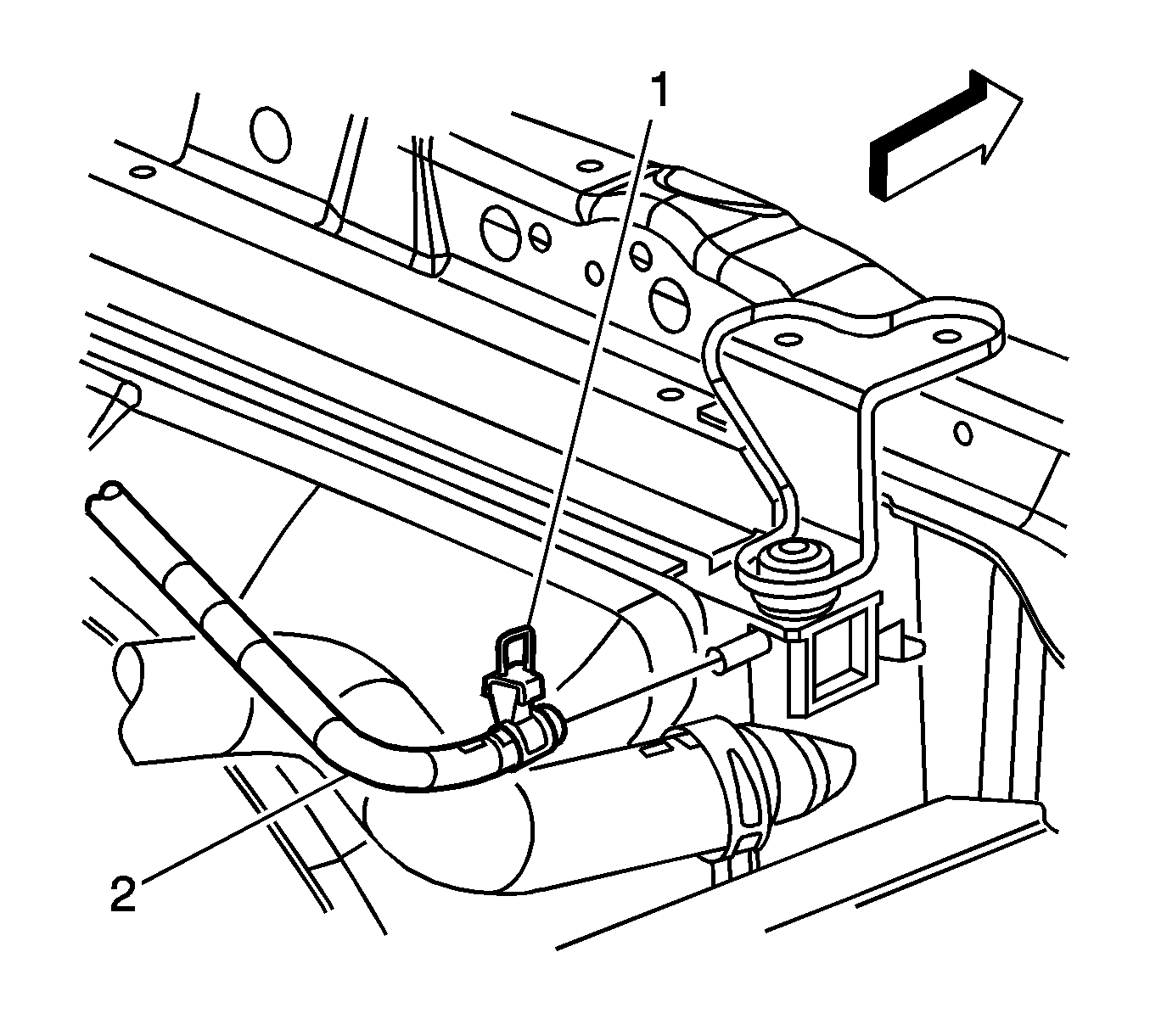

Fig 2: Identifying Surge Tank Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Connect the surge tank inlet hose to the radiator. Use J 38185 to position the surge tank inlet hose clamp to secure the hose. See Special Tools .

Fig 3: View Of Radiator Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Connect the radiator inlet hose to the radiator. Use J 38185 to position the radiator inlet hose clamp to secure the hose. See Special Tools .

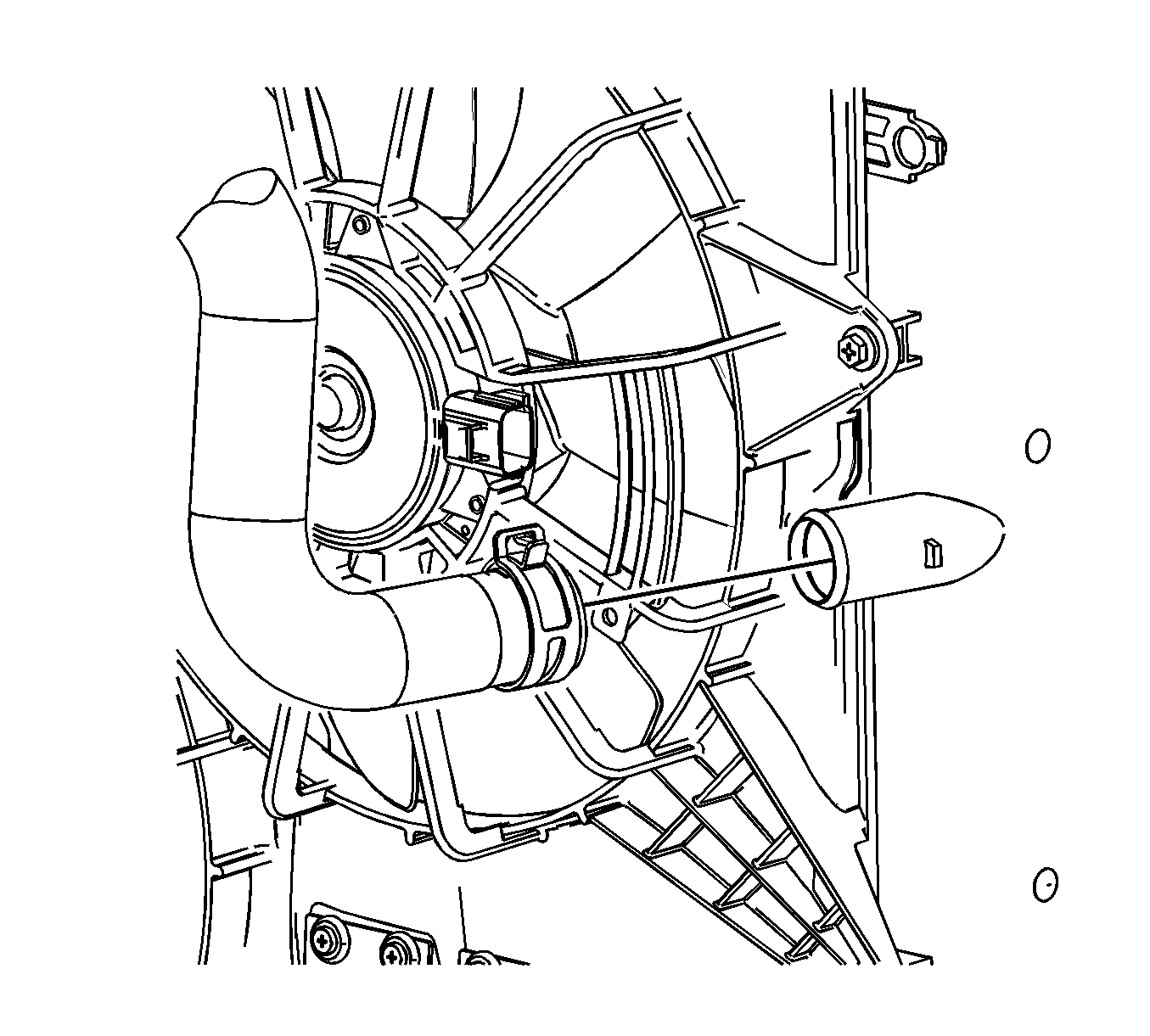

Fig 4: Identifying Radiator Outlet Hose

Courtesy of GENERAL MOTORS CORP.

Connect the radiator outlet hose to the radiator. Use J 38185 to position the radiator outlet hose clamp to secure the hose. See Special Tools .
Raise and support the vehicle.
Install the TOC mounting bolts.
Tighten: Tighten the bolts to 5 N.m (44 lb in).

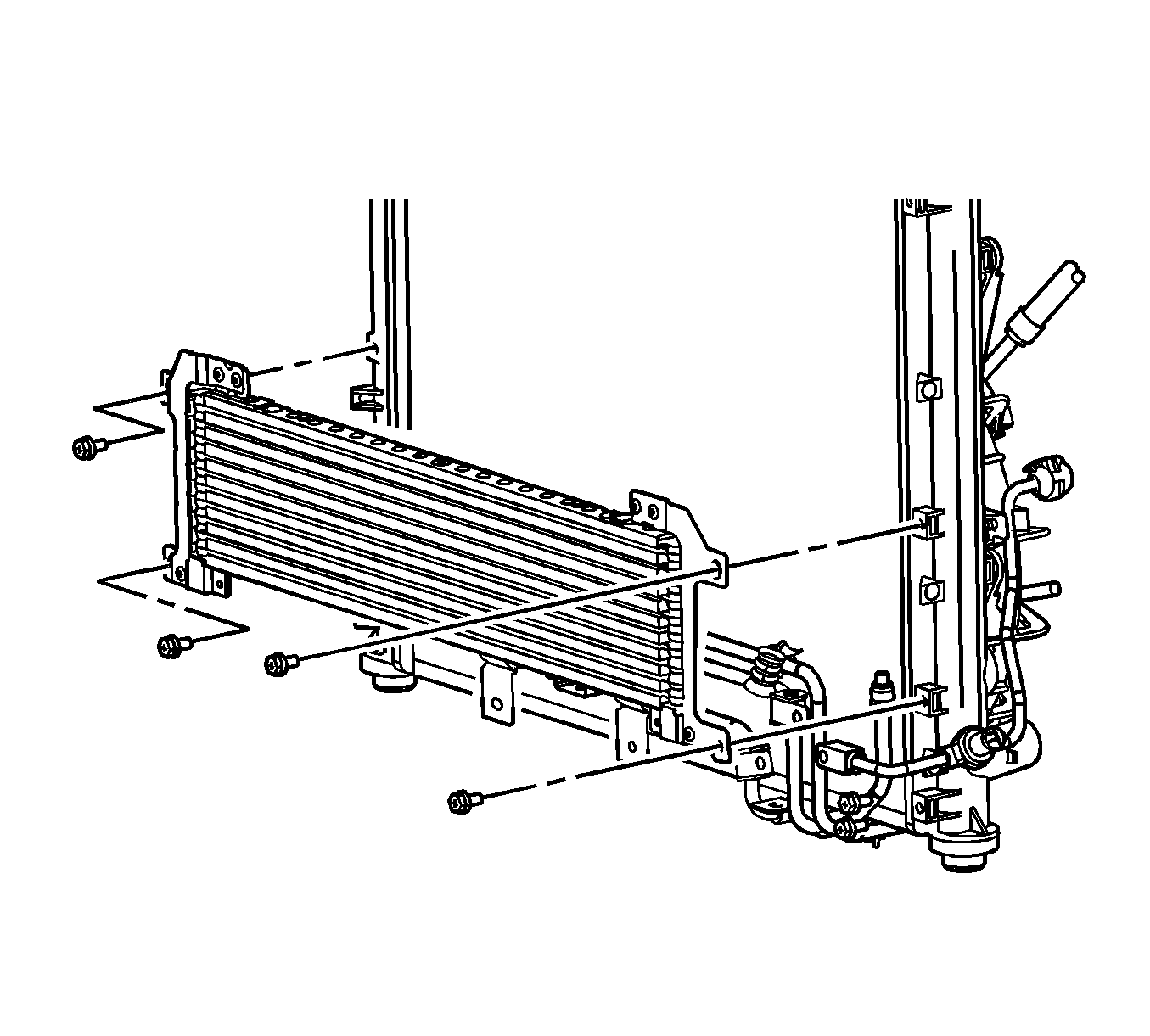

Fig 5: View Of Transmission Oil Cooler (TOC) Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Connect the lower retaining pins of the side air baffle to the radiator.

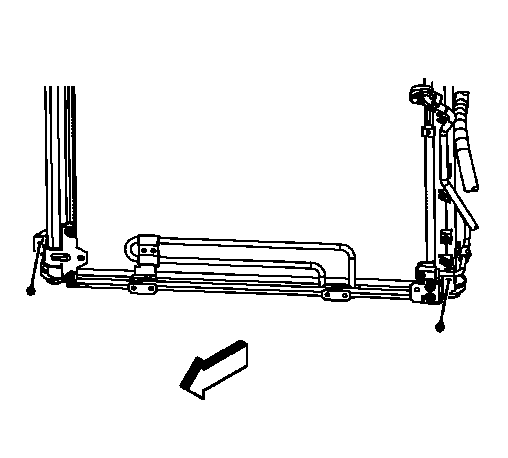

Fig 6: View Of Lower Condenser Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Install the lower condenser mounting bolts.
Tighten: Tighten the bolts to 5.4 N.m (48 lb in).

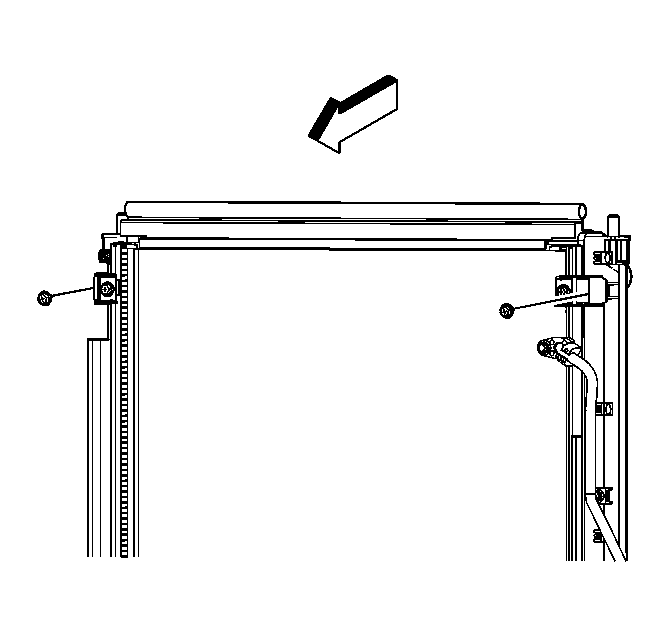

Fig 7: View Of Upper Condenser Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Install the upper condenser mounting bolts.
Tighten: Tighten the bolts to 5.4 N.m (48 lb in).
Install the electric cooling fan. Refer to Engine Cooling Fan Replacement .
Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (GE 47716) .
