Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

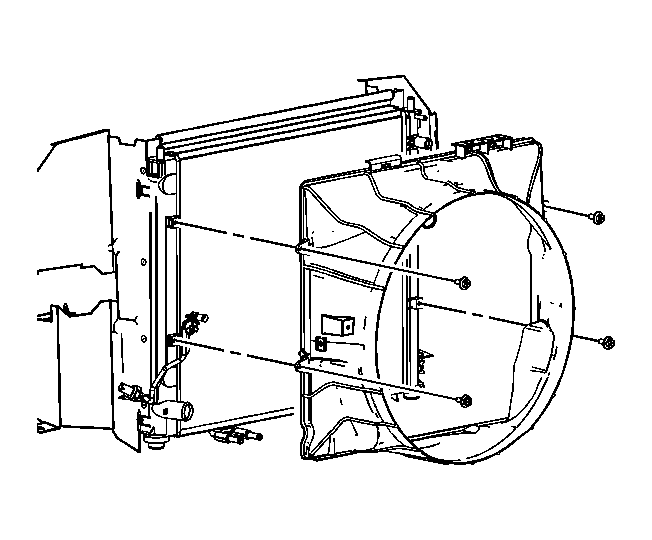

    Fig 1: View Of Fan Shroud
    GM1372876Courtesy of GENERAL MOTORS CORP.
  1. Install the cooling fan shroud.
    2. NOTE: Refer to Fastener Notice .
  2. Install the cooling fan shroud retaining bolts.

    Tighten:  Tighten the bolts to 5.4 N.m (48 lb in).

  3. Connect the condenser tube to the fan shroud retainer clip.
  4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  5. Install the fan. Refer to Fan Replacement (LH2)  or Fan Replacement (LY7) .
