Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

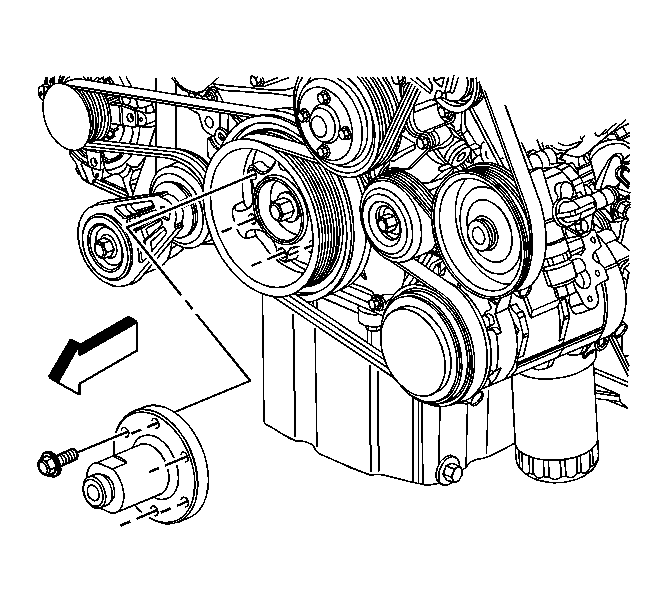

    Fig 1: Cooling Fan Adapter
    GM887759Courtesy of GENERAL MOTORS CORP.
  1. Install the cooling fan adapter to the vehicle.
  2. Hold the cooling fan adapter from turning by placing a wrench on the adapter flat spots.
    3. NOTE: Refer to Fastener Notice .
  3. Install the cooling fan adapter bolts.

    Tighten:  Tighten the cooling fan adapter bolts to 24 N.m (18 lb ft).

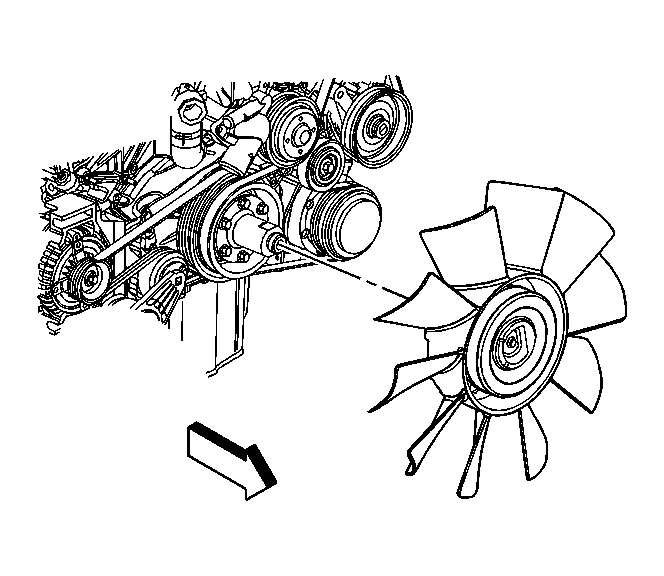

    4. Fig 2: Cooling Fan
    GM887758Courtesy of GENERAL MOTORS CORP.
  4. Install the cooling fan. Refer to Engine Cooling Fan Replacement .
