Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the Front Air Deflector Replacement. Refer to Front Air Deflector Replacement .
    3. Fig 1: View Of Engine Oil Cooler Hose/Pipe
    GM1739056Courtesy of GENERAL MOTORS CORP.
  3. Install oil drain pan under the vehicle.
  4. Remove the engine oil cooler hose/pipe from the external oil cooler. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .

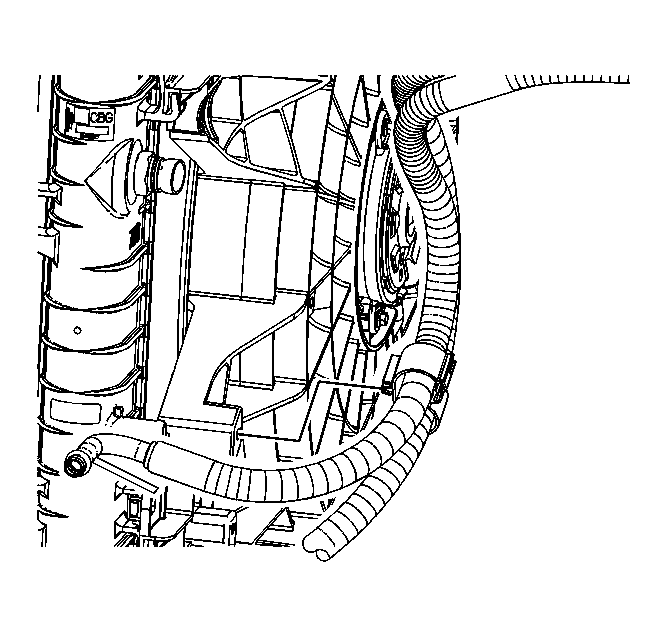

    5. Fig 2: View Of Engine Oil Cooler Hose/Pipe & Clip
    GM1739057Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the engine oil cooler hose/pipe clip from the fan shroud.

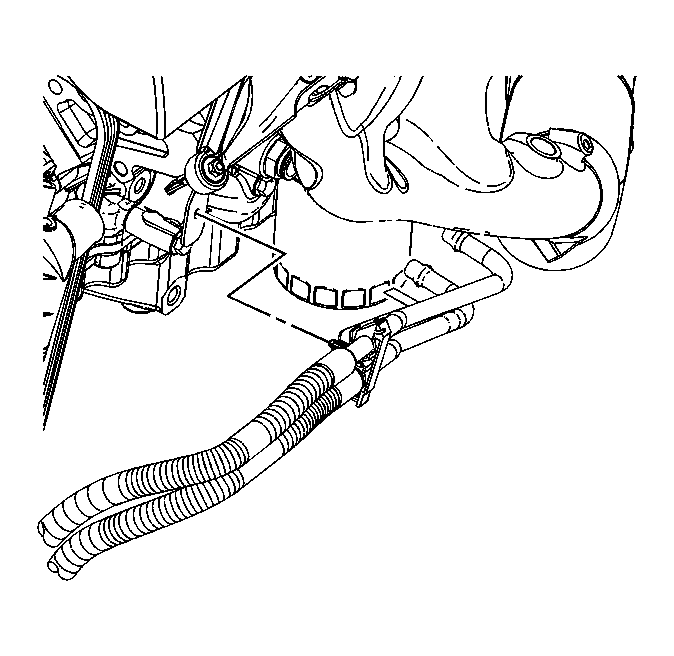

    6. Fig 3: View Of Engine Oil Cooler Hoses & Pipes
    GM1739054Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the engine oil cooler hose/pipe clip from the engine.

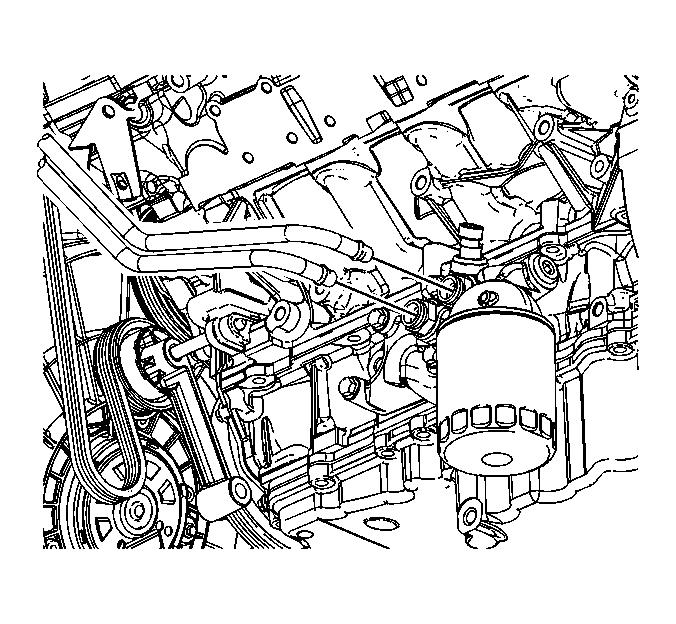

    7. Fig 4: View Of External Engine Oil Cooler Hose/Pipe
    GM1739055Courtesy of GENERAL MOTORS CORP.
  7. Remove the external engine oil cooler hose/pipe from the engine. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
  8. Remove the external engine oil cooler hose/pipe from the vehicle.
  9. Remove and discard all engine oil cooler hose/pipe seals.
