Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

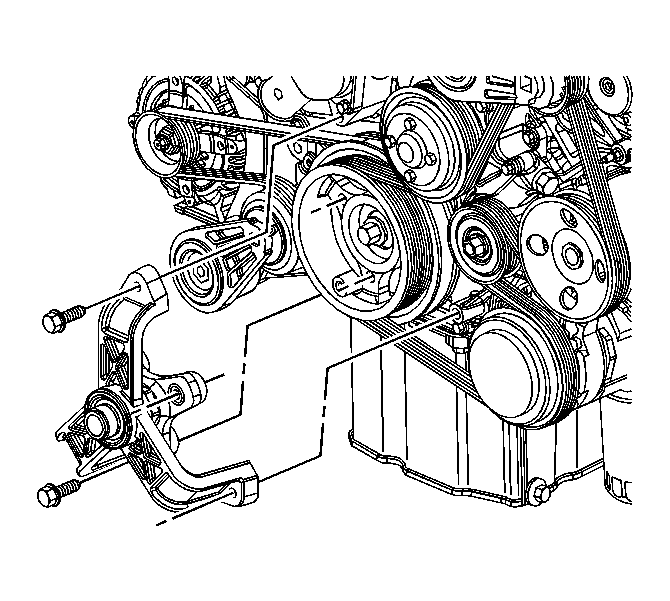

    Fig 1: View Of Engine Cooling Fan Bracket (LH2)
    GM1442445Courtesy of GENERAL MOTORS CORP.
  1. Install the fan bracket to the engine.
  2. Install but DO NOT tighten the fan bracket to engine block bolts.
  3. If necessary, with the aid of an assistant, tap the engine ignition until the fan bracket to crankshaft balancer bolt holes are accessible.
    4. NOTE: Refer to Fastener Notice .
  4. Install the fan bracket to crankshaft balancer bolts.

    Tighten:

    • Tighten the fan bracket to crankshaft balancer bolts to 24 N.m (18 lb ft).
    • Tighten the fan bracket to engine block bolts to 24 N.m (18 lb ft).

    5. Fig 2: View Of Fan
    GM1442452Courtesy of GENERAL MOTORS CORP.
  5. Install the engine cooling fan. Refer to Fan Replacement (LH2)  or Fan Replacement (LY7) .
