Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Install the radiator.

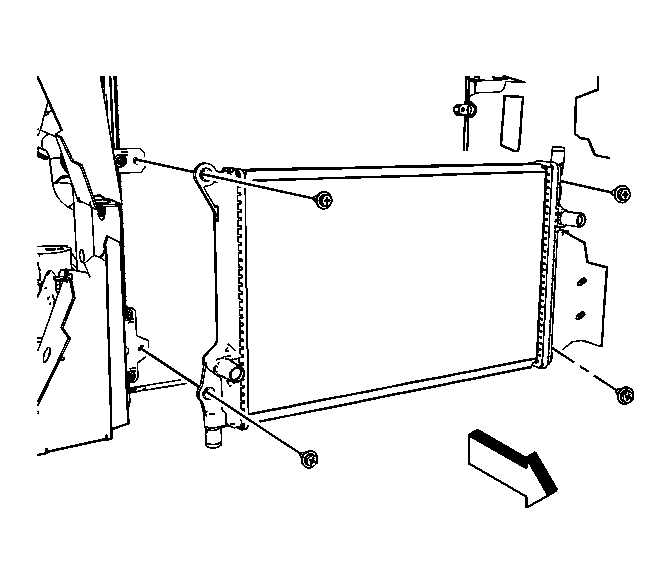

Fig 1: Radiator Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the radiator mounting bolts.
Tighten: Tighten the bolts to 5.4 N.m (48 lb in).

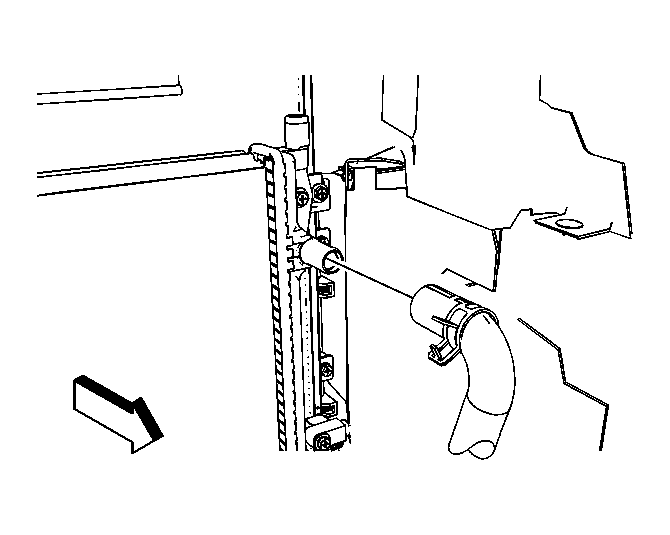

Fig 2: Radiator Outlet Hose

Courtesy of GENERAL MOTORS CORP.

Using the J 38185 , disengage clamp tension and connect the radiator outlet hose onto the radiator. See Special Tools .
Install the radiator inlet hose.

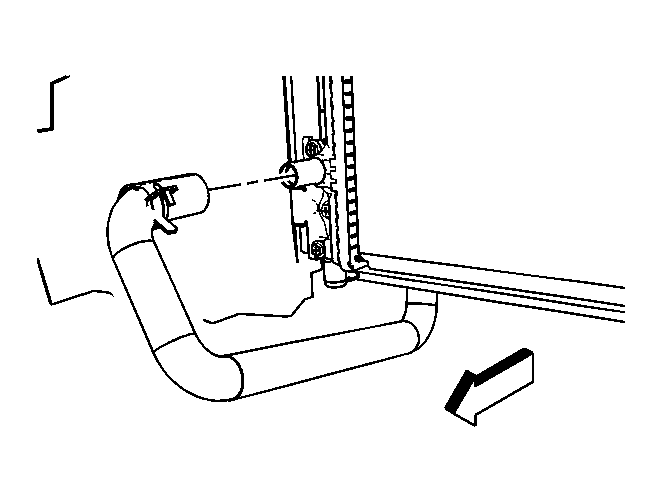

Fig 3: Radiator Inlet Hose From Pipe Assembly

Courtesy of GENERAL MOTORS CORP.

Using the J 38185 , disengage clamp tension and connect the radiator inlet hose onto the pipe assembly. See Special Tools .
Using the J 38185 , disengage clamp tension and connect the radiator inlet hose onto the pipe assembly. See Special Tools .

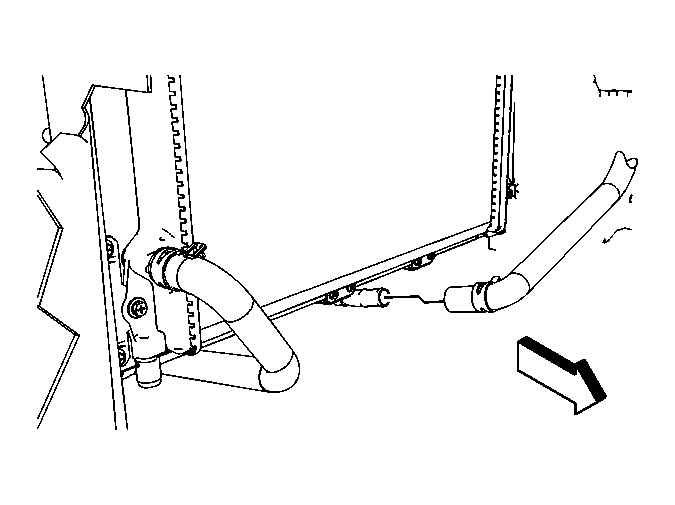

Fig 4: Radiator Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Fill the charge air cooling system. Refer to Charge Air Cooling System Draining and Filling (Vac N Fill) or Charge Air Cooling System Draining and Filling (Static Fill) .
