Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Rear Park Brake Cable Connector & Intermediate Park Brake Cable
    GM751494Courtesy of GENERAL MOTORS CORP.
  1. Route and install the intermediate park brake cable into park brake cable retaining bracket.
  2. Properly seat the intermediate park cable into the park brake cable retaining bracket.
  3. Connect the right rear parking brake cable connector (1) to the intermediate park brake cable (2).
  4. Connect the intermediate park brake cable (2) to the equalizer (3).

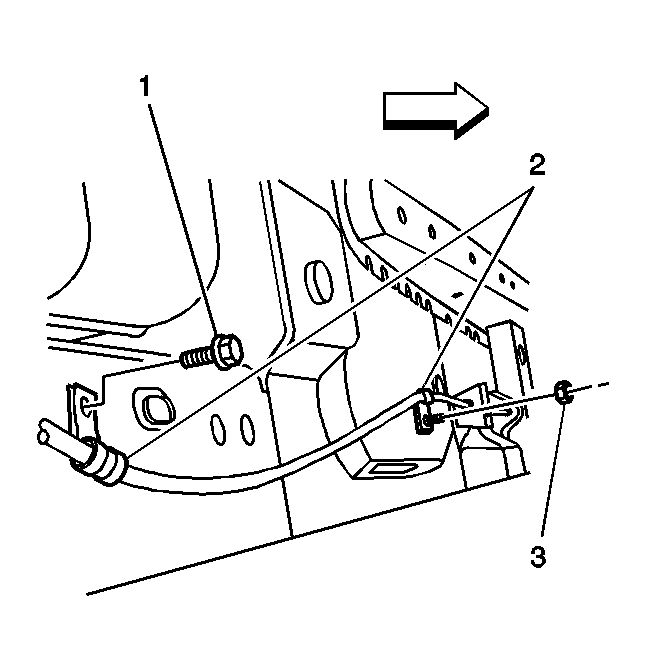

    5. Fig 2: View Of Park Brake Cable Guides
    GM784153Courtesy of GENERAL MOTORS CORP.
  5. Install the park cable guides (2).
    6. NOTE: Refer to Fastener Notice .
  6. Install the park brake cable guide bolt (1) to the floor pan.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  7. Install the park brake cable guide nut (3) to the mounting stud.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

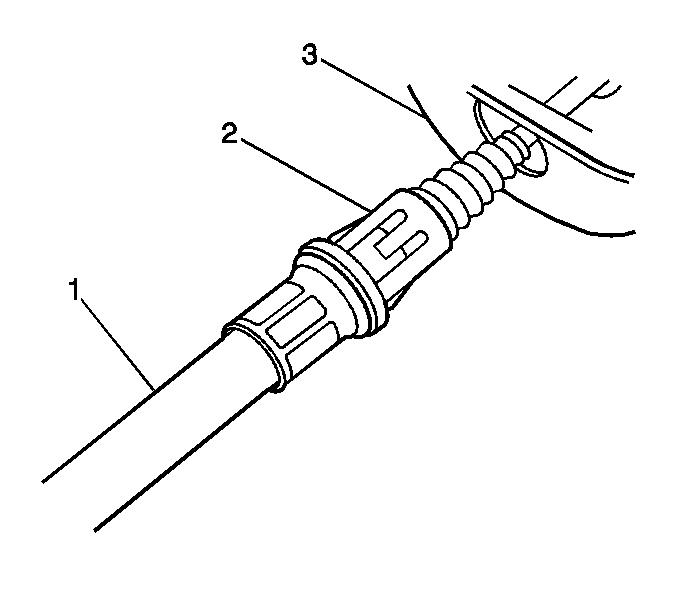

    8. Fig 3: View Of Intermediate Park Brake Cable Housing & Locking Retainer
    GM751480Courtesy of GENERAL MOTORS CORP.
  8. Connect intermediate park brake cable housing (1) to the floor pan bracket (3).
  9. Properly seat the intermediate park brake cable housing retainer to the floor pan.
    10. Fig 4: View Of Park Brake Cable
    GM492729Courtesy of GENERAL MOTORS CORP.
  10. Insert the intermediate park brake cable (2) into the cable retaining bracket and lock the intermediate park brake cable into place.
  11. Connect the front of the intermediate park brake cable (2) to the park brake cable connector (1).
  12. Lower the vehicle.
  13. To ensure that the park brake cable retainers are seated, cycle the park brake pedal 1 to 2 times.
