Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Washer Pump Filter Grommet
    GM784588Courtesy of GENERAL MOTORS CORP.
  1. Remove the air deflector. Refer to Front Air Deflector Replacement .
  2. Disconnect the washer hose (2) from the washer pump (5).
  3. Drain the washer solvent into a suitable container.
  4. Remove the hood insulator.
  5. Remove the passenger side air inlet grille. Refer to Air Inlet Grille Panel Replacement .
    6. Fig 2: View Of Washer Hose
    GM776820Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the washer hose retainer clip (1) from the inside of the hood hinge.

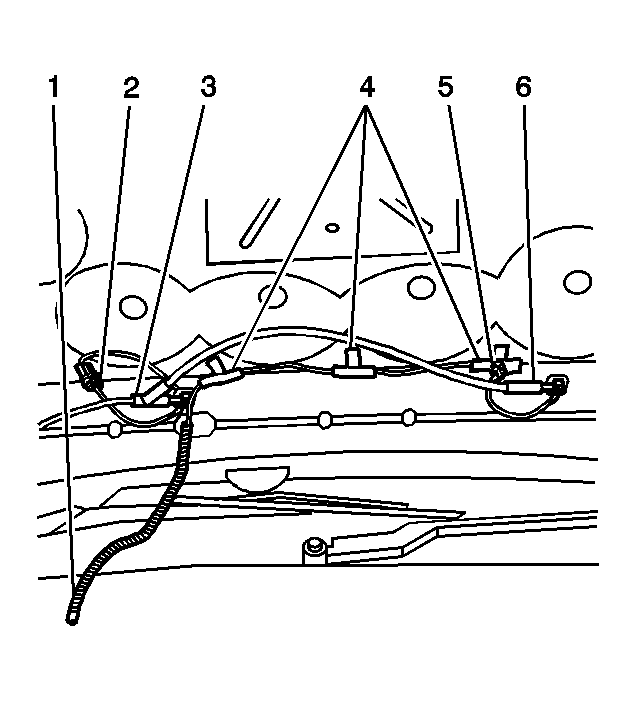

    7. Fig 3: View Of Washer Hose Connections
    GM786879Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the washer hose connections (3, 6) from the washer nozzles.
  8. Remove the washer hose from the passenger side inner fender.
  9. Remove the hose rearward from the passenger side hood hinge.
  10. Remove the washer hose from the vehicle.
