Mode Actuator Replacement - Console
WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

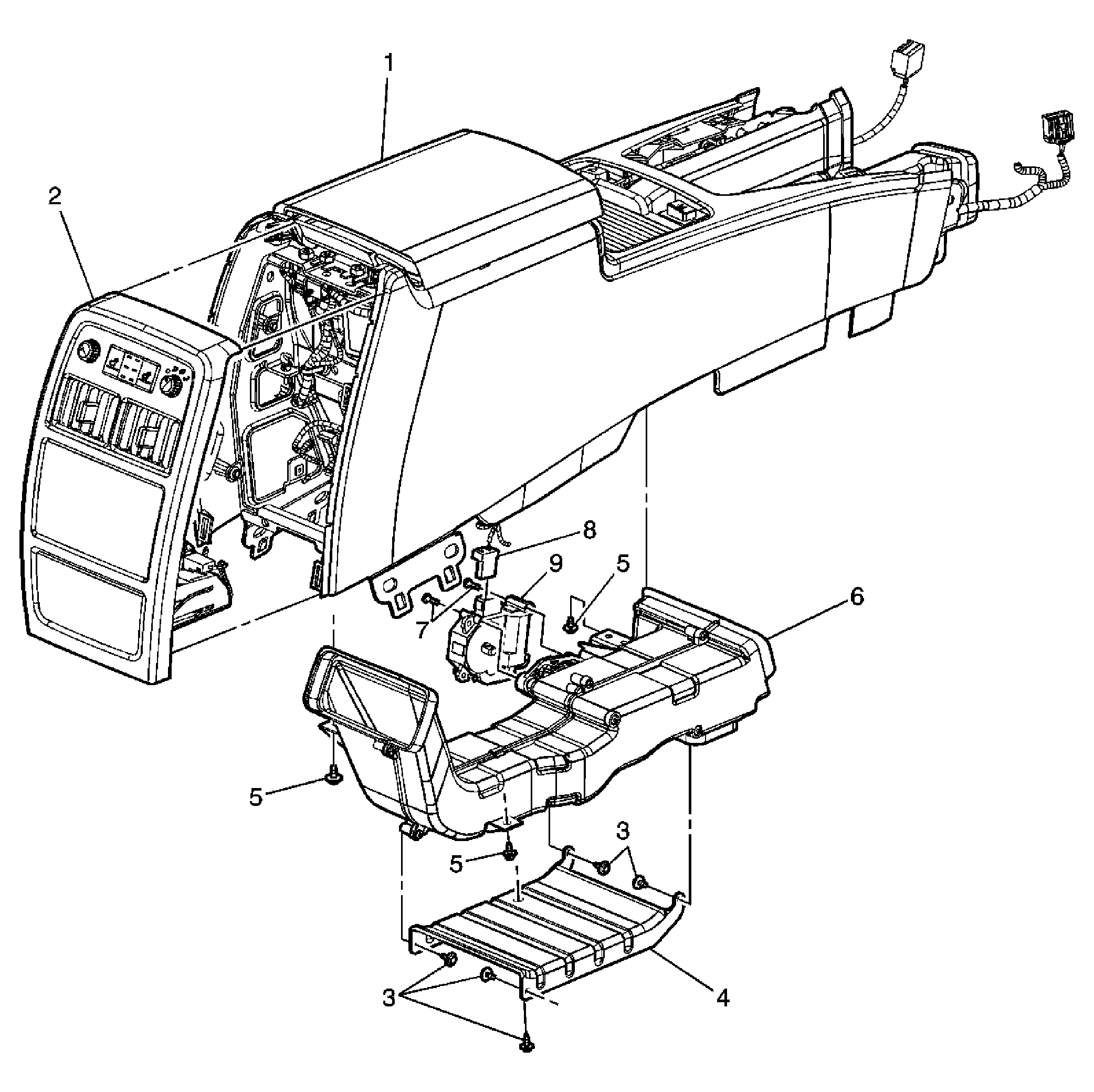

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Refer to Front Floor Console Replacement . |
| 2 | Center Console End Panel Tip: Using blunt trim tool release the retaining clips. Refer to Center Console End Panel Replacement . Removing the end panel allows the removal of the air distribution duct. |
| 3 | Side Impact Brace Screw (Qty: 5)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 4 | Side Impact Brace |
| 5 | Air Distribution Duct Screw (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 6 | Air Distribution Duct |
| 7 | Retainer Actuator Screw (Qty: 2) Tighten: 1 N.m (9 lb in) |
| 8 | Mode Actuator Connector |
| 9 | Mode Actuator |
