Air Quality Sensor Replacement
WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

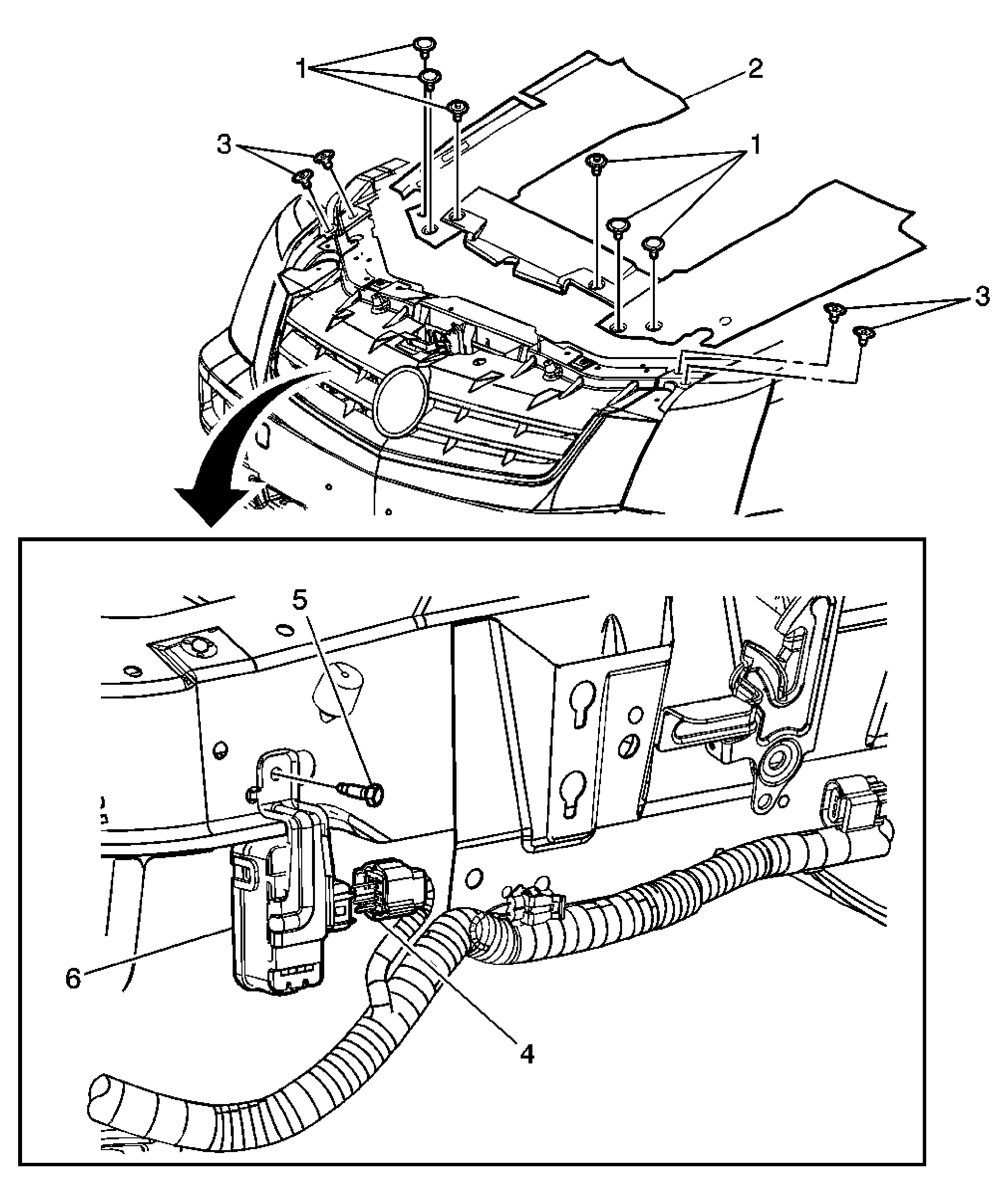

| Callout | Component Name |
|---|---|
| 1 | Radiator Support Sight Shield Retainer (Qty: 6) |
| 2 | Front Compartment Front Sight Shield Assembly |
| 3 | Radiator Grille Retainer (Qty: 4) Tip: By removing these 4 retainers allows the front fascia grille flexibility to be moved forward to access the air quality sensor. |
| 4 | Air Quality Sensor Connector |
| 5 | Air Quality Sensor Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 6 | Air Quality Sensor |
