Installation Procedure
WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the compressor.
- Raise and support the vehicle.

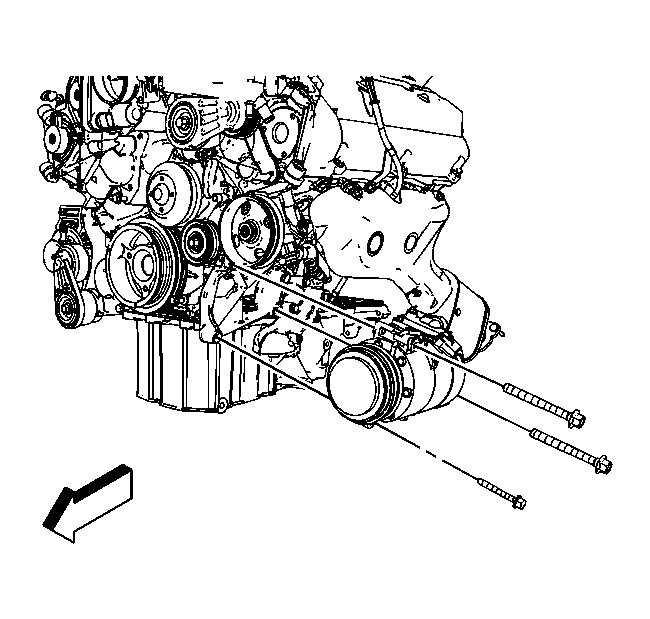

- Install the compressor mounting bolts.
- Tighten the compressor mounting bolts.
Tighten: Tighten the stud to 25 N.m (18 lb ft).
- Connect the electrical connector.
- Install the engine oil filter. Refer to Engine Oil and Oil Filter Replacement .
- Install new O-ring seals to the line fittings. Refer to O-Ring Replacement .
- Connect the suction line to the compressor.

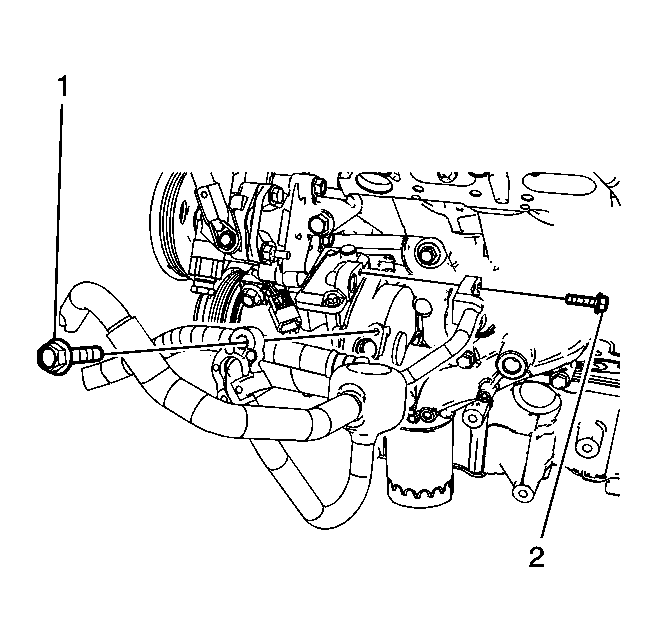

- Install the suction line bolt (1).
Tighten: Tighten the bolt to 9.8 N.m (87 lb in).
- Connect the discharge line to the compressor.
- Install the discharge line bolt (2).
Tighten: Tighten the bolt to 9.8 N.m (87 lb in).
- Install the engine splash shield. Refer to Air Inlet Grille Panel Replacement .
- Install the LH wheel and tire. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
- Install the cooling fan assembly. Refer to Fan Replacement (LH2) or to Engine Cooling Fan Replacement .
- Reposition and install the power steering reservoir. Refer to Remote Power Steering Fluid Reservoir Replacement (LH2) .
- Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Air Conditioning, Power Steering, and Water Pump .
- Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
- Evacuate and recharge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
- Using J 39400-A , leak test the fitting of the repaired or reinstalled component. See Special Tools .
NOTE:
Refer to Fastener Notice
.
