Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

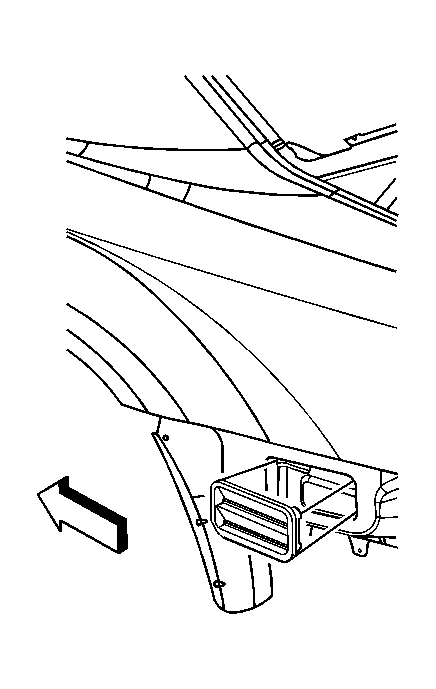

    Fig 1: View Of Pressure Relief Valve
    GM1453262Courtesy of GENERAL MOTORS CORP.
  1. Position the pressure relief valve to the opening in the rear quarter panel.
  2. Press inward on the pressure relief valve until fully seated.
  3. Install the rear bumper fascia.
