Rocker Panel Molding Replacement
WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

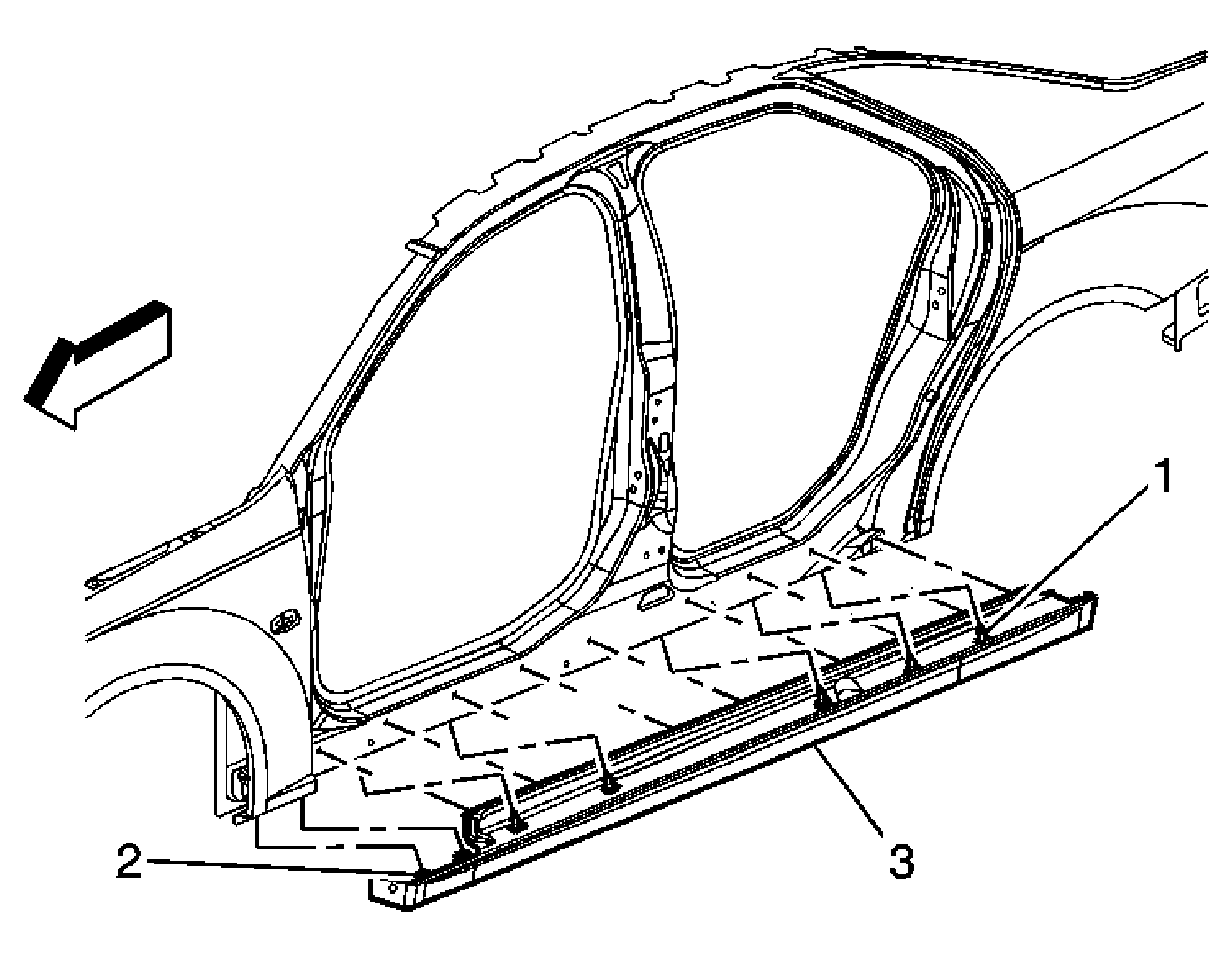

| Callout |
Component Name |
Preliminary Procedure:
Open both doors on the side the lower rocker molding is being replaced. |
| 1 |
Integral Retainers (Qty: 5)
Tip:
Release the lower retainer clips first before releasing the integral clips. |
| 2 |
Integral Clips (Qty: 11) |
| 3 |
Lower Rocker Panel Molding |
