Inflatable Restraint Sensing and Diagnostic Module (SDM)

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

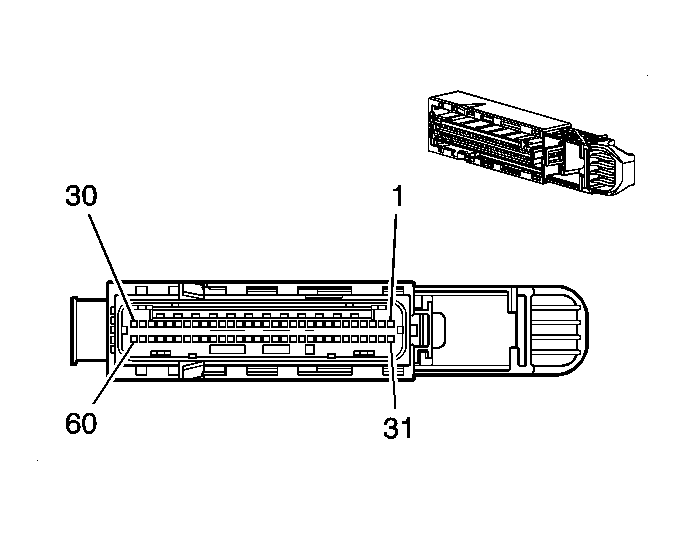

Fig 1: Inflatable Restraint Sensing and Diagnostic Module Connector End View
GM1376716Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Sensing and Diagnostic Module (SDM)

Pin Wire Circuit Function
1 0.35 RD/WH 1340 Battery Positive Voltage
2 0.35 D-GN 5060 Low Speed GMLAN Serial Data
3 0.35 PK 5057 Seat Position Sensor - Low Reference
4 0.35 D-GN 5016 Seat Belt Switch - Left - Signal
5 - - Not Available
6 0.35 OG 1362 Seat Belt Switch - Right Signal
7 - - Not Used
8 0.35 PK 5020 Roof Rail Module - Left - Low Control (AY0)
9 0.35 PU/WH 5019 Roof Rail Module - Left - High Control (AY0)
10 0.35 YE/BK 5021 Roof Rail Module - Right - Low Control (AY0)
11 0.35 WH/BK 5022 Roof Rail Module - Right - Low Control (AY0)
12 0.35 PU 3026 I/P Module - Stage 2 - Low Control
13 0.35 GY 3027 I/P Module - Stage 2 - High Control
14 0.35 TN 3021 Steering Wheel Module - Stage 1 - High Control
15 0.35 BN 3020 Steering Wheel Module - Stage 1 - Low Control
16 0.35 PK 3022 Steering Wheel Module Stage 2 - Low Control
17 0.35 WH 3023 Steering Wheel Module - Stage 2 - High Control
18 0.35 YE 3025 I/P Module Stage 1 - High Control
19 0.35 OG 3024 I/P Module Stage 1 - Low Control
20-30 - - Not Available
31 0.5 BK/WH 1851 Ground
32 0.35 D-GN 5060 Low Speed GMLAN Serial Data
33 0.35 PK 1139 Ignition 1 Voltage
34-35 - - Not Available
36 0.35 GY 5600 Front End Sensor - Right - Low Reference
37 0.35 D-GN 1409 Discriminating Sensor - Right - Signal
38 0.35 YE 354 Front End Sensor - Left - Low Reference
39 0.35 TN/OG 5045 Front End Sensor - Left - Signal
40-45 - - Not Available
46 0.35 YE 2131 Side Impact Sensing Module - Left - Voltage (AY0)
47 0.35 WH 2132 Side Impact Sensing Module - Left - Voltage (AY0)
48 0.35 D-GN 2134 Side Impact Sensing Module - Right - Signal (AY0)
49 0.35 TN 2133 Side Impact Sensing Module - Right - Voltage (AY0)
50-51 - - Not Available
52 0.35 L-GN 2116 Seat Belt Pretensioner - Right - High Control
53 0.35 OG 2117 Seat Belt Pretensioner - Right - Low Control
54-55 - - Not Used
56 0.35 TN/WH 2118 Seat Belt Pretensioner - Left - High Control
57 0.35 OG/BK 2119 Seat Belt Pretensioner - Left - Low Control
58-59 - - Not Available
60 0.35 PK 5018 Occupant Sensor - Serial Data
Connector Part Information
  • OEM: 13518824
  • Service: 19151495
  • Description: 60-Way F Micro-Pack 64 Series (YE)
Terminal Part Information
  • Pins: 8-11, 20-23, 46-49
  • Terminal/Tray: Service with Terminated Lead
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: 1-4, 12-19, 31, 32-33, 36-39, 52-53, 56-57
  • Terminal/Tray: Service with Terminated Lead
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
