Heated Seat Control Module - Passenger X2

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

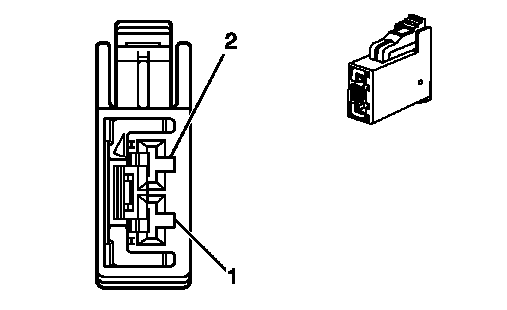

Fig 1: Heated Seat Control Module - Passenger X2 Connector End View
GM1415175Courtesy of GENERAL MOTORS CORP.
Heated Seat Control Module - Passenger X2

Pin Wire Circuit Function
1 0.8 BK 2433 Passenger Heated Seat Back Element Control
2 0.8 BK 2481 Passenger Heated Seat Back Element Supply Voltage
Connector Part Information
  • OEM: 7182-5579-40
  • Service: See Catalog
  • Description: 2-Way F (GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
