Fuel Pump and Sender Assembly

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

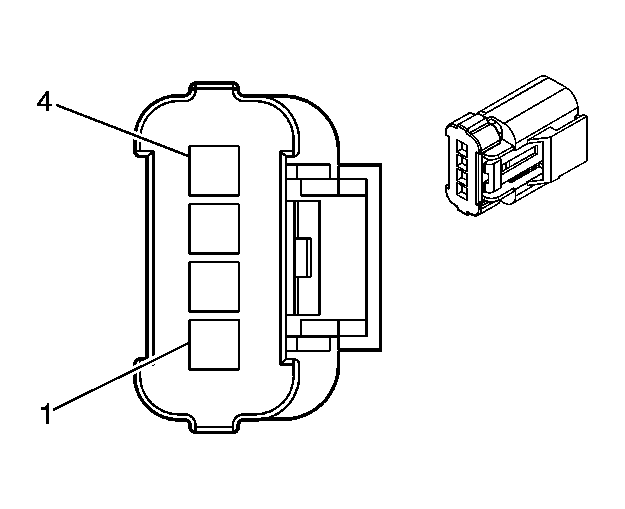

Fig 1: Fuel Pump And Sender Assembly Connector End View
GM1464949Courtesy of GENERAL MOTORS CORP.
Fuel Pump and Sender Assembly

Pin Wire Circuit Function
1 1 GY 120 Fuel Pump Supply Voltage
2 0.35 PU 1589 Fuel Level Sensor Signal
3 0.5 BK/WH 651 Ground
4 1 BK 1250 Ground
Connector Part Information
  • OEM: 22666266
  • Service: 15306349
  • Description: 4-Way F Apex (GY)
Terminal Part Information
  • Terminal/Tray: 54001400/22
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 12094429/J-35616-4A (PU)
