Antenna Amplifier Module

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

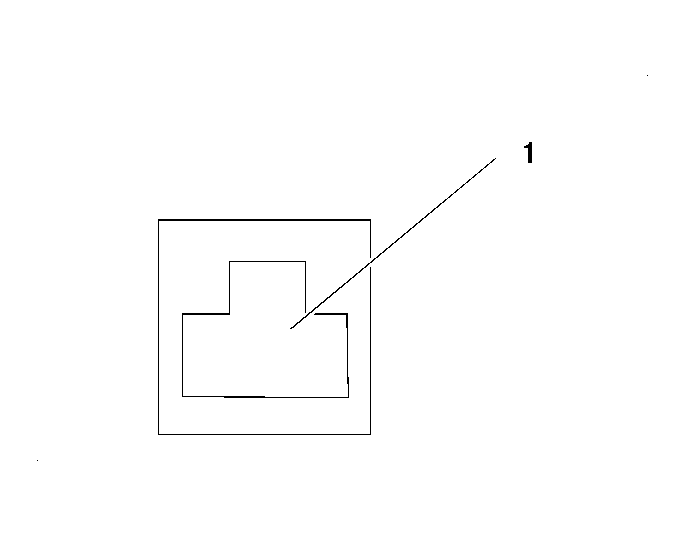

Fig 1: Antenna Amplifier Module Connector End View
GM1459093Courtesy of GENERAL MOTORS CORP.
Antenna Amplifier Module

Pin Wire Circuit Function
1 0.35 PK 5165 Antenna 14-Volt Switched Supply Voltage
Connector Part Information
  • OEM: 12158481
  • Service: 88956513
  • Description: 1-Way F Positive Lock 187 Series (WH)
Terminal Part Information
  • Terminal/Tray: 170325-1/24
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: J-38125-218/J-35616-40 (BU)
