Removal Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do NOT swap digital radio receivers between vehicles. Swapping digital receivers between vehicles will activate the digital radio Theftlock®, and "XM Theftlock®" will display.

Remove the instrument panel (I/P) compartment door. Refer to Instrument Panel Compartment Door Replacement .

Fig 1: View Of Service Panel

GM1364141

Courtesy of GENERAL MOTORS CORP.

Unfold the service panel located above the I/P compartment door.

Fig 2: View Of Right I/P Service Panel

GM1251728

Courtesy of GENERAL MOTORS CORP.

Remove the I/P access cover.

Fig 3: View Of Digital Radio Receiver Retaining Screws

GM1364138

Courtesy of GENERAL MOTORS CORP.

Remove the screws retaining the digital radio receiver to the I/P structure.

Fig 4: View Of Digital Radio Receiver

GM1364140

Courtesy of GENERAL MOTORS CORP.

Lower the receiver from the I/P.

IMPORTANT: Do not attempt to pry or slide the electrical connector release lever (1).

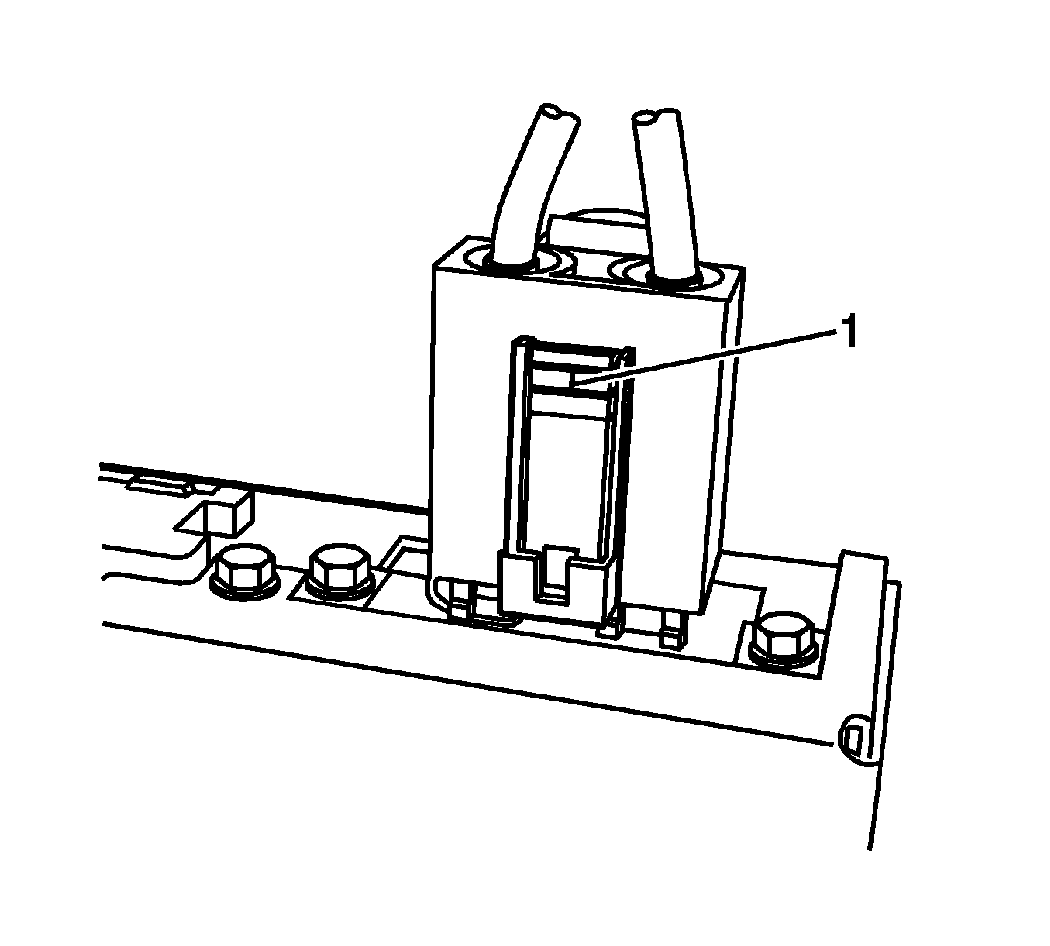

Fig 5: View Of Electrical Connector Release Lever

GM1408369

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector by pushing on the release lever (1).

Fig 6: View Of Electrical Connector Release Lever & CPA

GM1408373

Courtesy of GENERAL MOTORS CORP.

Remove the connector position assurance (CPA) (2) from the electrical connector.
Remove the connector from the receiver.
Remove the receiver from the vehicle.

Fig 7: View Of Receiver & Mounting Bracket

GM1364133

Courtesy of GENERAL MOTORS CORP.

If replacing the receiver, remove the nuts retaining the receiver to the mounting bracket.
Remove the receiver from the mounting bracket.
