Radiator Inlet Hose Replacement (LLR)

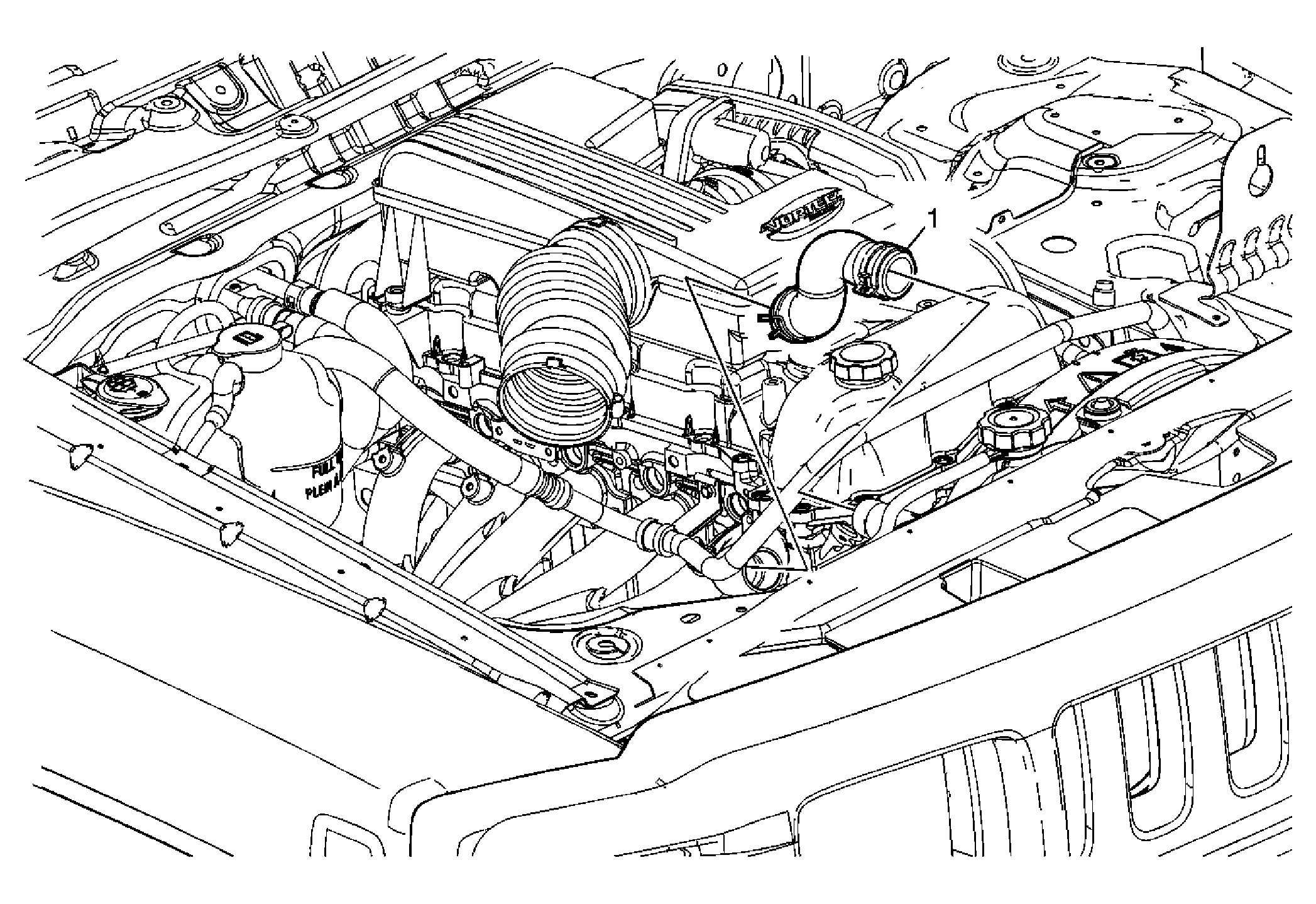

Fig 1: Radiator Inlet Hose Replacement (LLR)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedure:  Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac-N-Fill) .
1	Radiator Inlet Hose Tip:  Use J 38185  to release the radiator hose clamps. See Special Tools .
