Sunroof Window Replacement

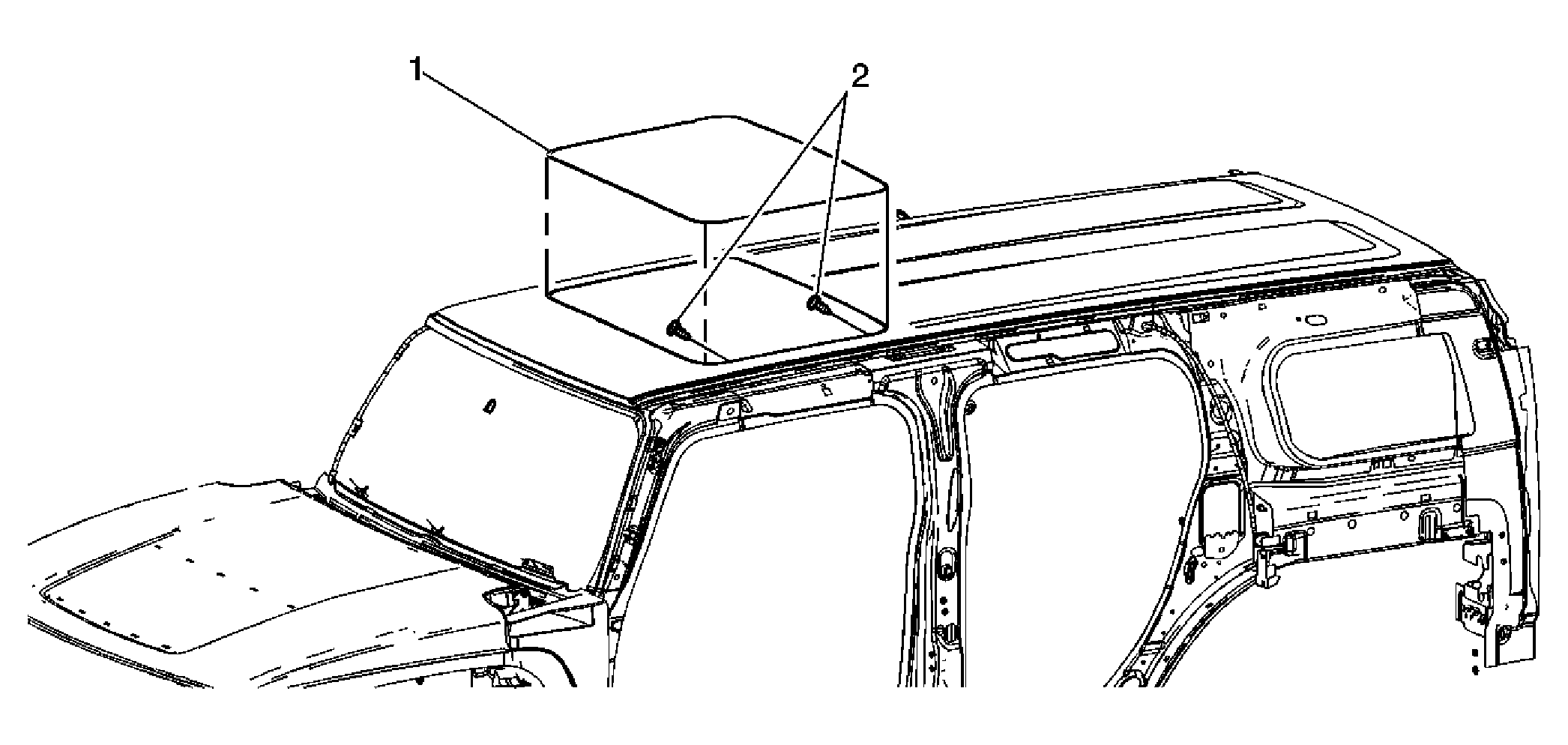

Fig 1: Sunroof Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Window Screw (Qty: 4) NOTE: Refer to Fastener Notice . Procedure Open the sunshade. Open the sunroof window. Screws are located on the inside edge of each corner of the window. Tighten: 4 N.m (35 lb in)
2	Sunroof Window Procedure Remove the window from the outside the vehicle. Adjust the window, if necessary. Refer to Sunroof Window Height and Opening Fit Adjustment .

Callout

Component Name

Sunroof Window Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Procedure

Tighten: 4 N.m (35 lb in)

Sunroof Window

Procedure

Remove the window from the outside the vehicle.
Adjust the window, if necessary. Refer to Sunroof Window Height and Opening Fit Adjustment .
