Front Fog Lamp Replacement

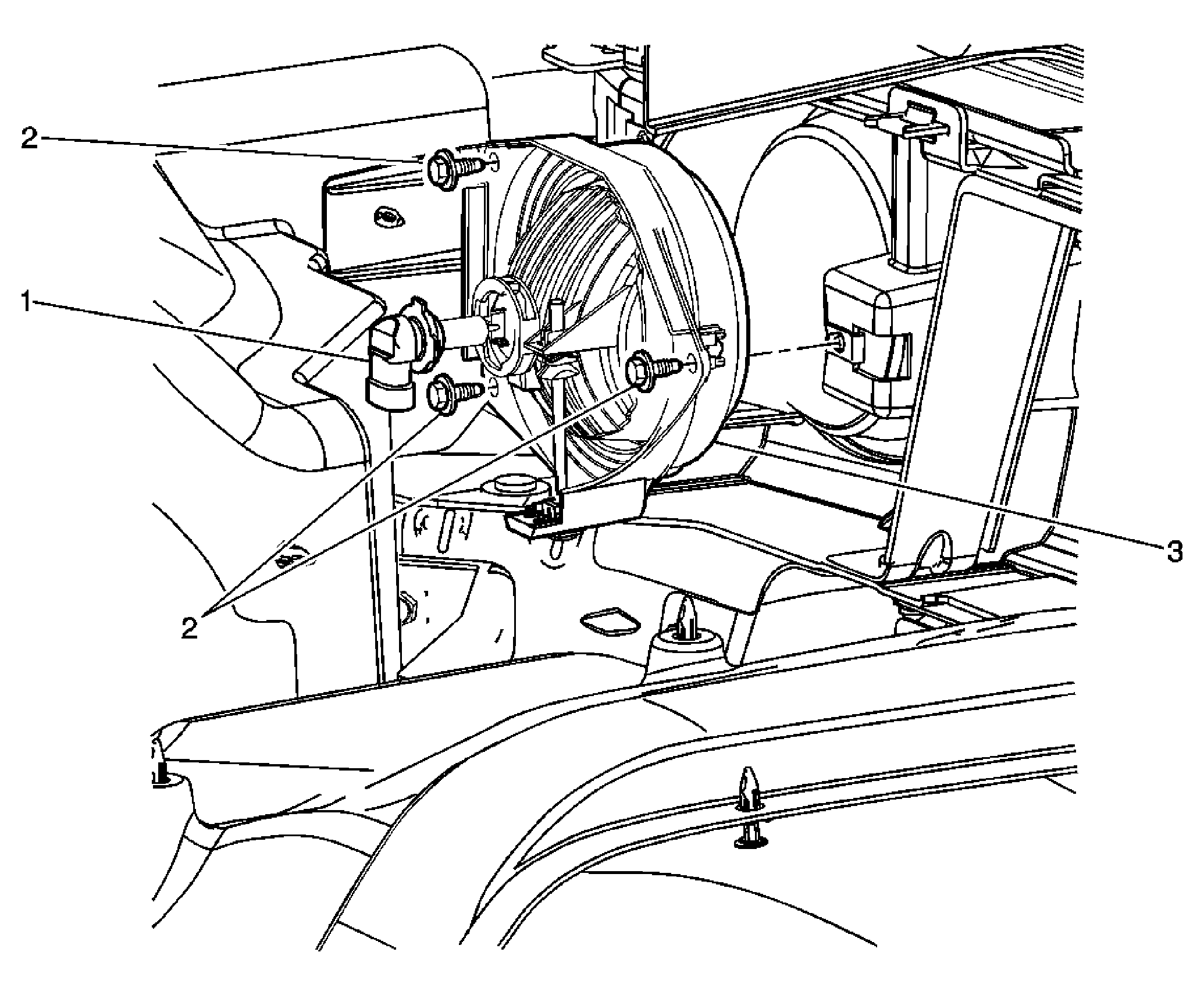

Fig 1: Fog Lamp Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove either the LF or RF wheelhouse liner. Remove the fog lamp bulb by twisting counterclockwise. Disconnect the electrical connector, if replacing the fog lamp bulb.
1	CAUTION: Refer to Halogen Bulb Caution . Bulb, Front Fog Lamp
2	Bolts, Front Fog Lamp Retainer (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: Tighten to 10 N.m (89 lb in)
3	Lamp Assembly, Front Fog Tip: Aim the fog lamps after the replacement of a lamp assembly. Refer to Fog Lamp Aiming .
