Installation Procedure

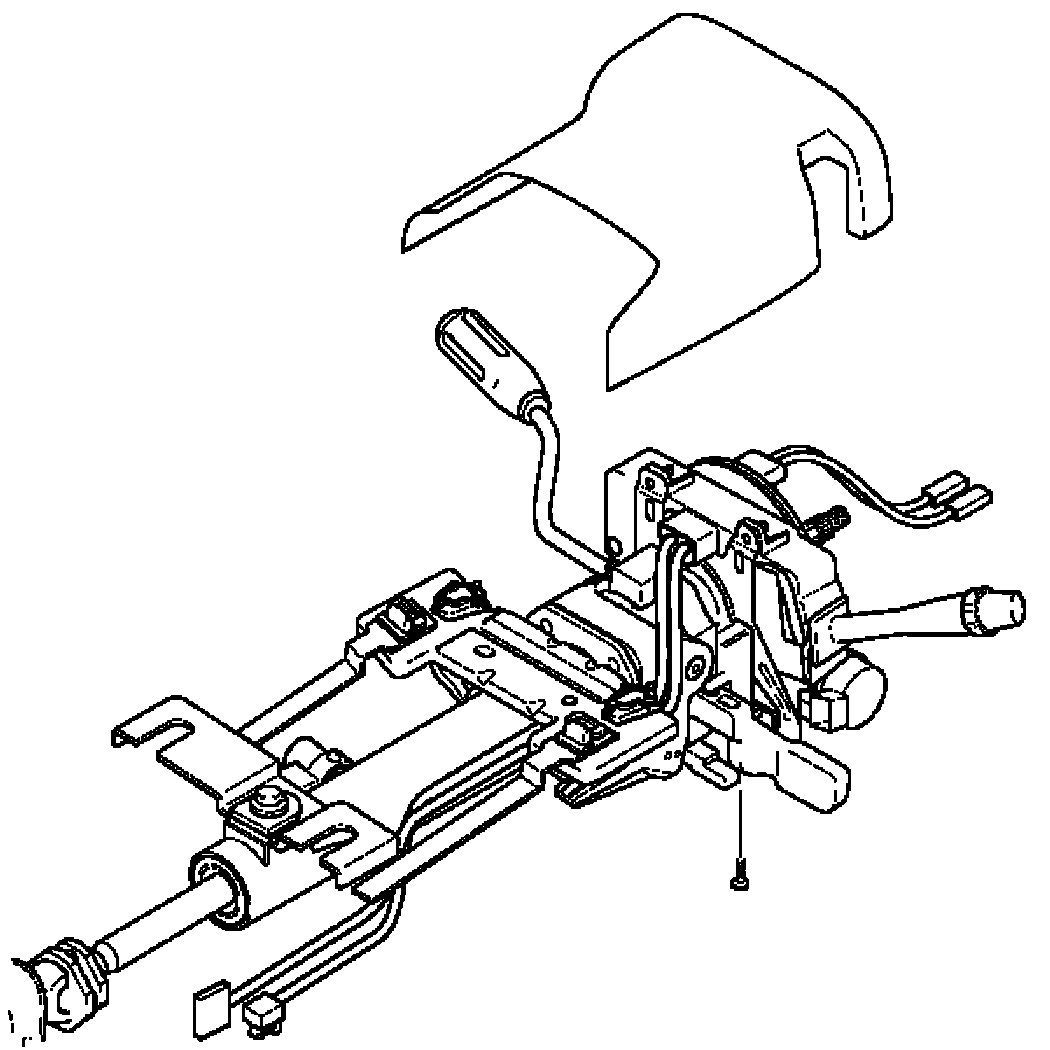

    Fig 1: Identifying Upper Trim Cover & Shoulder Tapping Screw
    GM1492300Courtesy of GENERAL MOTORS CORP.
  1. Place the upper steering column trim covers onto the steering column.
    2. Fig 2: View Of Lower Trim Cover At Upper Trim Cover
    GM723623Courtesy of GENERAL MOTORS CORP.
  2. Gently snap the lower and upper steering column trim covers together.

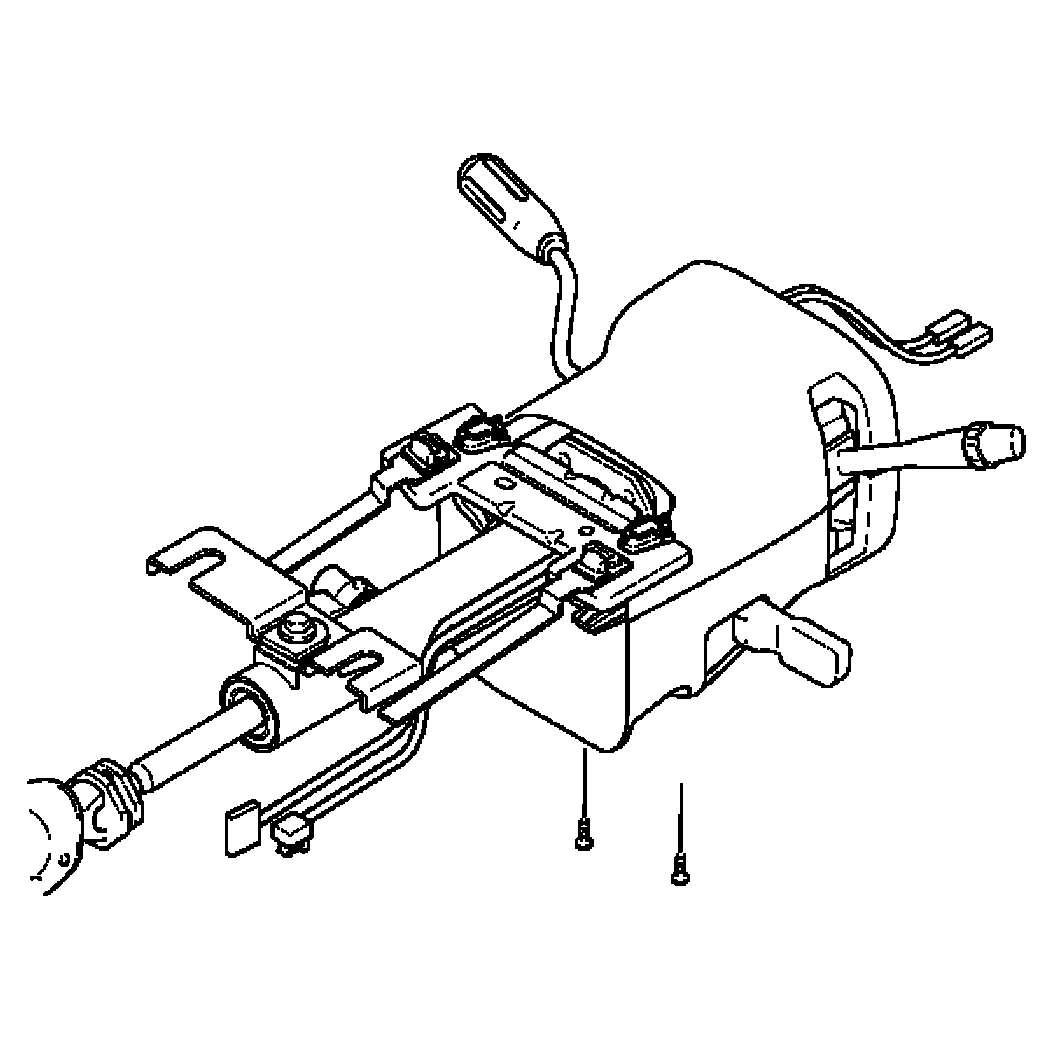

    3. Fig 3: View Of Shoulder Tapping Screws
    GM1492299Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the lower steering column trim cover bolts.

    Tighten:  Tighten the bolts to 3.5 N.m (31 lb in).

  4. Install the driver knee bolster. Refer to Driver Knee Bolster Replacement (Left Hand Drive) or Driver Knee Bolster Replacement (Right Hand Drive) .
