Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

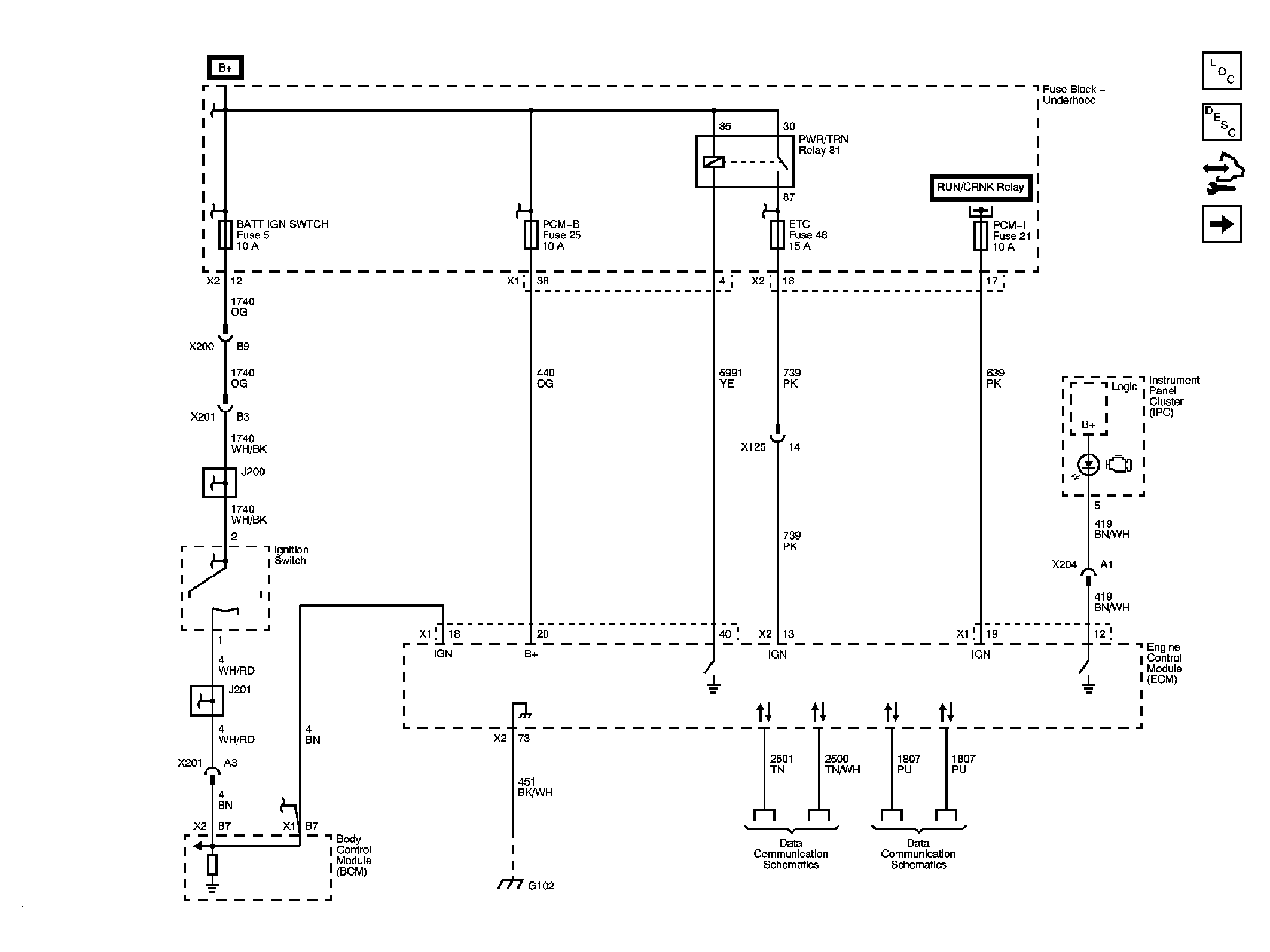

Fig 1: Module Power, Ground, Serial Data and MIL

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Pressure, and Temperature

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - Electronic Throttle Control

Courtesy of GENERAL MOTORS CORP.

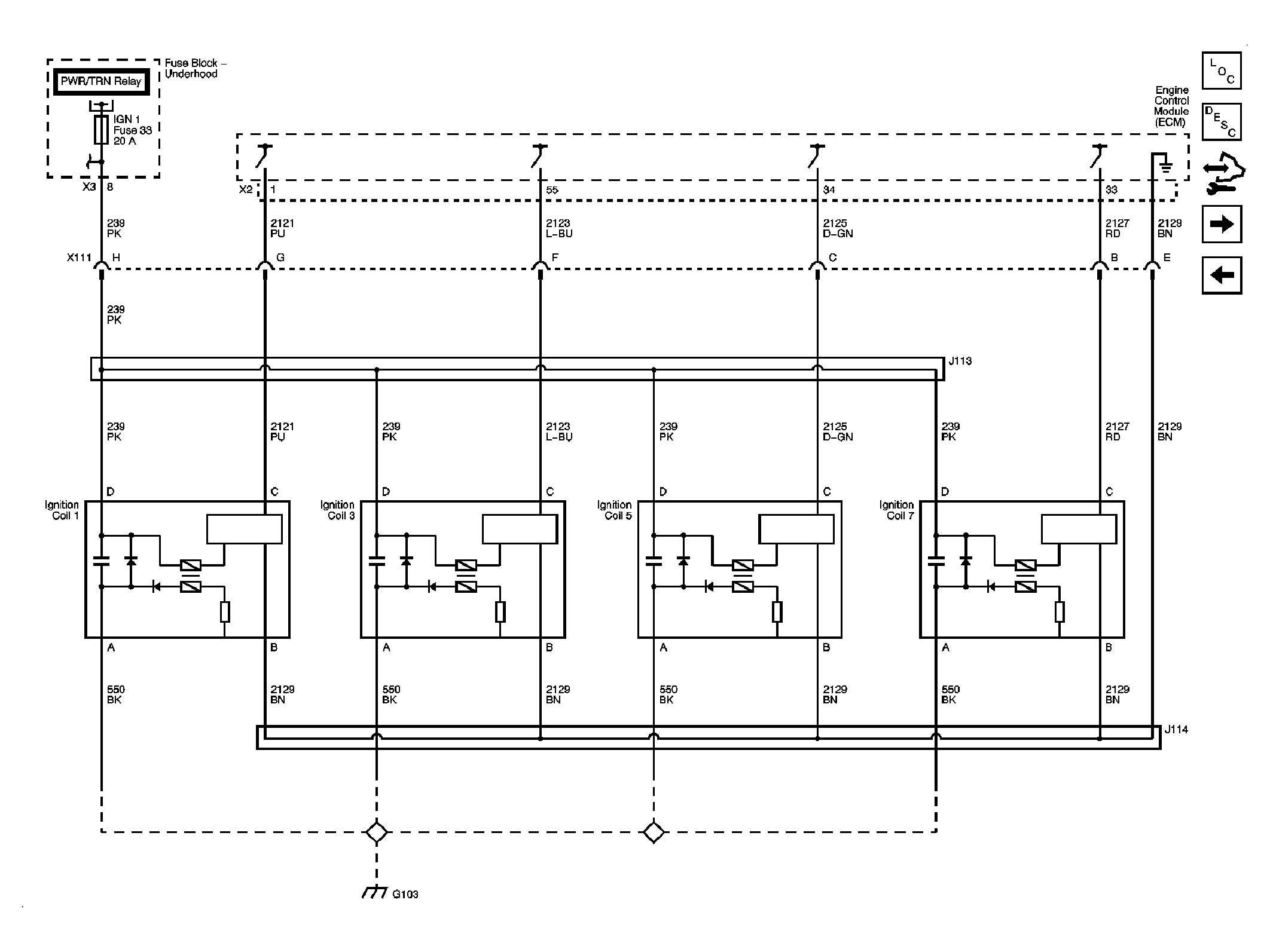

Fig 6: Ignition Controls - Ignition Coils 1, 3, 5, and 7

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Ignition Coils 2, 4, 6, and 8

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

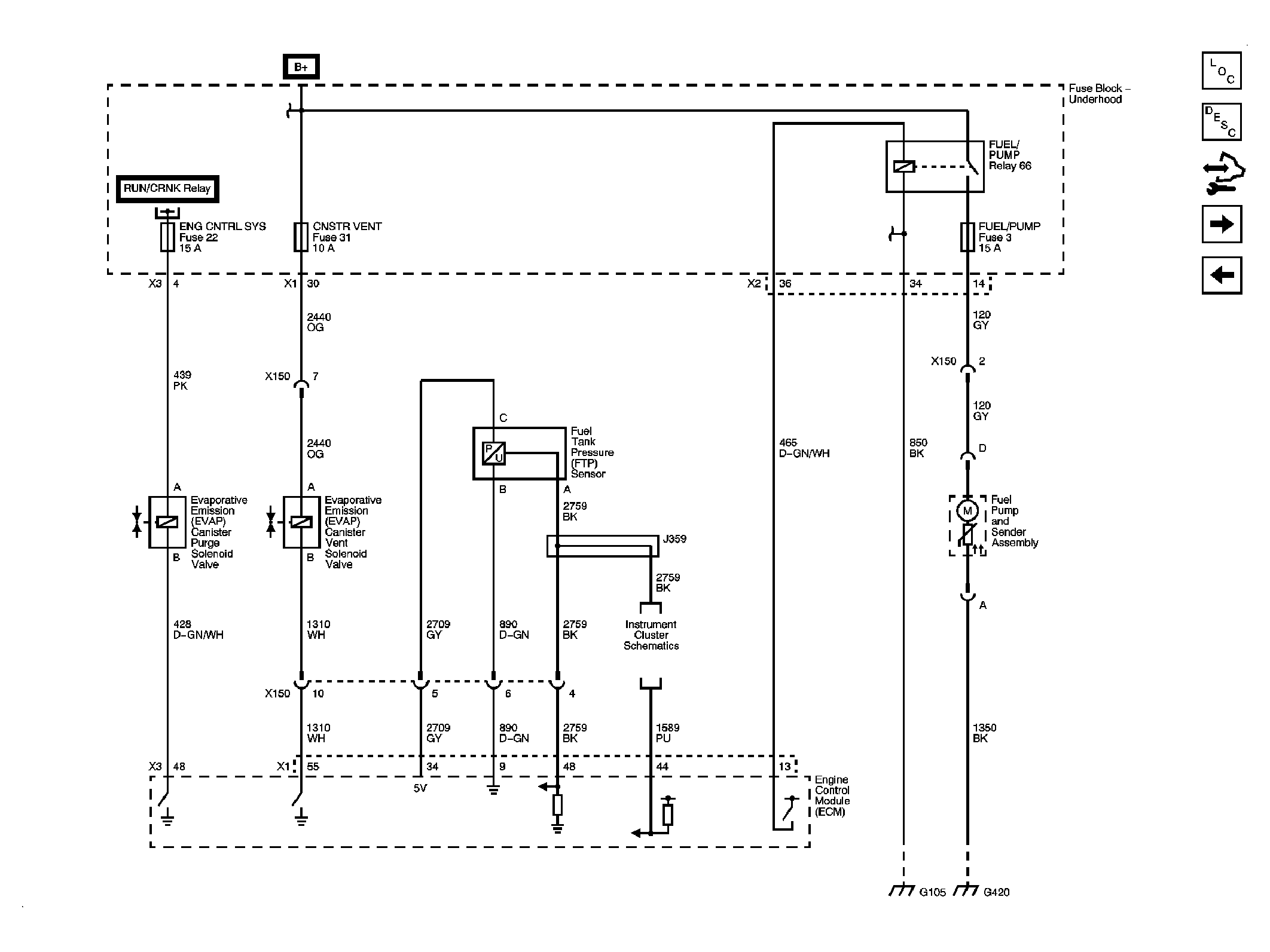

Fig 9: Fuel Controls - Fuel Pump and EVAP Controls

Courtesy of GENERAL MOTORS CORP.

Fig 10: Fuel Controls - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

Fig 11: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
