Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

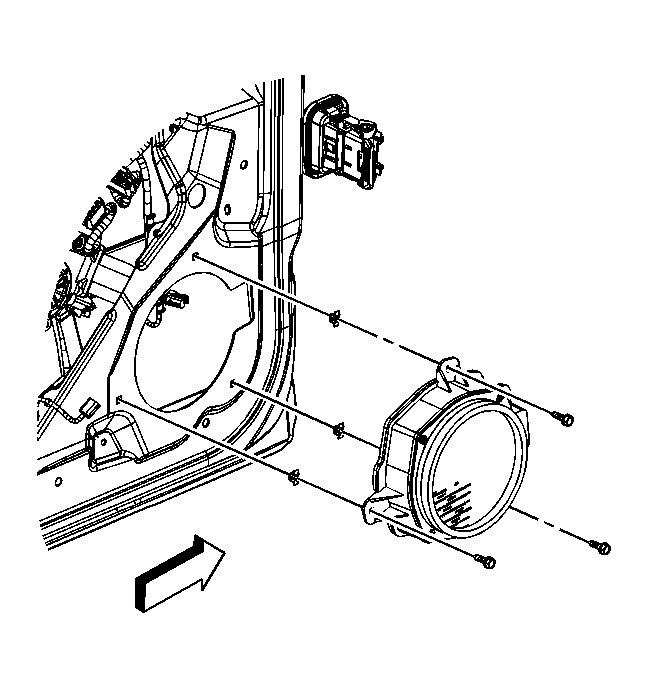

    Fig 1: View Of Speaker And Door
    GM1247856Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the speaker to the door and secure with the fasteners.

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).

  2. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
