Cellular Communications/Digital Radio Antenna Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

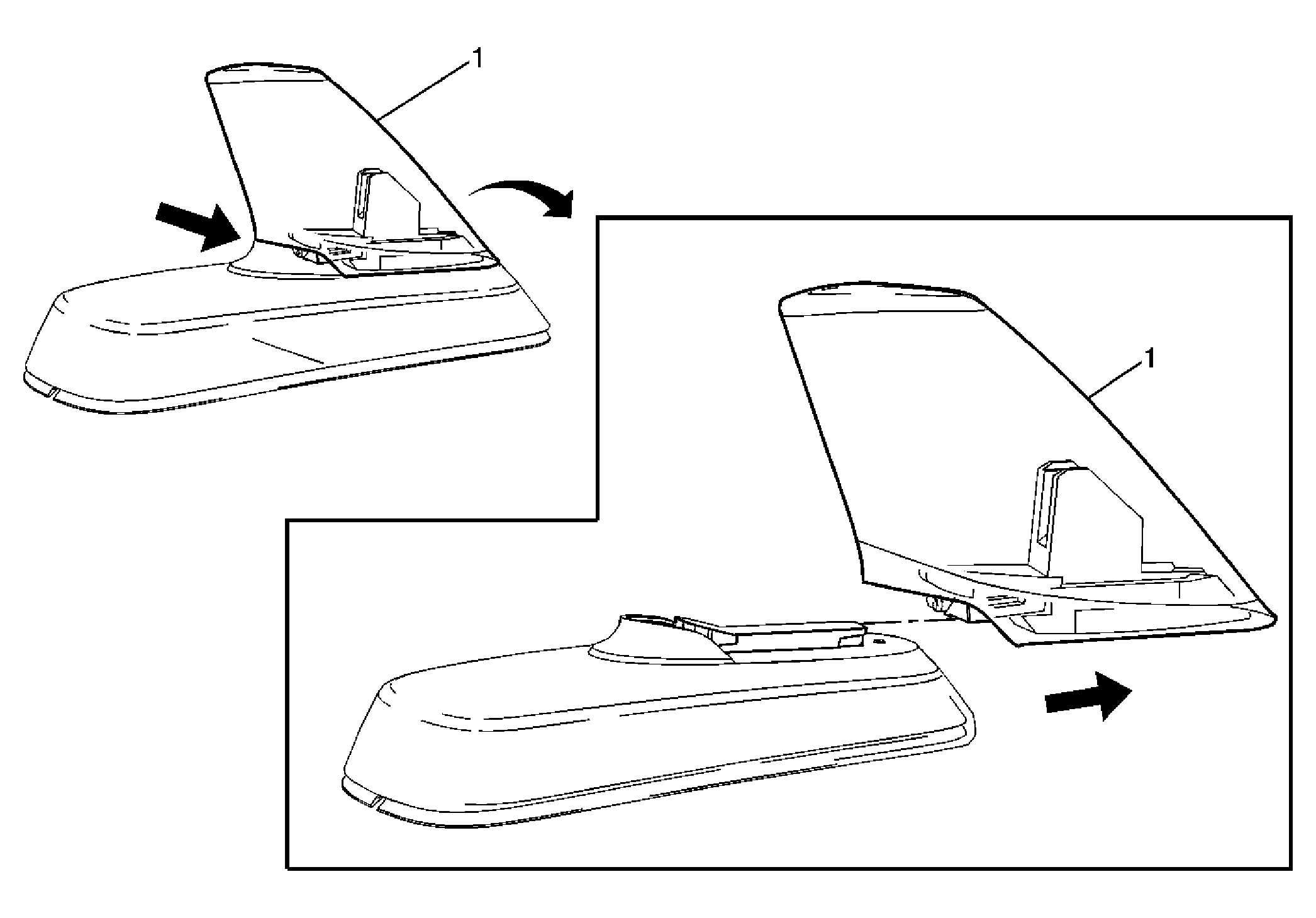

Fig 1: View Of Cellular Communications/Digital Radio Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Antenna Assembly, Mobile Telephone Digital Tip: The release tab is not visible with the mast assembled to the antenna base. Use a thin flat tool to release the antenna from the base, then slide the antenna off the antenna base.
