Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ignition switch from the I/P pad. Refer to Ignition and Start Switch Replacement .

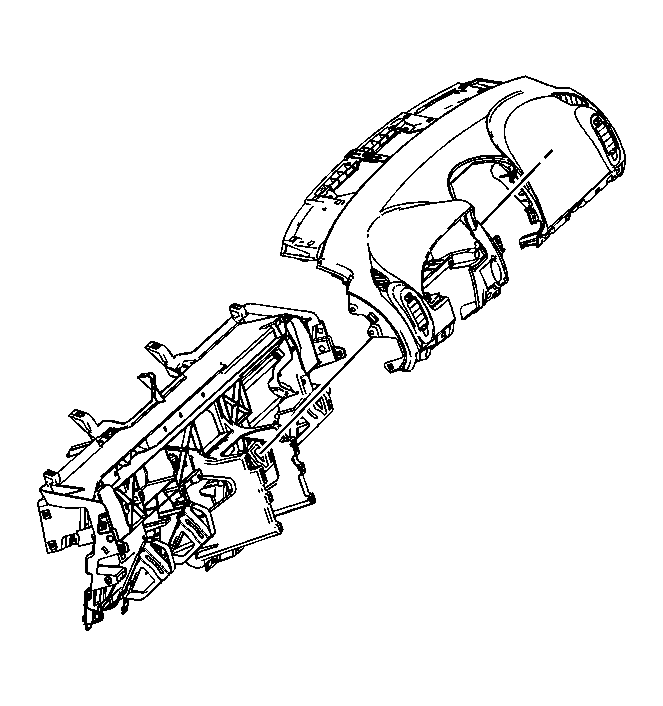

    2. Fig 1: View Of I/P Pad
    GM1207564Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P pad.
  3. Install the ambient light sensor. Refer to Ambient Light Sensor Replacement .

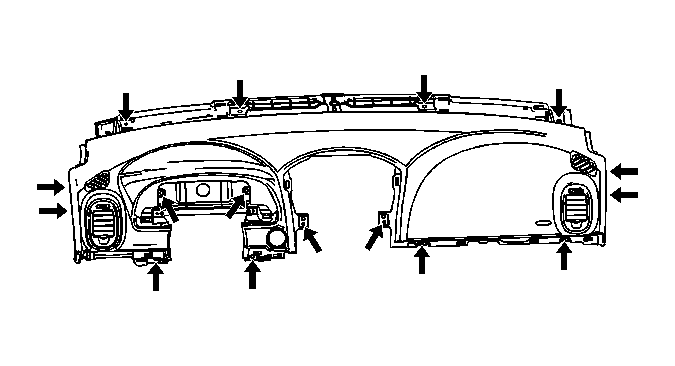

    4. Fig 2: View Of I/P Trim Pad Screws
    GM1207591Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  4. Tighten the I/P trim pad screws.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  5. Install the park lock cable at the ignition switch. Refer to Park Lock Cable Replacement for the 4T40-E/4T45-E transmission.
  6. Install the ignition switch wire harness connectors. Refer to Ignition and Start Switch Replacement .
  7. Install the radio. Refer to Radio Replacement .
  8. Install the HVAC control module. Refer to HVAC Module Assembly Replacement .
  9. Install the I/P center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
  10. Install the cluster. Refer to Instrument Cluster Replacement .
  11. Install the cluster trim bezel assembly. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
  12. Install the knee bolster. Refer to Knee Bolster Replacement .
  13. Install the I/P compartment. Refer to Instrument Panel Compartment Replacement .
  14. Install the I/P right trim panel. Refer to Instrument Panel Trim Panel Replacement - Right Side .
  15. Install the I/P left trim panels. Refer to Instrument Panel Trim Panel Replacement - Left Side .
  16. Install the I/P outer trim covers. Refer to Instrument Panel Outer Trim Cover Replacement .
  17. Install the I/P upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
