Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hazard switch. Refer to Hazard Warning Switch Replacement .

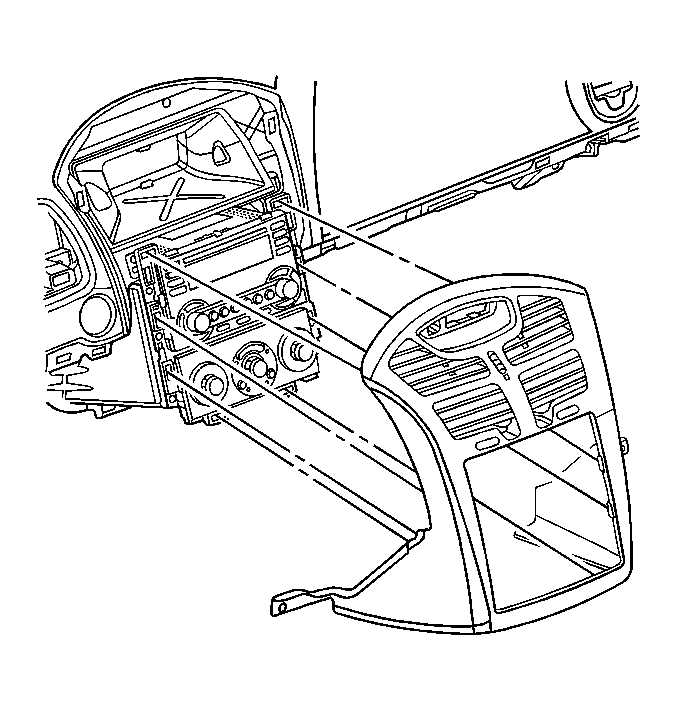

    2. Fig 1: View Of I/P Center Trim Bezel
    GM1207647Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P center trim bezel.
  3. Install the knee bolster. Refer to Knee Bolster Replacement .
  4. Install the I/P compartment. Refer to Instrument Panel Compartment Replacement .
  5. Install the I/P right trim panels. Refer to Instrument Panel Trim Panel Replacement - Right Side .
  6. Install the I/P left trim panels. Refer to Instrument Panel Trim Panel Replacement - Left Side .
