SIR Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

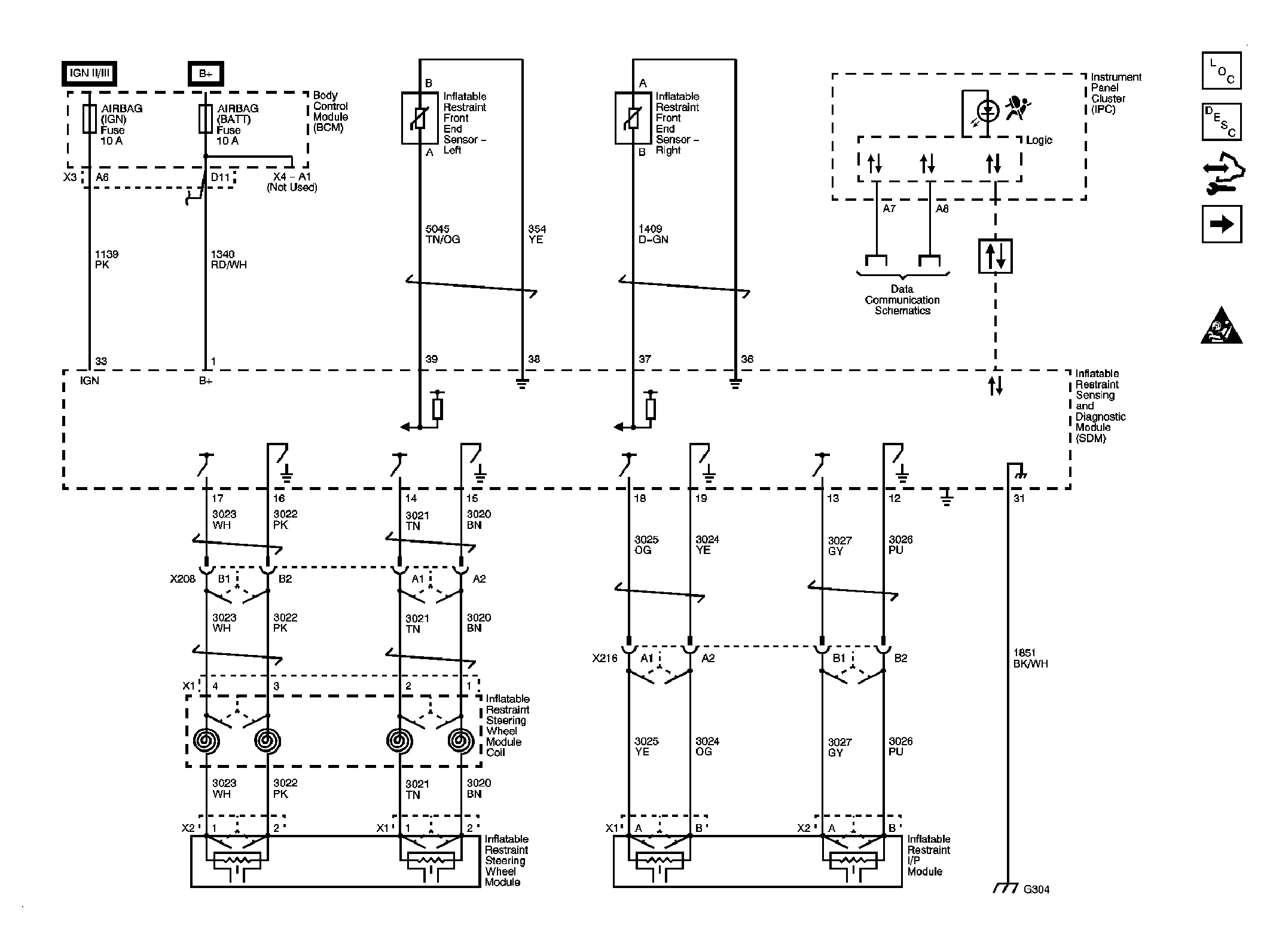

Fig 1: Power, Ground And Sensors - Schematic

Courtesy of GENERAL MOTORS CORP.

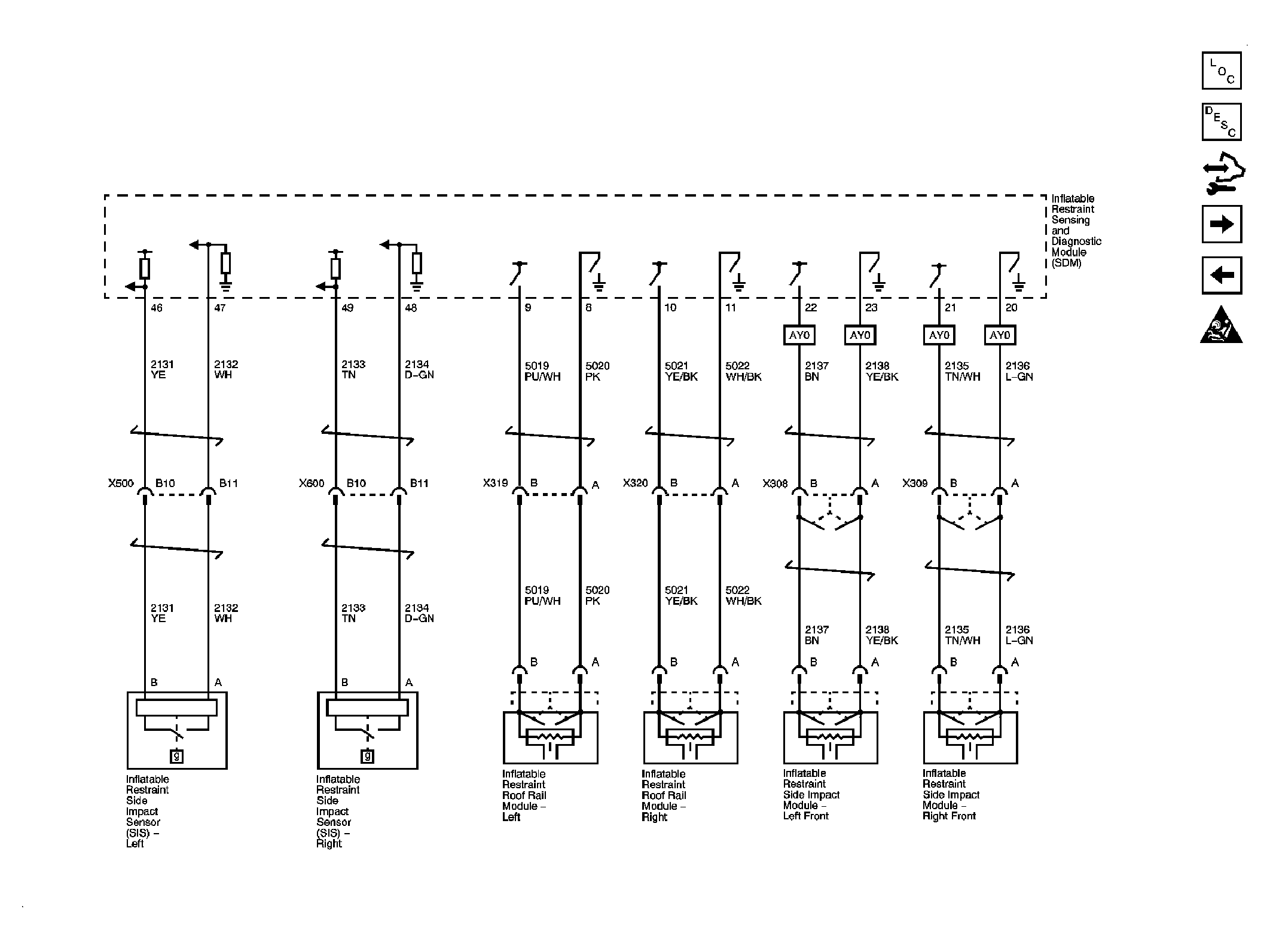

Fig 2: AY0/AY1 - Schematic

Courtesy of GENERAL MOTORS CORP.

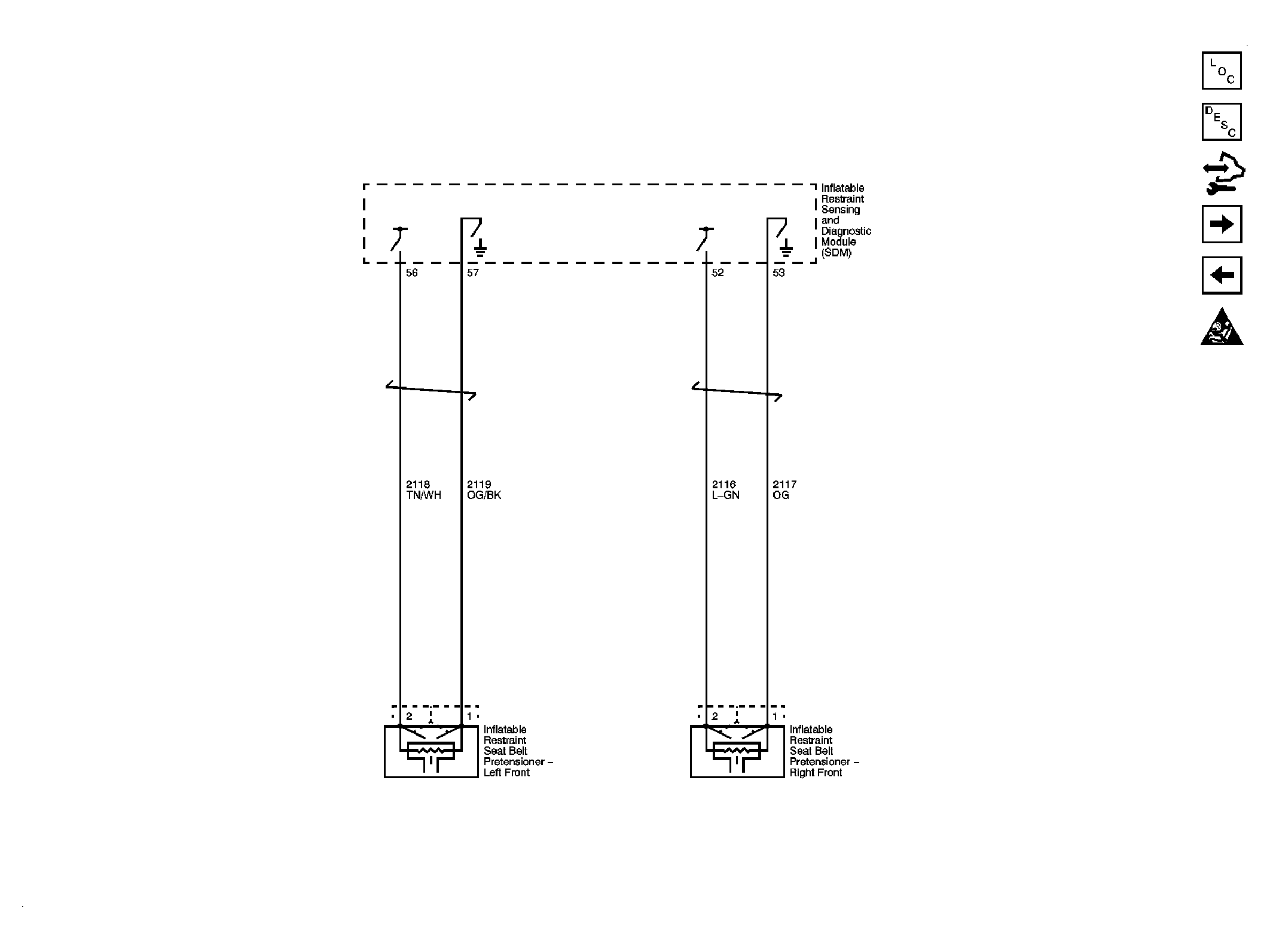

Fig 3: Seat Belt Pretensioners - Schematic

Courtesy of GENERAL MOTORS CORP.

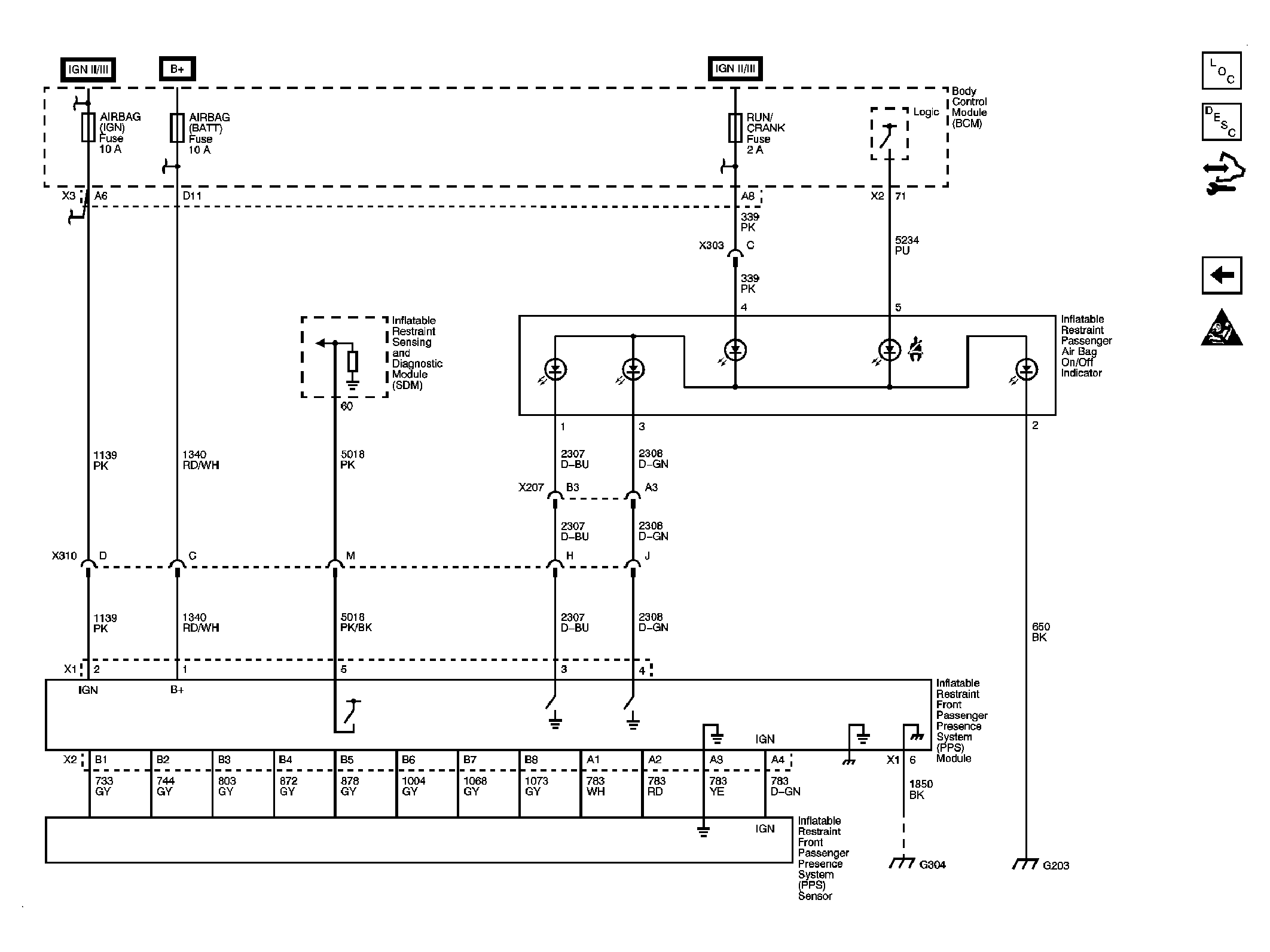

Fig 4: Passenger Presence System - Schematic

Courtesy of GENERAL MOTORS CORP.
