Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

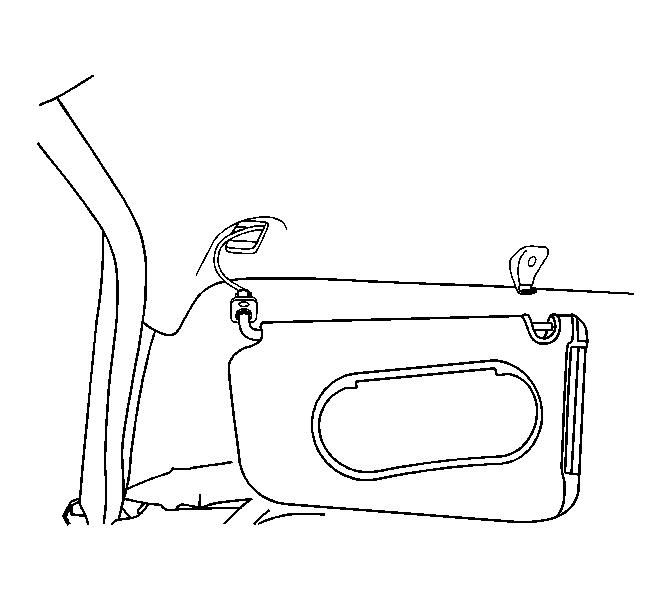

    Fig 1: View Of Cover From Fasteners
    GM1283402Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. NOTE: Refer to Fastener Notice .
  2. Position the sunshade and install the screws.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  3. Install the cover to the sunshade screws.
  4. Install the sunshade to the sunshade retainer.
