Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

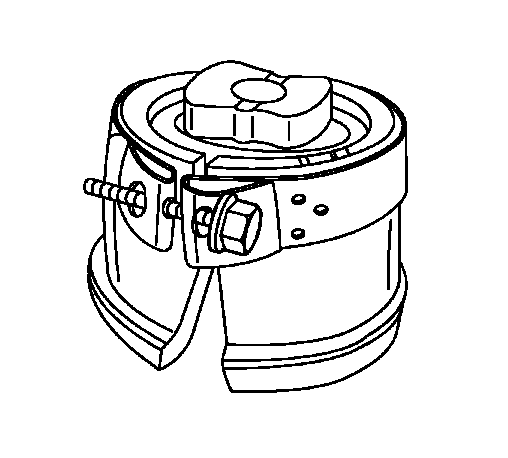

    Fig 1: View Of Clamp J-45725 On The Bushing
    GM1361419Courtesy of GENERAL MOTORS CORP.
  1. Install clamp J-45725  onto the bushing leaving about an 1/8 inch from the bottom of the bushing. See Special Tools .

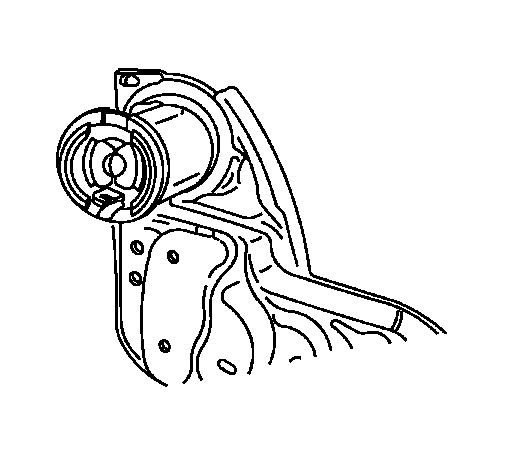

    2. Fig 2: Aligning Split Of Bushing
    GM1361422Courtesy of GENERAL MOTORS CORP.
  2. Align the split of the bushing to the front of the frame.

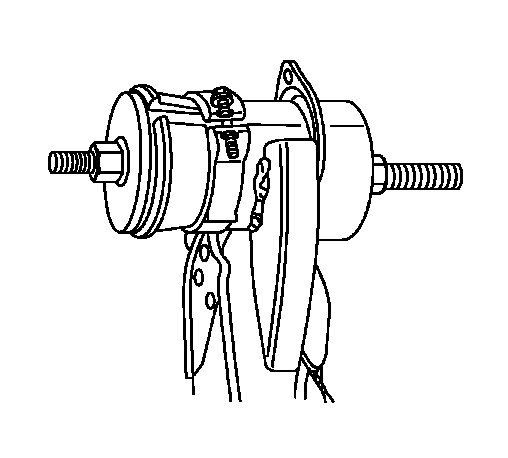

    3. Fig 3: Identifying Special Tools - J-45725
    GM1361424Courtesy of GENERAL MOTORS CORP.
  3. Using J-45725  install the bushing until the entire radius of the bushing is halfway recessed in the cradle. See Special Tools .

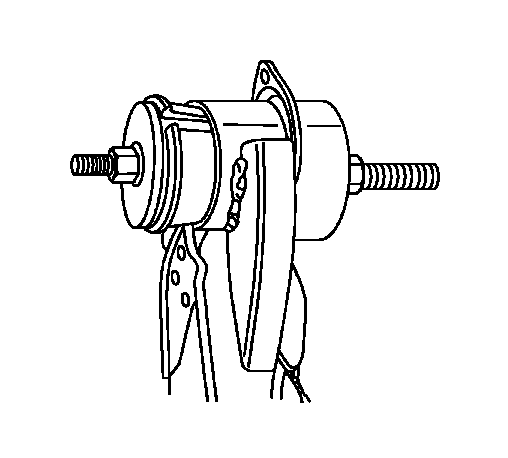

    4. Fig 4: View Of Clamp
    GM1361426Courtesy of GENERAL MOTORS CORP.
  4. Remove the J-45725  clamp. See Special Tools .

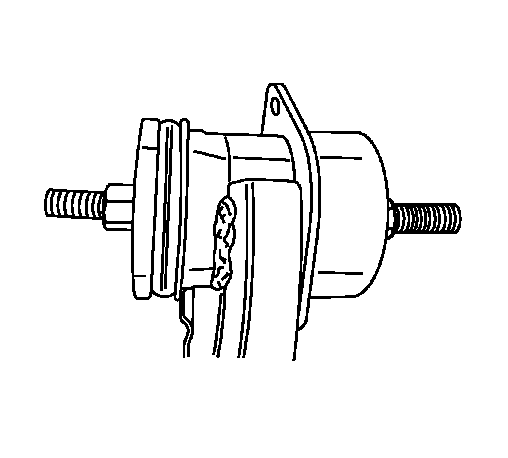

    5. Fig 5: Using J-45725 To Seat Lip Of The Bushing To The Bottom Of The Cradle Assembly
    GM1361427Courtesy of GENERAL MOTORS CORP.
  5. Install the bushing using the J-45725  until the lip of the bushing is fully seated to the bottom of the cradle assembly. See Special Tools .
  6. Install the frame. Refer to Frame Replacement (W/LZ9, LZ4)  or Frame Replacement (W/L61) .
