Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

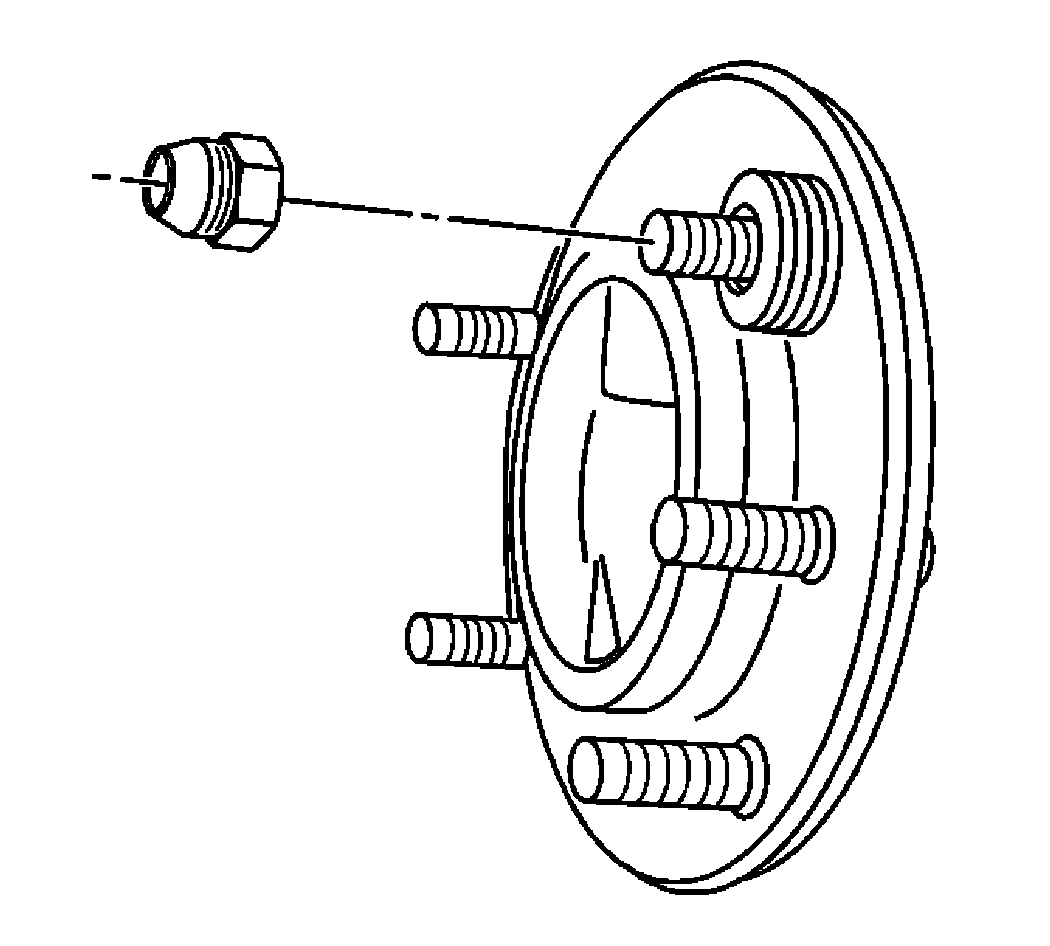

    Fig 1: Installing Lug Nut
    GM690039Courtesy of GENERAL MOTORS CORP.
  1. Position the wheel stud in the axle flange.
  2. Install the 4 washers and the lug nut to the stud.
  3. Tighten the lug nut until the stud fully seats.
  4. Remove the lug nut and the washers.

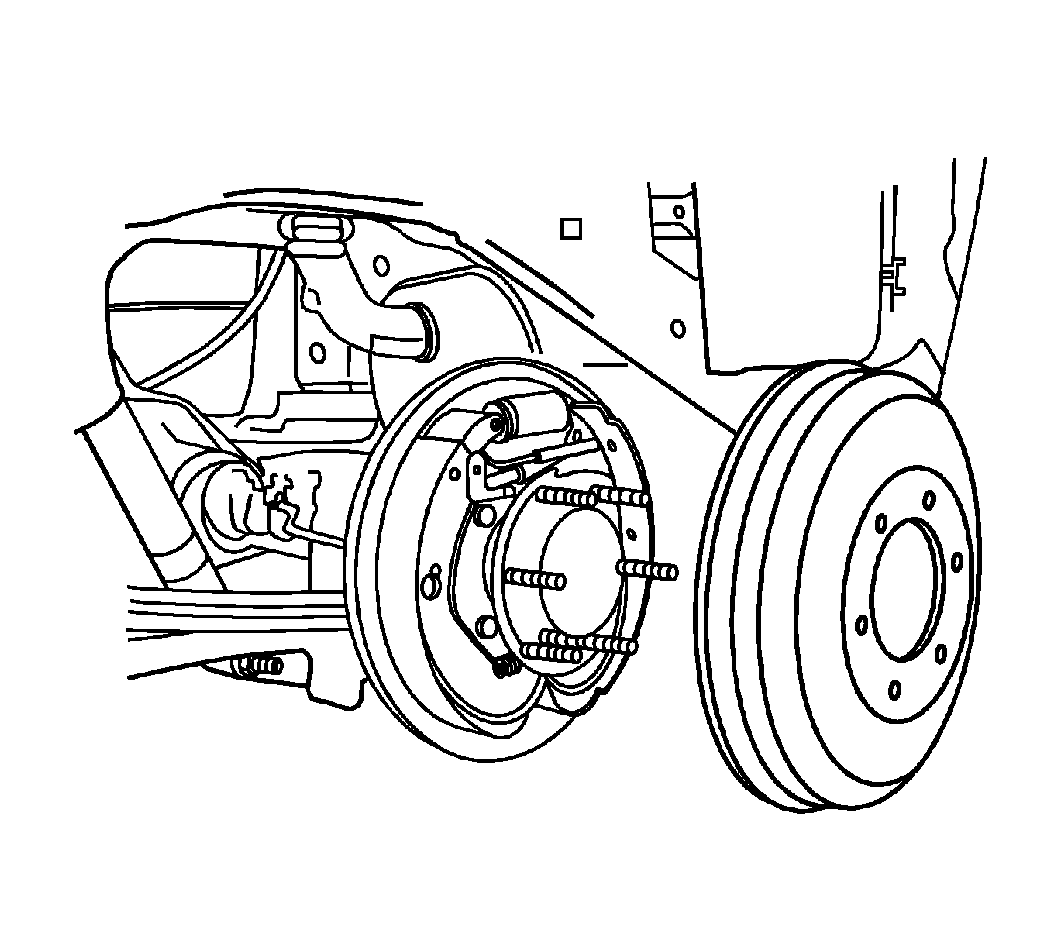

    5. Fig 2: View Of Rear Brake Drum
    GM1254558Courtesy of GENERAL MOTORS CORP.
  5. Install the rear brake drum. Refer to Brake Drum Replacement .
  6. Lower the vehicle.
