Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

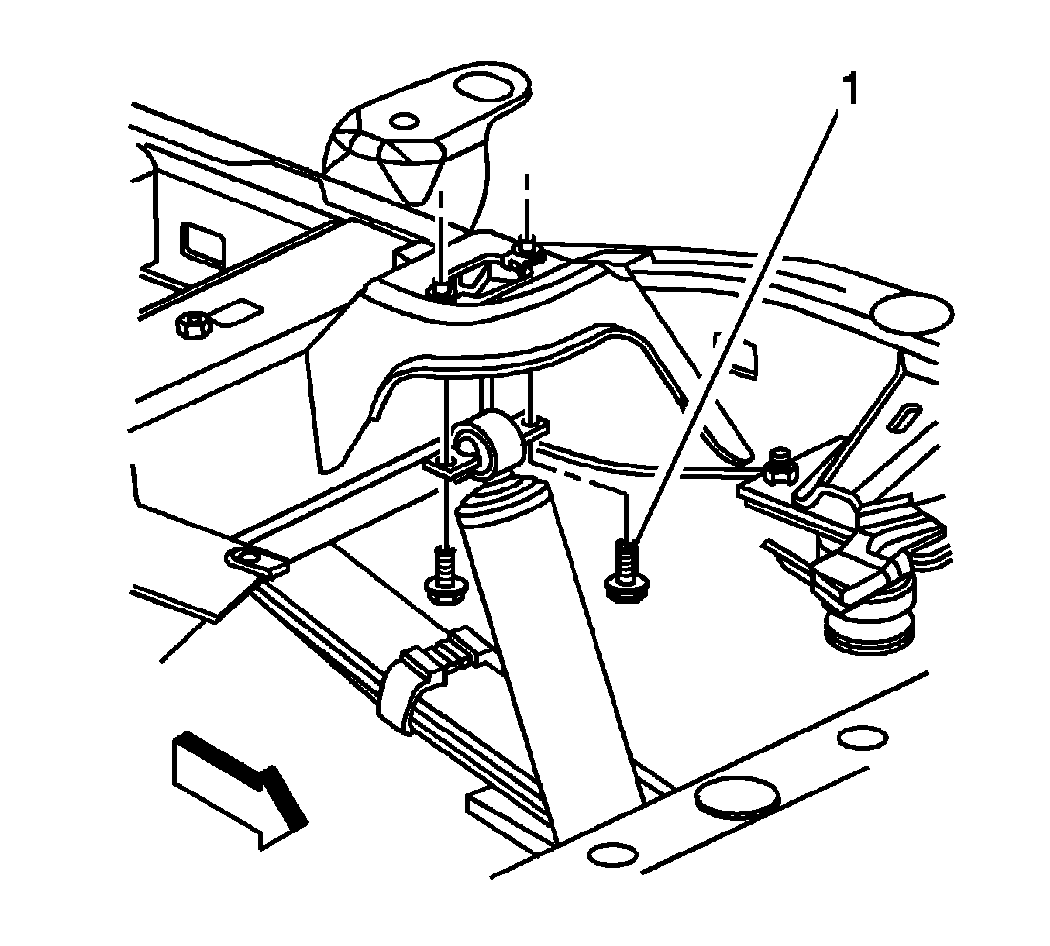

    Fig 1: View Of Upper Absorber Bolts
    GM941579Courtesy of GENERAL MOTORS CORP.
  1. Install the absorber.
    2. NOTE: Refer to Fastener Notice .
  2. Install the upper absorber bolts.

    Tighten:  Tighten the bolts to 35 N.m (26 lb ft).

    3. Fig 2: View Of Lower Shock Absorber Mounting Bolt & Nut
    GM941550Courtesy of GENERAL MOTORS CORP.
  3. Install the lower absorber bolt and nut.

    Tighten:  Tighten the nut to 95 N.m (70 lb ft).

  4. Remove the rear axle support.
  5. Lower the vehicle.
