Sunroof Switch Replacement

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

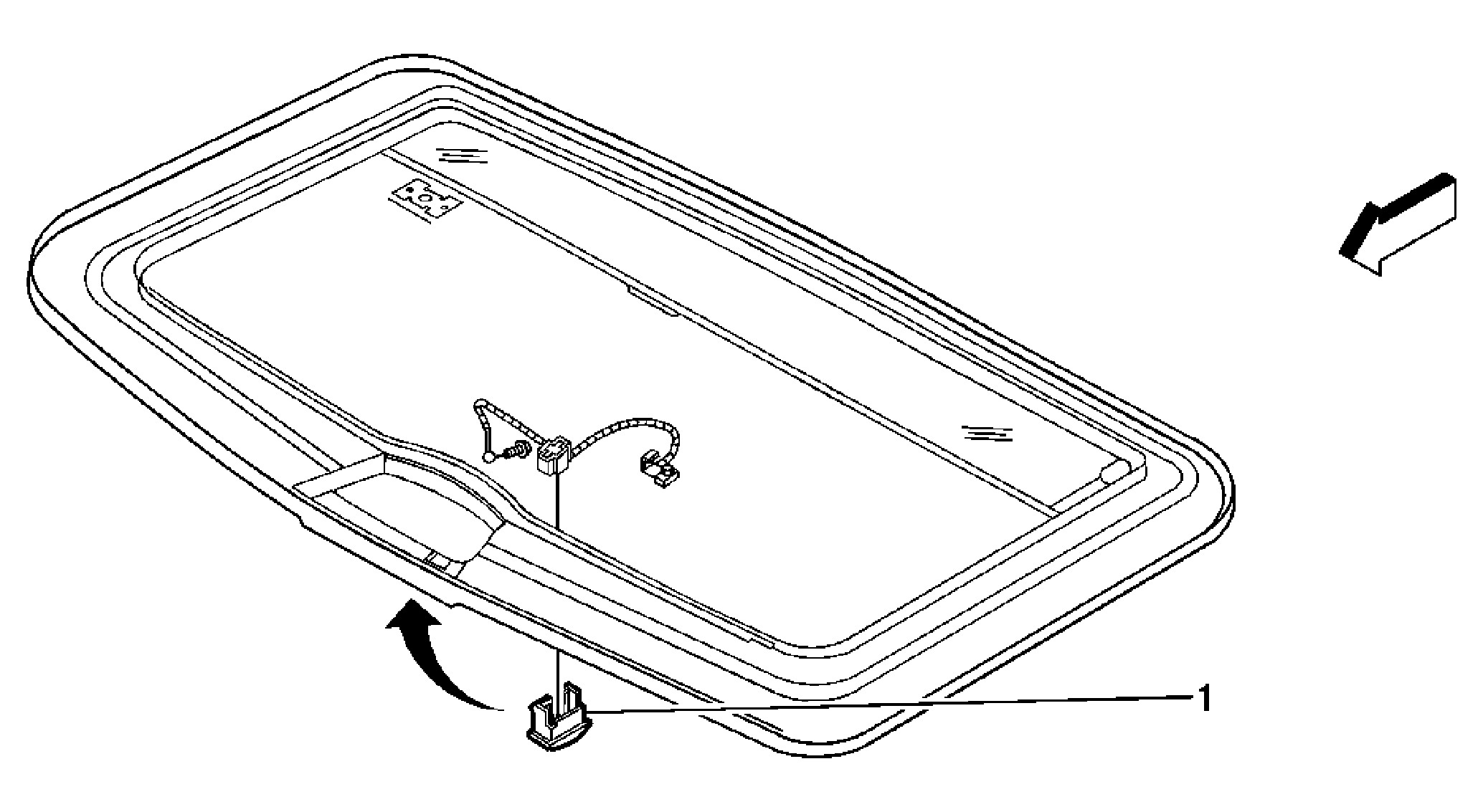

Fig 1: View Of Sunroof Switch, Cover, Shade & Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Open the sunshade to the full open position.
1	Sunroof Switch Tip: Using a suitable tool, work the sunroof switch loose from the sunroof front trim cover. Disconnect the electrical connector. Verify operations of the sunroof window.
