Windshield Wiper/Washer Switch Assembly

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

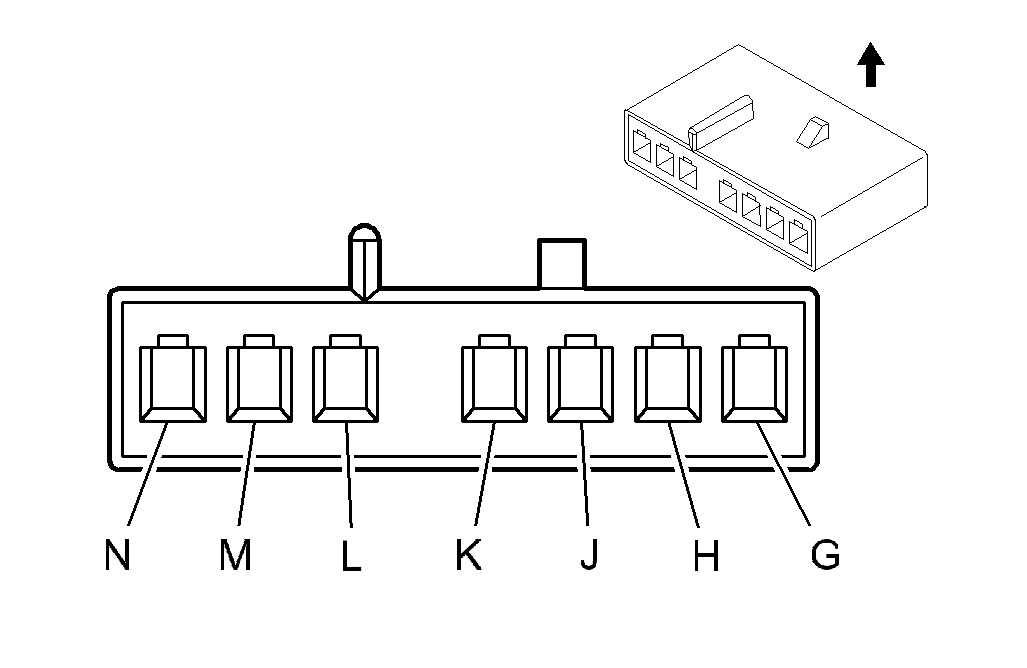

Fig 1: Windshield Wiper/Washer Switch Assembly Connector End View
GM1331432Courtesy of GENERAL MOTORS CORP.
Windshield Wiper/Washer Switch Assembly

Pin Wire Circuit Function
G - - Not Used
H 0.35 D-BU 477 Windshield Wiper Switch Signal (1)
J - - Not Used
K 0.35 PU 92 Windshield Wiper Motor High Speed Control
L 0.35 WH 1538 Headlamp On With Wipers Signal
M 0.35 YE 43 Accessory Voltage
N 0.35 GY 478 Windshield Wiper Switch Signal (2)
Connector Part Information
  • OEM: 15339096
  • Service: See Catalog
  • Description: 7-Way F 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
