Memory Seat Module (MSM) X2 (A45)

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

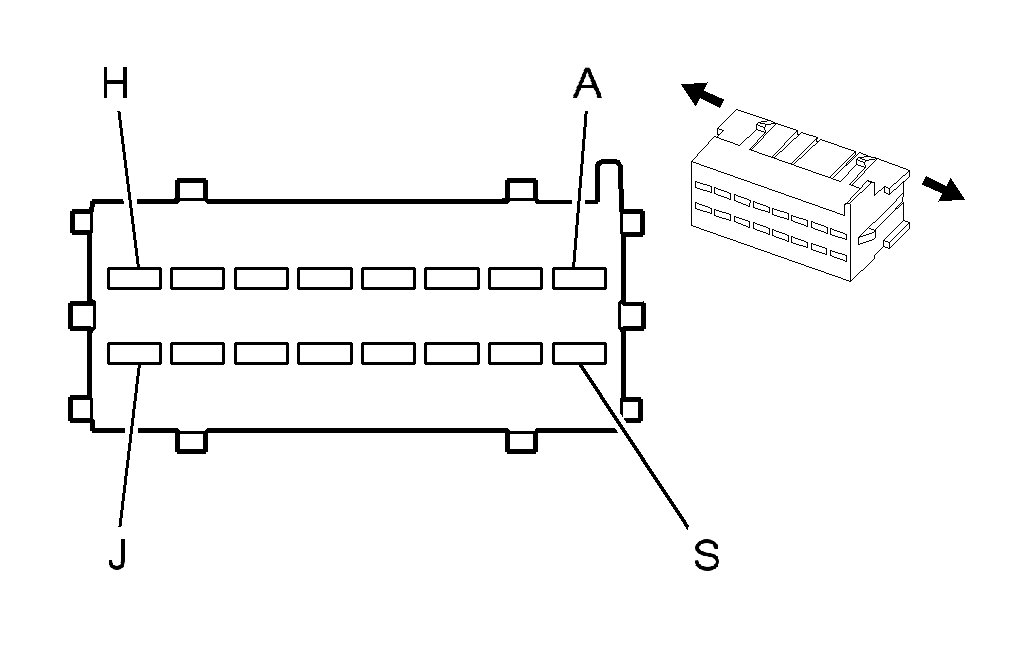

Fig 1: Memory Seat Module (MSM) X2 (A45) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	3 D-GN	286	Driver Power Seat Front Vertical Motor Up Control
B	0.35 YE	282	Driver Power Seat Rear Vertical Motor Up Control
C	3 L-BU	283	Driver Power Seat Rear Vertical Motor Down Control
D	3 TN	768	Driver Power Seat Lumbar Motor Up Control (AL2)
E	3 PK	2111	Steering Column Tilt Motor Up Control
F	3 D-BU	611	Driver Power Seat Lumbar Motor Forward Control (AL2)
G	0.35 L-GN	276	Driver Power Seat Recline Motor Forward Control
H	0.35 L-BU	277	Driver Power Seat Recline Motor Rearward Control
J	3 TN	285	Driver Power Seat Horizontal Motor Forward Control
K	3 L-GN	284	Driver Power Seat Horizontal Motor Rearward Control
L-M	-	-	Not Used
N	3 PK	610	Driver Power Seat Lumbar Motor Rearward Control (AL2)
P	-	-	Not Used
R	3 OG	2098	Steering Column Telescope Motor Forward
S	3 D-BU	287	Driver Power Seat Front Vertical Motor Down Control

Connector Part Information

OEM: 12129432
Service: 12129432
Description: 16-Way F Metri-Pack 280 Series, ACT (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
