Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

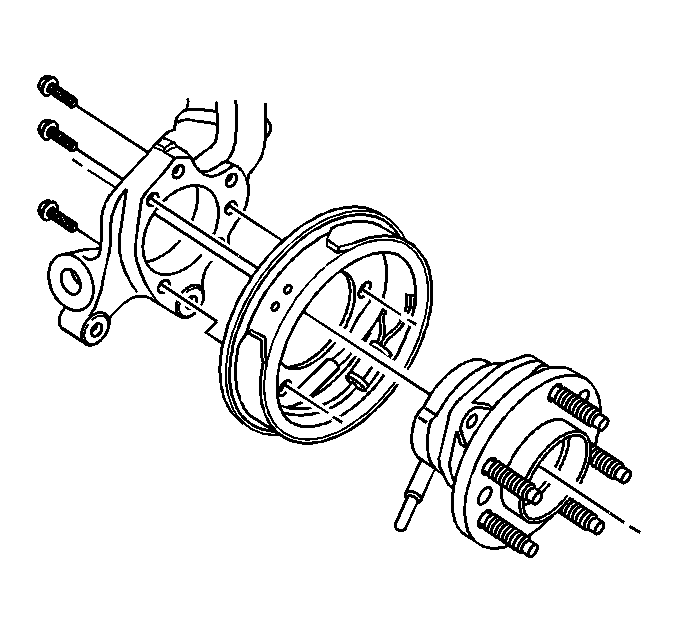

    Fig 1: Rear Wheel Bearing/Hub & Bolts
    GM783031Courtesy of GENERAL MOTORS CORP.
  1. Install the knuckle and backing plate to the wheel bearing/hub.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the wheel bearing/hub mounting bolts and tighten to 125 N.m (92 lb ft).
  3. Install the knuckle to the vehicle.

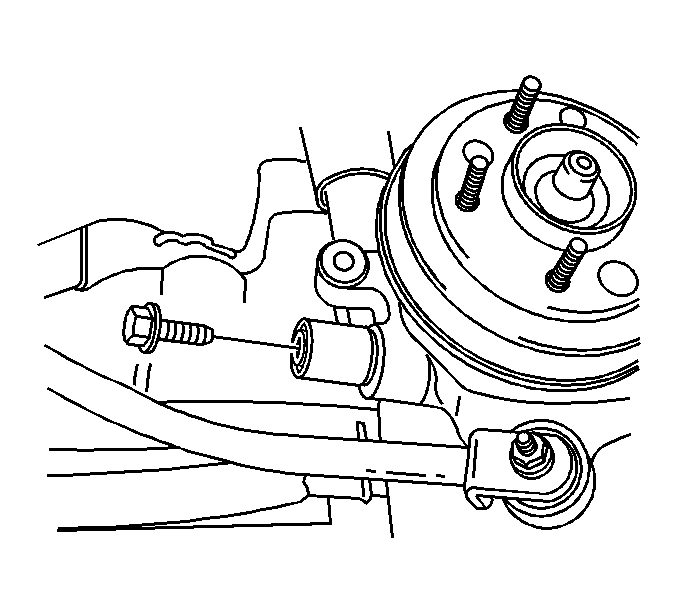

    4. Fig 2: Adjustment Link-To-Knuckle Mounting Bolt
    GM783090Courtesy of GENERAL MOTORS CORP.
    NOTE: Loosely install all fasteners before tightening.
  4. Install the adjustment link to knuckle mounting bolt and tighten to 160 N.m (118 lb ft).
    5. Fig 3: Trailing Arm-To-Knuckle Mounting Bolt & Nut
    GM783092Courtesy of GENERAL MOTORS CORP.
  5. Install the trailing arm to knuckle mounting bolt and nut and tighten to 170 N.m (125 lb ft).
    6. Fig 4: Lower Shock Mounting Bolt
    GM783074Courtesy of GENERAL MOTORS CORP.
  6. Install the lower shock and mounting bolt and tighten to 150 N.m (111 lb ft).
    7. Fig 5: Lower Control Arm-To-Knuckle Mounting Bolt
    GM783094Courtesy of GENERAL MOTORS CORP.
  7. Install the lower control arm to knuckle mounting bolt.
    8. Fig 6: Upper Ball Joint Mounting Nut
    GM802238Courtesy of GENERAL MOTORS CORP.
  8. Connect the upper ball joint to the knuckle.
  9. Install the upper ball joint mounting nut.
  10. Install the parking brake cable bracket to the knuckle. Refer to Park Brake Cable Mounting Bracket Replacement .
  11. Remove the jack.
    12. Fig 7: Antilock Brake System Sensor Harness Connector
    GM767222Courtesy of GENERAL MOTORS CORP.
  12. Connect the ABS sensor electrical connector to the backing plate.
  13. Connect the ABS sensor electrical connector.

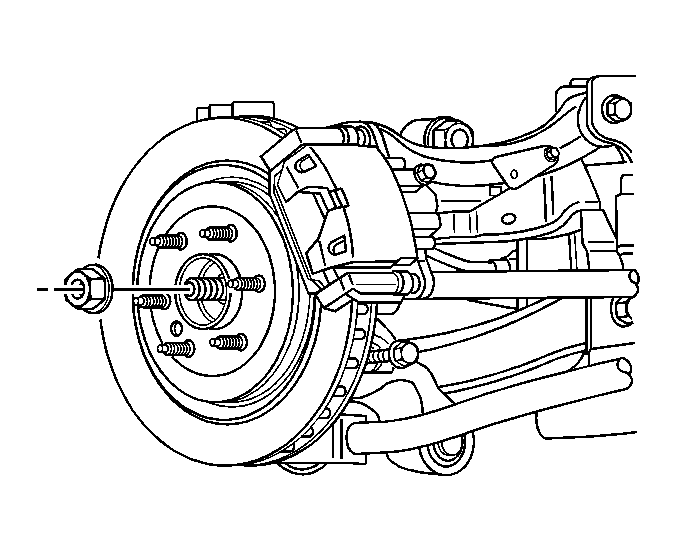

    14. Fig 8: Wheel Driveshaft Nut
    GM925269Courtesy of GENERAL MOTORS CORP.
  14. Install a new wheel drive shaft nut and tighten to 160 N.m (118 lb ft).
  15. Install the brake rotor. Refer to Rear Brake Rotor Replacement (JE5, JL9) or Rear Brake Rotor Replacement (J56) .
  16. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  17. Lower the vehicle.
