Removal Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Brake Fluid Irritant Caution .
CAUTION: Refer to Brake Dust Caution .
NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice .
NOTE: Refer to Brake Caliper Notice .
    Fig 1: View Of Half-Full Master Cylinder Reservoir
    GM787456Courtesy of GENERAL MOTORS CORP.
  1. If the brake fluid is midway between the maximum-full and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.
    2. Fig 2: View Of Full Master Cylinder Reservoir MAX And MIN Marks
    GM787455Courtesy of GENERAL MOTORS CORP.
  2. If the brake level is higher than midway between the maximum-full and minimum allowable level, remove the brake fluid with the appropriate tool to the midway point before proceeding.
  3. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  4. Using denatured alcohol, clean the front caliper assembly.

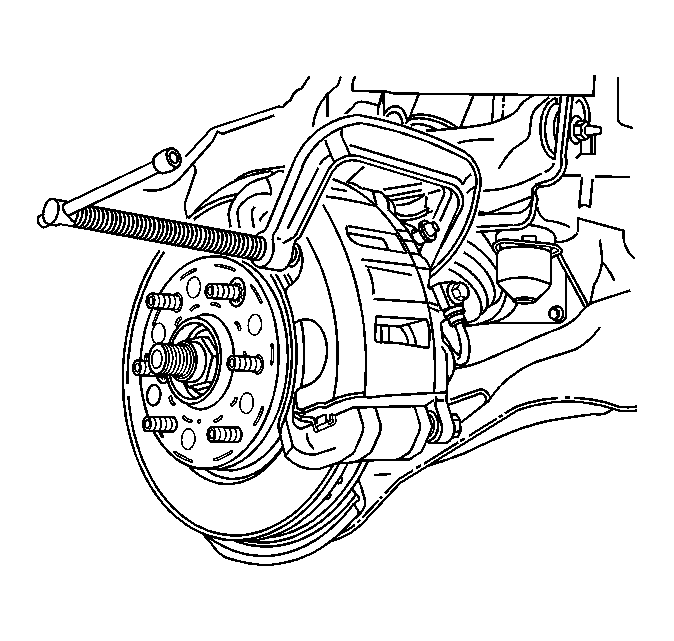

    5. Fig 3: Compressing Front Caliper Pistons
    GM820903Courtesy of GENERAL MOTORS CORP.
  5. Install a large C-clamp over the top of the brake caliper housing and against the back of the of the outboard brake pad.
  6. Slowly tighten the C-clamp until the pistons are fully seated in the brake caliper bore.
  7. Remove the C-clamp from the brake caliper.
    8. Fig 4: Lower Mounting Bolt Removed From Guide Pin
    GM786430Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: It is not necessary to remove the slide pins to remove the brake pads.
  8. Remove the lower brake caliper mounting bolt.
    9. Fig 5: View Of Brake Caliper Rotated Upward
    GM1241479Courtesy of GENERAL MOTORS CORP.
  9. Rotate the brake caliper upward until it stops on the brake caliper mounting bracket.
    10. Fig 6: View Of Inboard Brake Pad
    GM1241371Courtesy of GENERAL MOTORS CORP.
  10. Remove the inboard brake pad.
    11. Fig 7: View Of Outboard Brake Pad
    GM1241369Courtesy of GENERAL MOTORS CORP.
  11. Remove the outboard brake pad.
    12. Fig 8: View Of Brake Pad Retaining Clips
    GM1241374Courtesy of GENERAL MOTORS CORP.
  12. Remove the brake pad shims from the mounting bracket and discard.
