Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

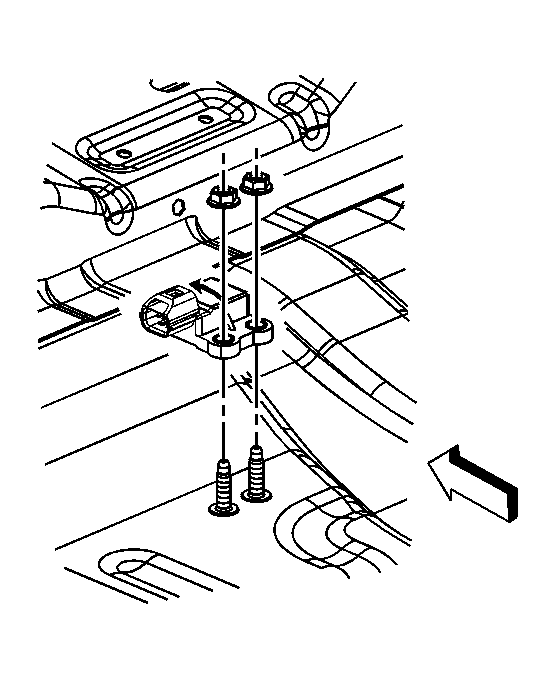

    Fig 1: View Of Longitudinal Accelerometer
    GM1277052Courtesy of GENERAL MOTORS CORP.
  1. Install the sensor to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the 2 retaining nuts.

    Tighten:  Tighten the screws to 9 N.m (80 lb in).

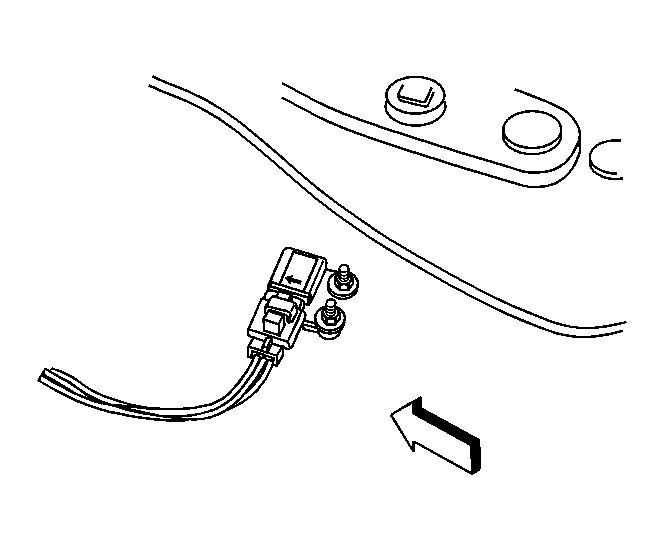

    3. Fig 2: View Of Longitudinal Accelerometer Electrical Connector
    GM1277053Courtesy of GENERAL MOTORS CORP.
  3. Install the electrical connector to the sensor.
  4. Install the left split bench or bucket seat. Refer to Front Seat Replacement - Bucket or Split Bench Seat Replacement .
