Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

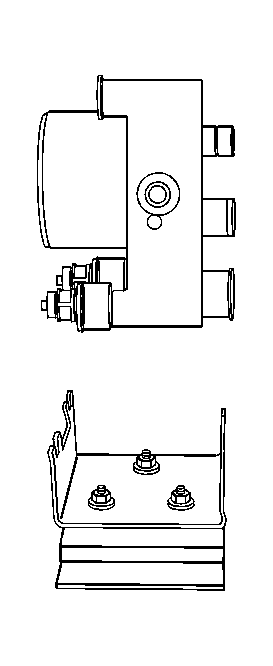

    Fig 1: View Of BPMV & Mounting Bracket
    GM1384684Courtesy of GENERAL MOTORS CORP.
  1. Install the BPMV to the mounting bracket.
    2. NOTE: Refer to Fastener Notice .
  2. Tighten the mounting nuts.

    Tighten:  Tighten the mounting nuts to 9 N.m (80 lb in).

  3. Install the EBCM assembly. Refer to Electronic Brake Control Module Replacement .
  4. Bleed the system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
