Instrument Panel Compartment Lamp Switch Replacement
WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

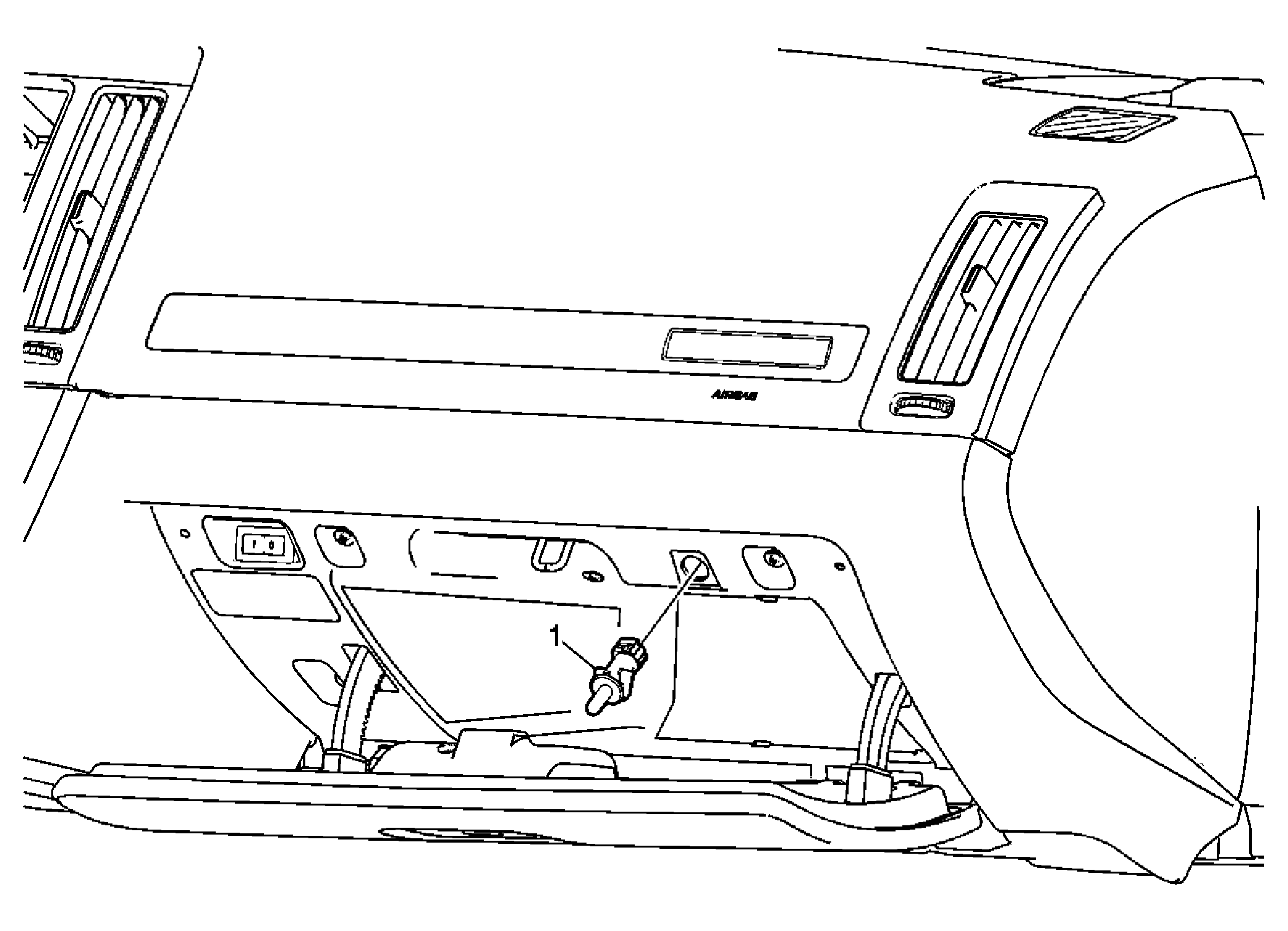

| Callout |
Component Name |
| 1 |
Instrument Panel Compartment Lamp Switch
Procedure:
Use a flat bladed plastic trim tool in order to unsnap the switch from the instrument panel compartment assembly. |
