Hazard Warning Switch Replacement

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

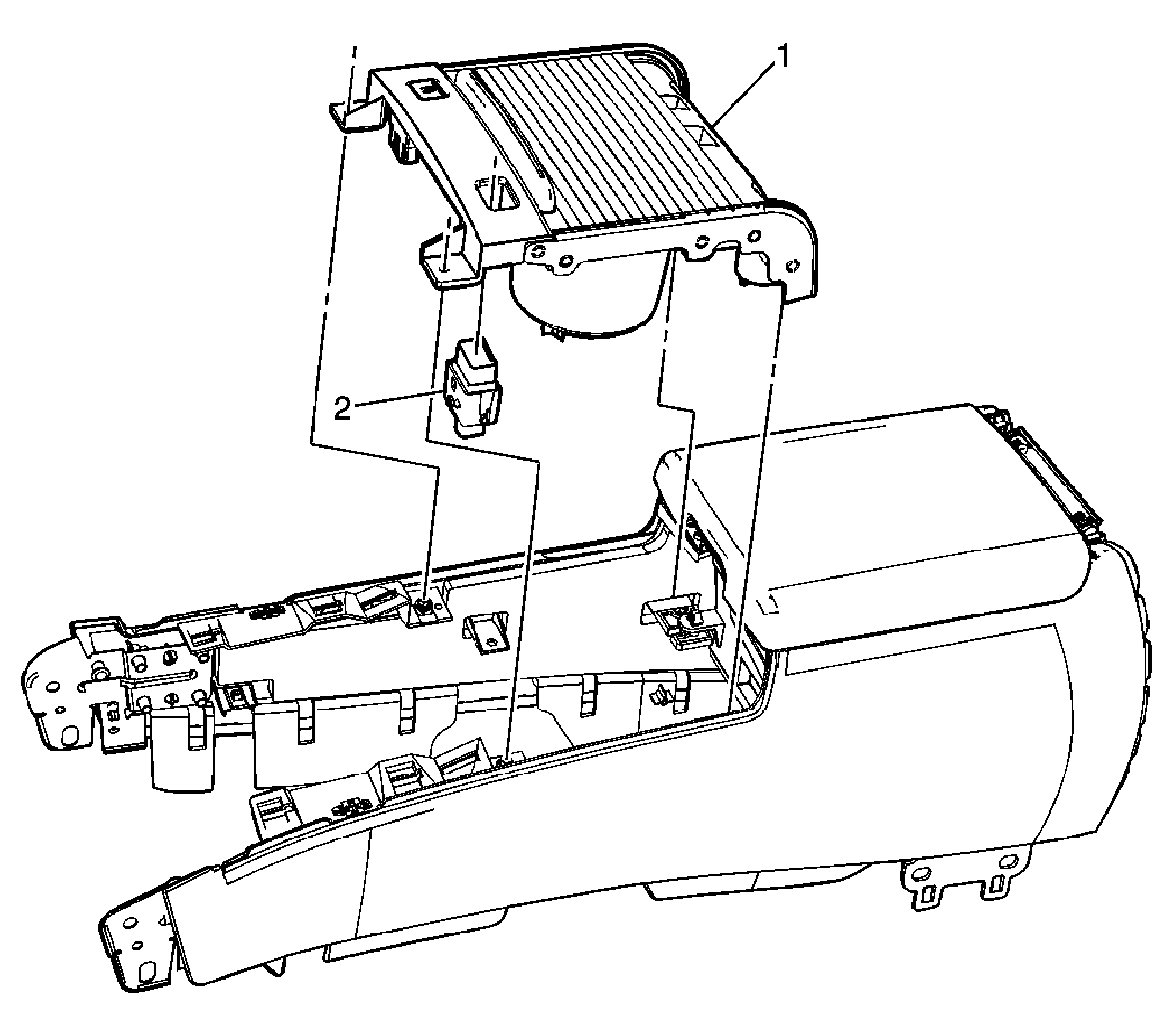

Fig 1: View of Hazard Warning Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the Front Floor Console. Refer to Front Floor Console Replacement
1	Front Floor Console Cup Holder Refer to Front Floor Console Cup Holder Replacement .
2	Hazard Warning Switch Procedure Disconnect electrical connectors. Unsnap Hazard switch from cup holder.

Callout

Component Name

Preliminary Procedure:
Remove the Front Floor Console. Refer to Front Floor Console Replacement

Front Floor Console Cup Holder
Refer to Front Floor Console Cup Holder Replacement .

Hazard Warning Switch

Procedure

Disconnect electrical connectors.
Unsnap Hazard switch from cup holder.
