Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

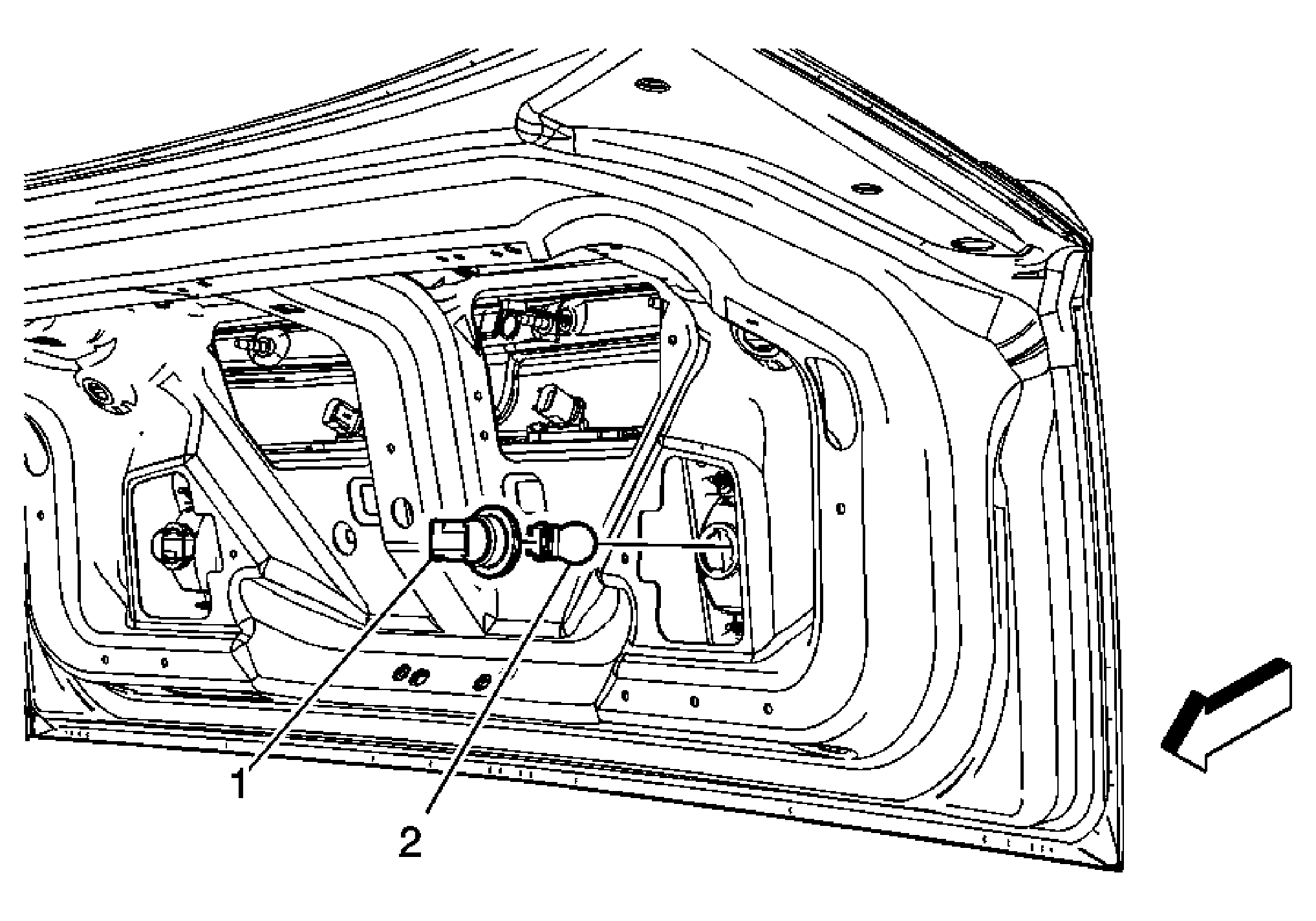

Fig 1: View of Backup Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Back Up Lamp Bulb Socket WARNING: Refer to Halogen Bulb Warning . Tip: Disconnect the electrical connector, rotate and remove the bulb socket.
2	Back Up Lamp Bulb Tip: Pull the bulb straight out of the socket assembly.
